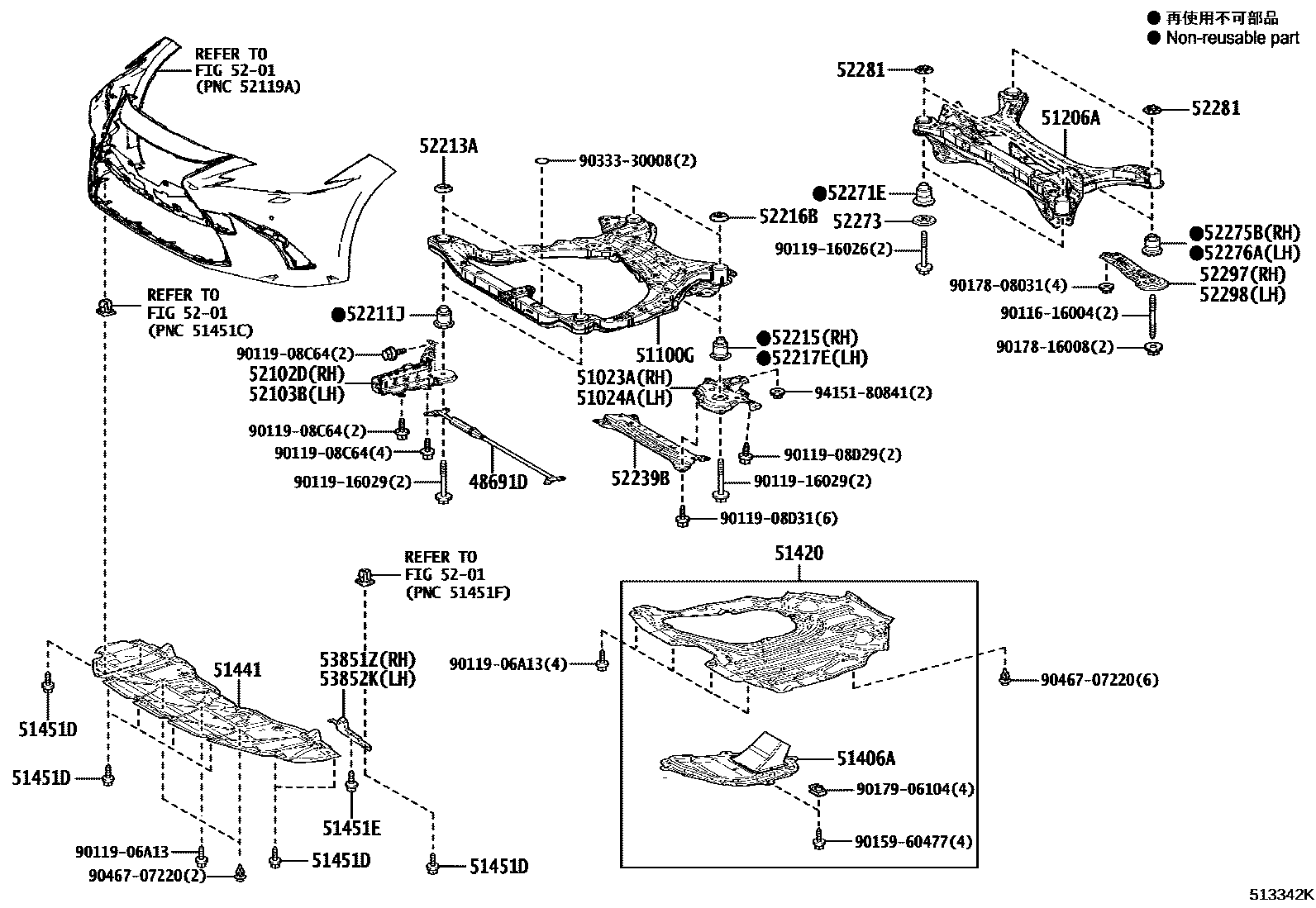

SUSPENSION CROSSMEMBER & UNDER COVER

48691DDAMPER, SUSPENSION TOWER

main48691-33040iAXZH1#201810-202108

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-33080iAXZH10201810-201912

main51023-33081iAXZH11202108

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-33090iAXZH1#201810-202108

51100GFRAME ASSY, FRONT

main51100-33130iAXZH11202201

main51100-33170iAXZH1#201810-202108

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33120iAXZH1#201810-202108

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-33010iAXZH11202108

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-33030iAXZH1#201810-202108

51441COVER, ENGINE UNDER, NO.1

main51441-33250iAXZH11202108

51451DSCREW, NO.1

main90159-60477×8iAXZH1#201810-202108

51451ESCREW, NO.2

main90159-60477×4iAXZH1#201810-202108

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-33020supersedes 52102-33010iAXZH1#201810-202108

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-33020supersedes 52103-33010iAXZH1#201810-202108

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33100×2iAXZH1#201810-202108

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33100×2iAXZH1#201810-202108

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33110iAXZH1#201810-202108

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33090×2iAXZH1#201810-202108

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33040iAXZH1#201810-202108

52239BPLATE, BODY MOUNTING

main52239-33030iAXZH1#201810-202108

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-33080×2iAXZH1#201810-202108

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030×2iAXZH1#201810-202108

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-33090iAXZH1#201810-202108

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-33020iAXZH1#201810-202108

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020×4iAXZH1#201810-202108

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-33030iAXZH1#201810-202108

main57075-33010iAXZH11202108-202112

main57075-33011iAXZH11202201-202303

main57075-33012iAXZH11202304

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-33030iAXZH1#201810-202108

main57076-33010iAXZH11202108-202112

main57076-33011iAXZH11202201-202303

main57076-33012iAXZH11202304

53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-33090iAXZH1#201810-202108

53852KPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-33090iAXZH1#201810-202108

9011616004

main90116-16004

9011906A13

main90119-06A13

9011908C64

main90119-08C64

9011908D29

main90119-08D29

9011908D31

main90119-08D31

9011916026

main90119-16026

9011916029

main90119-16029

9015960477

main90159-60477

9017808031

main90178-08031

9017816008

main90178-16008

9017906104

main90179-06104

9033330008

main90333-30008

9046707220

main90467-07220

9415180841

main94151-80841

42 parts on this diagram · 1 diagram in section
