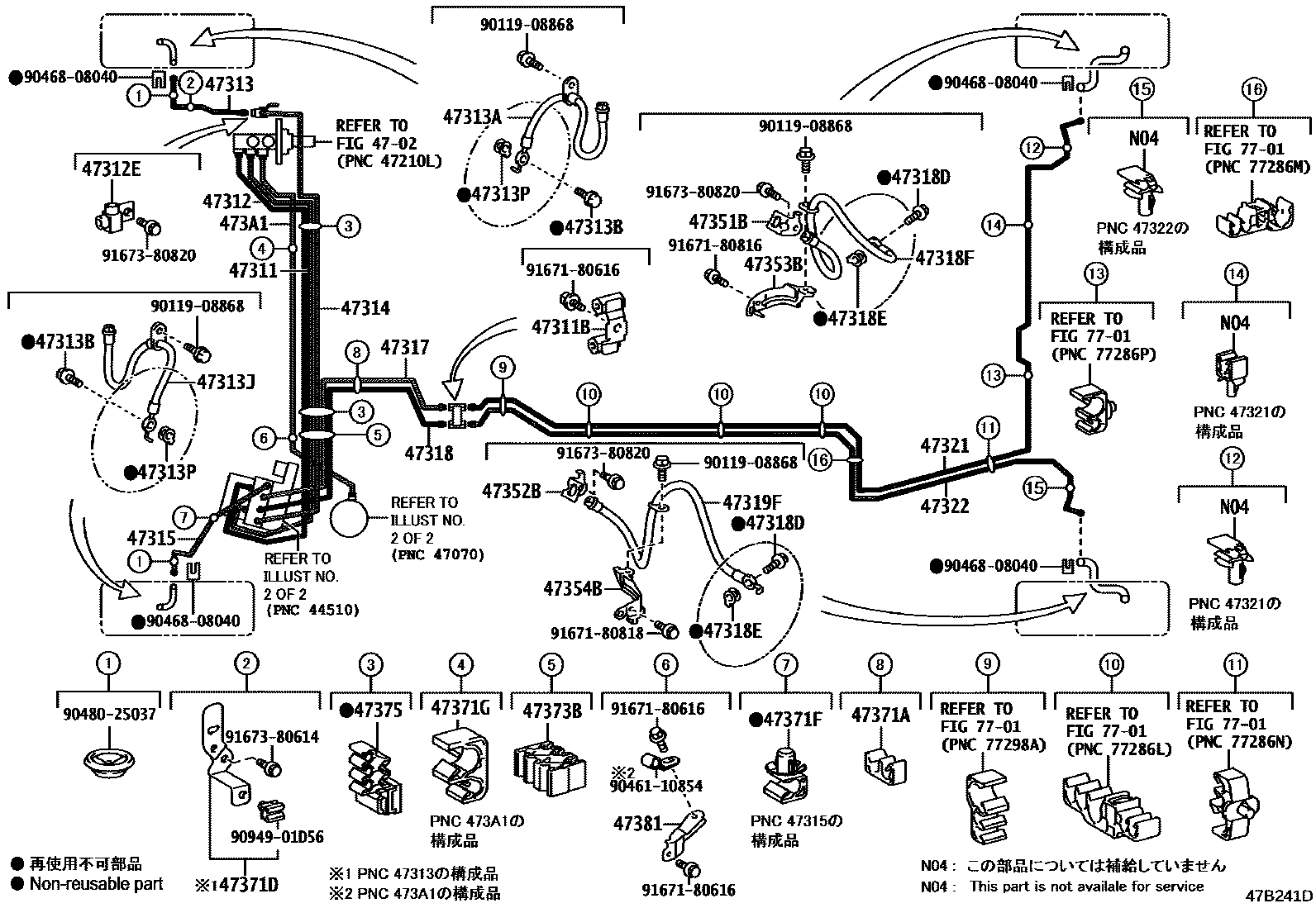

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47371DCLAMP, BRAKE TUBE, NO.8
47371FCLAMP, BRAKE TUBE, NO.10
47371GCLAMP, BRAKE TUBE, NO.11
47373BCLAMP, BRAKE TUBE, NO.3
47375CLAMP, BRAKE TUBE, NO.5
47381BRACKET, BRAKE TUBE CLAMP NO.1
473A1TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER
7701FUEL TANK & TUBE
9011908868
main90119-08868
9046110854
main90461-10854
9046808040
main90468-08040
9048025037
main90480-25037
9094901D56
main90949-01D56
9167180616
main91671-80616
9167180816
main91671-80816
9167180818
main91671-80818
9167380614
main91673-80614
9167380820
main91673-80820
43 parts on this diagram · 2 diagrams in section
