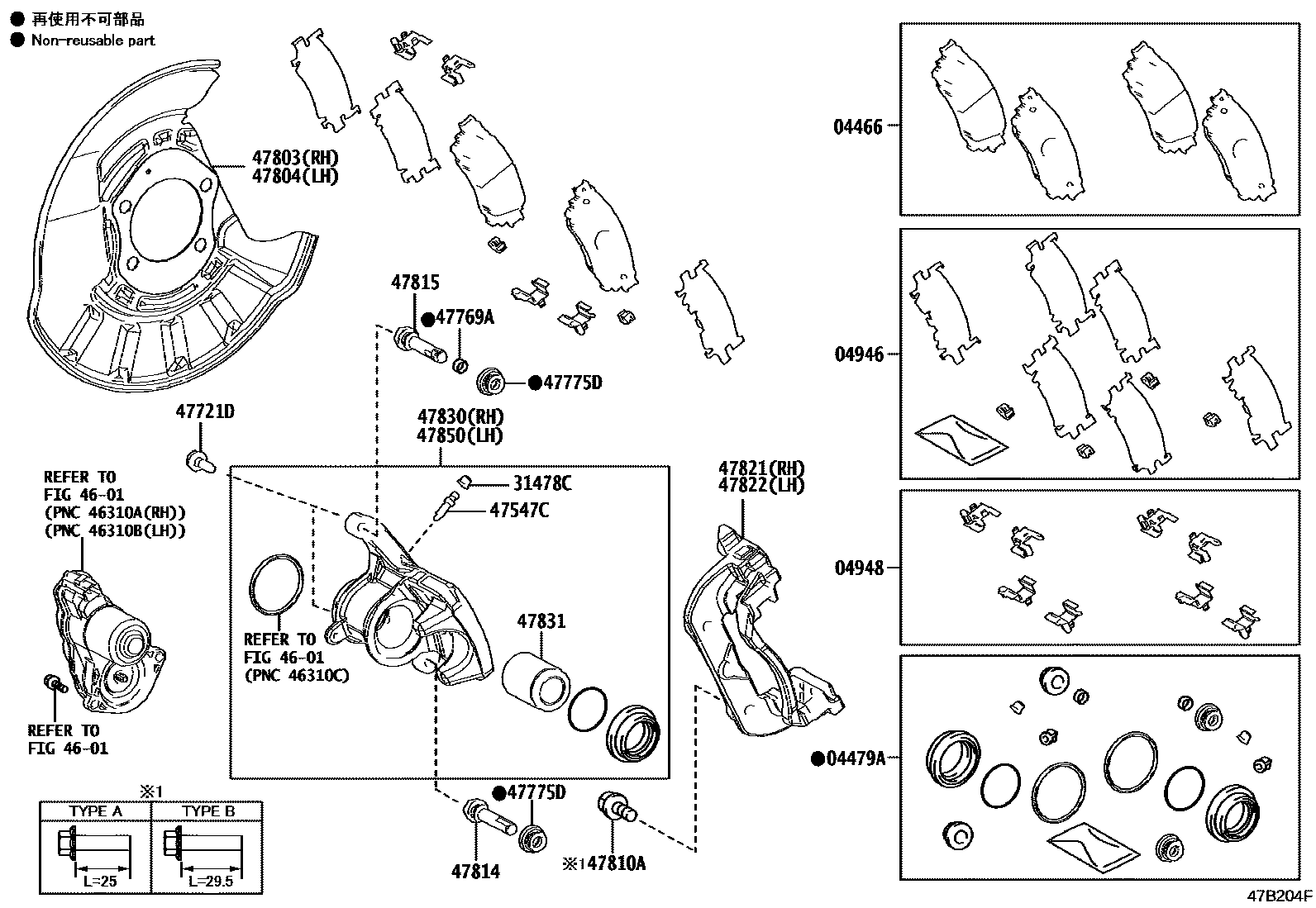

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33220iAXZH1#201810-202108

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33390iAXZH1#201810-202108

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33090iAXZH1#201810-202108

04948FITTING KIT, DISC BRAKE, REAR

main04948-33060iAXZH1#201810-202108

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAXZH1#201810-202108

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAXZH1#201810-202108

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iAXZH1#201810-202108

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iAXZH1#201810-202108

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270×4iAXZH1#201810-202108

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-33010iAXZH1#201810-202108

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-33010iAXZH1#201810-202108

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iAXZH1#202001-202108

main90105-12208×4iAXZH1#202001-202108

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iAXZH1#201810-202108

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iAXZH1#201810-202108

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iAXZH1#201810-202108

main47821-33290supersedes 47821-10030iAXZH11202108

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iAXZH1#201810-202108

main47822-33290supersedes 47822-10030iAXZH11202108

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33270iAXZH1#201810-202108

main47830-33290supersedes 47830-33270iAXZH11202108

47831PISTON, REAR DISC BRAKE

main47831-78010×2iAXZH11202108

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33270iAXZH1#201810-202108

main47850-33290supersedes 47850-33270iAXZH11202108

20 parts on this diagram · 1 diagram in section
