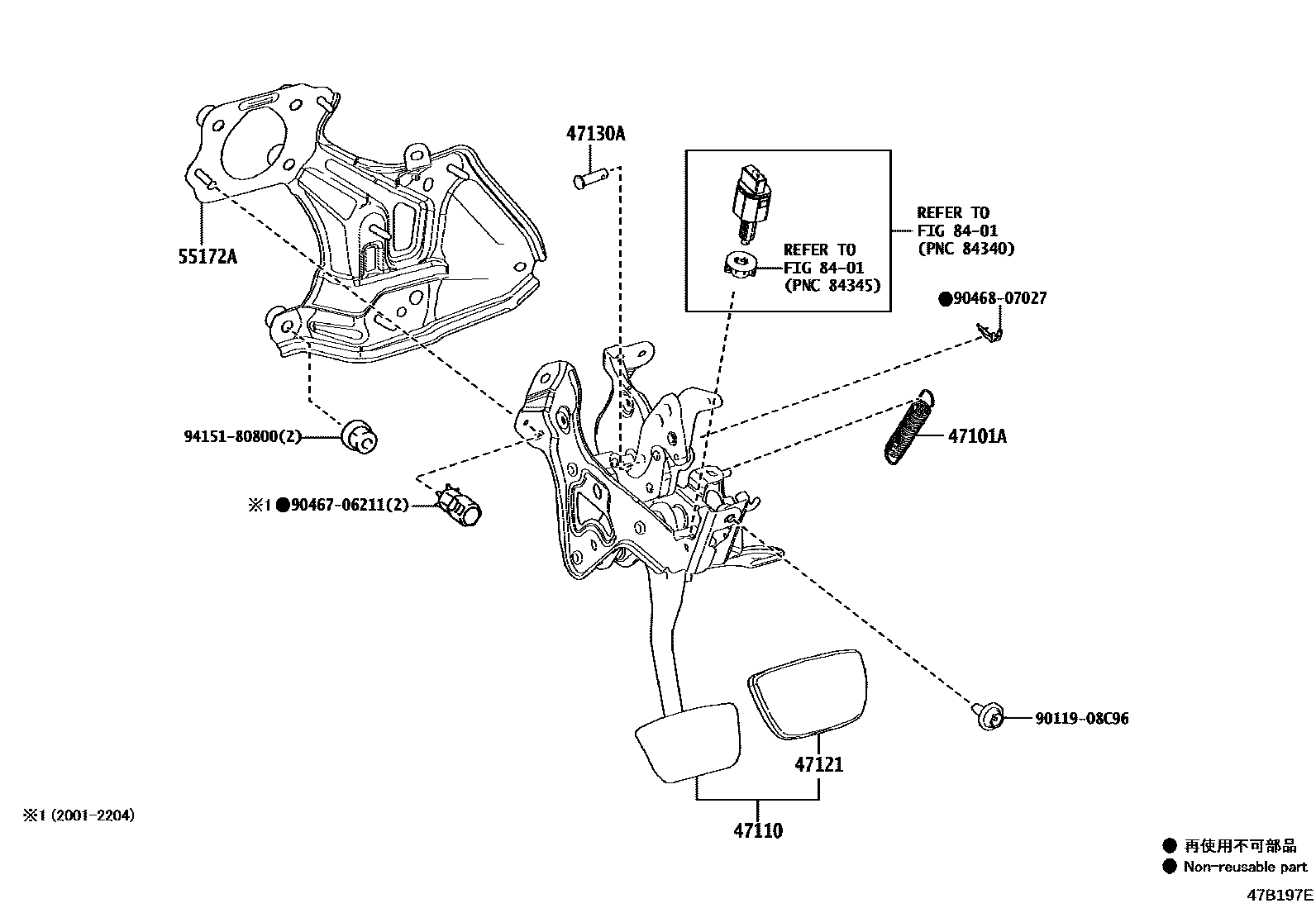

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXZH1#201810-202108

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33550supersedes 47110-33490iAXZH1#201810-202108

main47110-33551supersedes 47110-33491iAXZH11202108

47121PAD, BRAKE PEDAL

main47121-11010supersedes 47121-48010iAXZH1#201810-202108

main47121-11020supersedes 47121-62010iAXZH11202108

47130APIN, BRAKE PEDAL LINK

main90240-08078iAXZH1#201810-202108

55172ABASE, BRAKE PEDAL SUPPORT

main55172-33050iAXZH1#201810-202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
