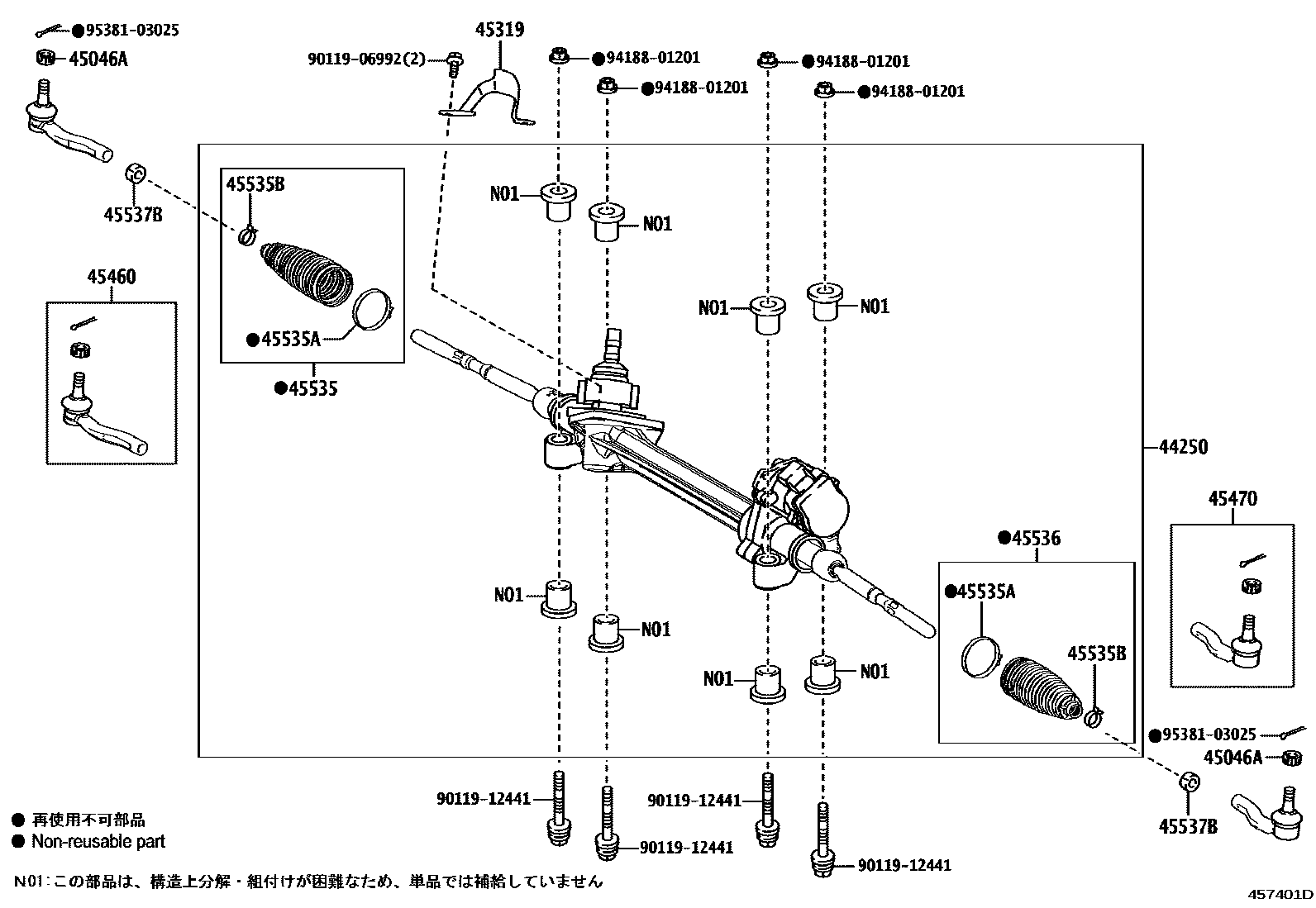

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33750supersedes 44250-33760iAXZH1#201810-202108

main44250-33751supersedes 44250-33761iAXZH11202108

main44250-33770iAXZH10201810-202007

main44250-33771iAXZH11202008-202108

main44250-33772supersedes 44250-33761iAXZH11202108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAXZH1#201810-202108

45319INSULATOR, STEERING GEAR HEAT

main45319-33030iAXZH1#201810-202108

45460ROD ASSY, TIE, RH

main45460-80008iAXZH1#201810-202108

45470ROD ASSY, TIE, LH

main45470-39365iAXZH1#201810-202108

45535BOOT, STEERING RACK, NO.1

main45535-29025iAXZH1#201810-202108

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06030×2iAXZH1#201810-202108

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iAXZH1#201810-202108

45536BOOT, STEERING RACK, NO.2

main45535-29025iAXZH1#201810-202108

45537BNUT, RACK END LOCK

main90178-16001×2iAXZH1#201810-202108

9011906992

main90119-06992

9011912441

main90119-12441

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
