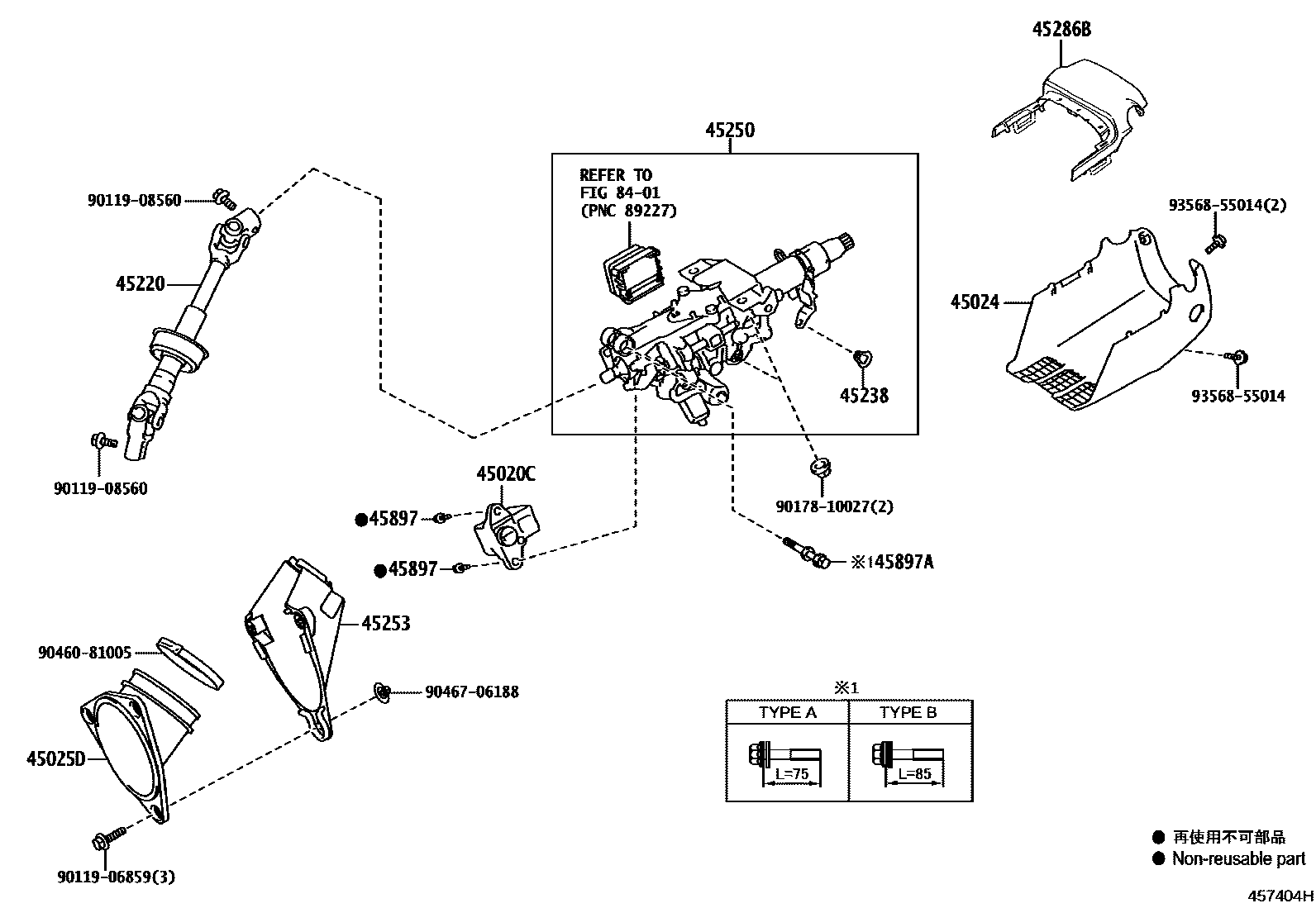

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33250iAXZH11202108-202208

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-11010-C1iAXZH1#201810-202108

BLACK,TRIM1#,2#

main45024-11010-E0iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33150iAXZH1#201810-202108

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33360iAXZH10201810-201908

main45220-33361iAXZH1#201909-202011

main45220-33362iAXZH11202012-202108

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXZH1#201810-202108

45250COLUMN ASSY, STEERING

main45250-33D60iAXZH10201810-202005

main45250-46050iAXZH11202208

main45250-48430iAXZH1#202006-202108

45253COVER, STEERING COLUMN HOLE

main45253-33100iAXZH1#201810-202108

45286BCOVER, STEERING COLUMN, UPR

main45286-11010-C1iAXZH1#201810-202108

BLACK,TRIM1#,2#

main45286-11010-E0iAXZH1#201810-202108

NOBLE BROWN,TRIM5#,6#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAXZH1#201810-202108

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXZH1#201810-202108

main90119-10981iAXZH1#201810-202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
