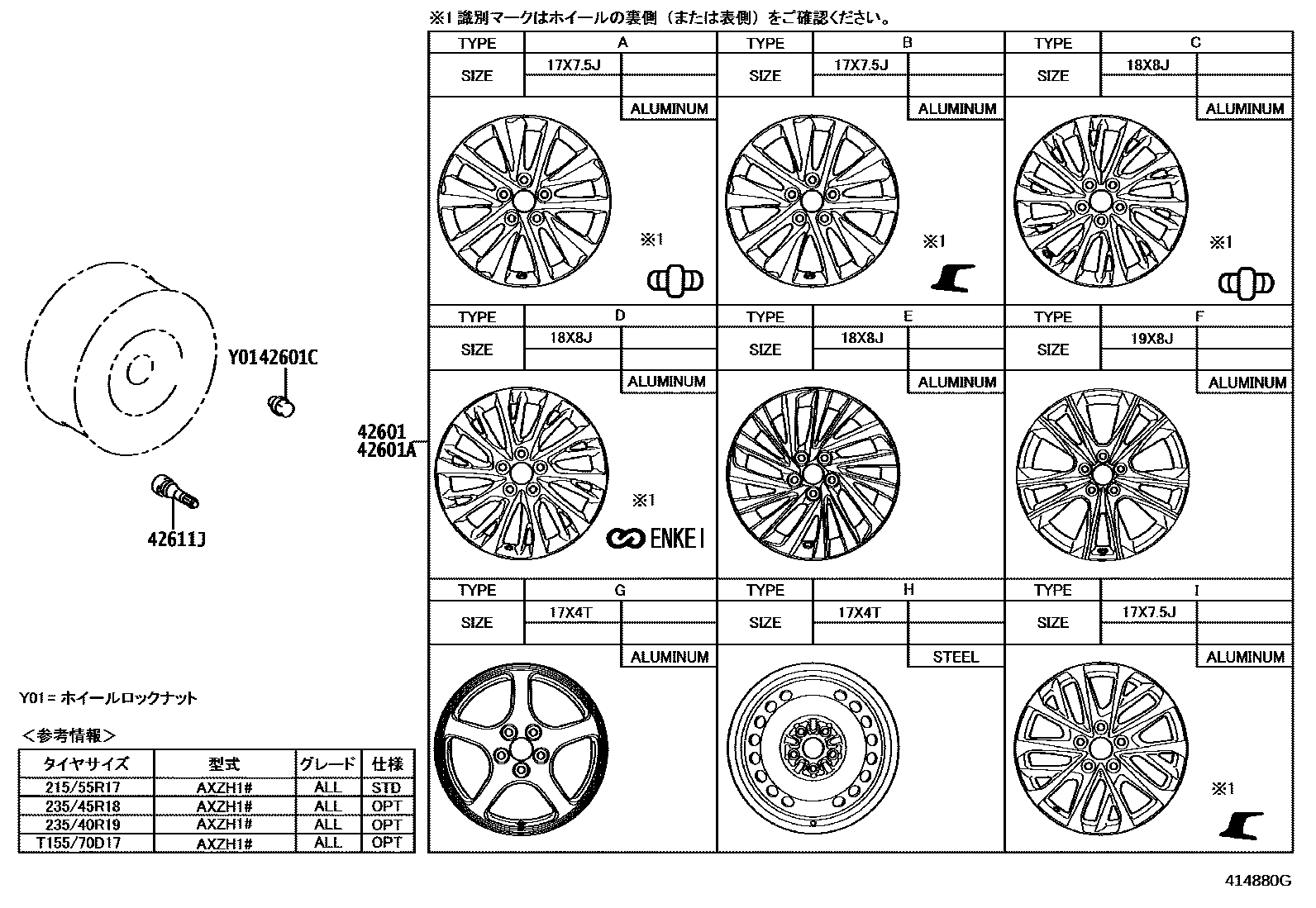

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-33E31×4supersedes 42611-33D80iAXZH1#201907-202108

main42611-33E50×4supersedes 42611-33D80iAXZH1#201907-202108

main42611-33E90×4supersedes 42611-33E80iAXZH10201810-201907

main42611-33G60×4supersedes 42611-33G40iAXZH11202108

main42611-33G80×4supersedes 42611-33G40iAXZH11202108

main42611-33J20×4supersedes 42611-33G40iAXZH11202108

main42611-33J40×4supersedes 42611-33G40iAXZH11202208

main4261A-33240×4supersedes 42611-33G40iAXZH11202108

main4261A-33250×4iAXZH1#201810-202108

42601AWHEEL, DISC (FOR SPARE)

main42611-33E20iAXZH11202108

main4261B-33010iAXZH10201810-202007

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iAXZH1#201810-202108

main90942-01115×20supersedes 90942-01033iAXZH11202108

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXZH11202108

4 parts on this diagram · 4 diagrams in section
