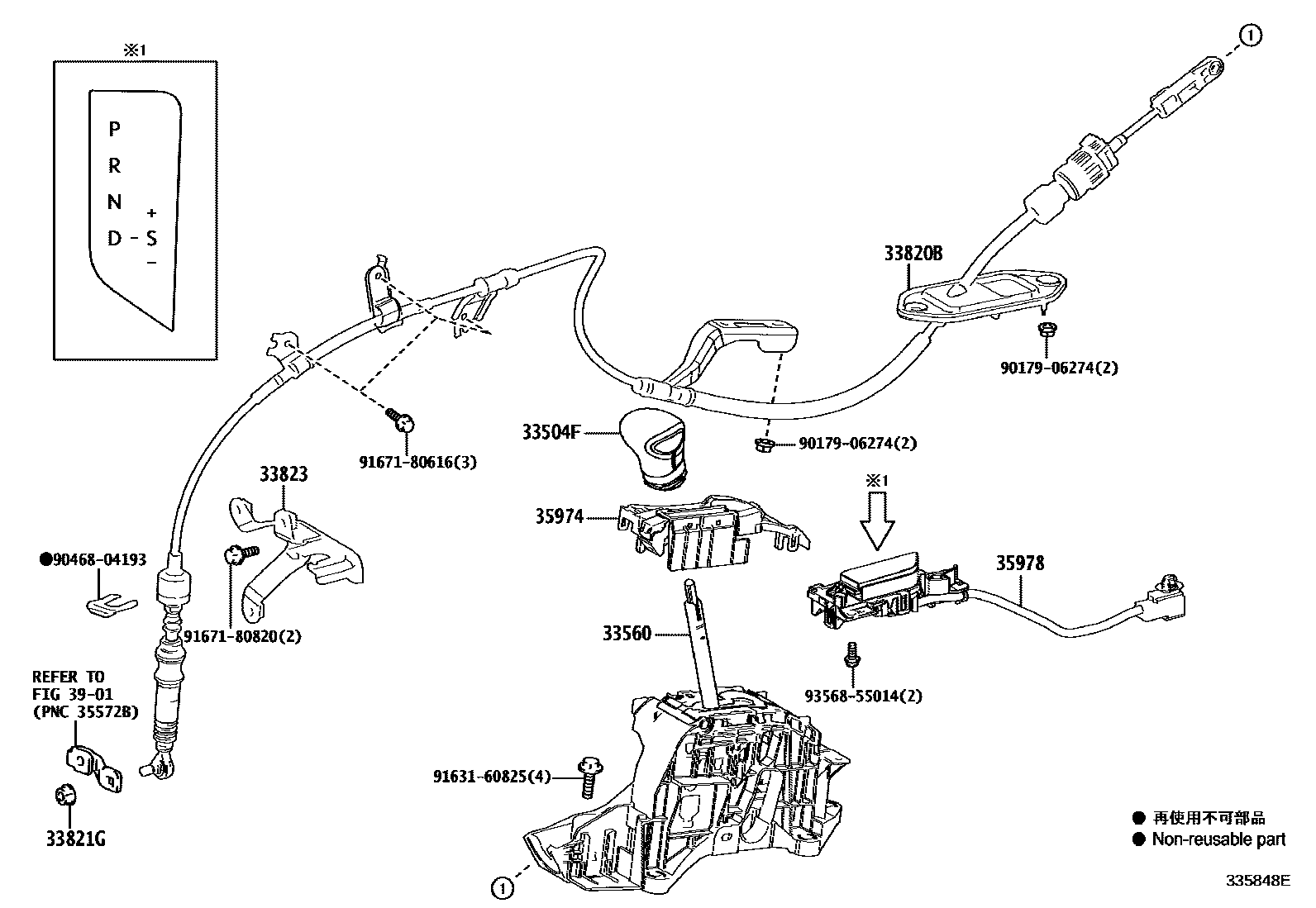

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33220-C0iAXZH1#201810-202108

BLACK,TRIM1#,2#,5#,6#

main33504-33220-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33400iAXZH1#201810-202108

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-33430iAXZH1#201810-202108

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iAXZH1#201810-202108

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-33080iAXZH1#201810-202108

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33250iAXZH1#201810-202108

35978INDICATOR, SHIFT POSITION

main35978-33350iAXZH1#201810-202208

main35978-33410iAXZH11202208

3901

9017906274

main90179-06274

9046804193

main90468-04193

9163160825

main91631-60825

9167180616

main91671-80616

9167180820

main91671-80820

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section
