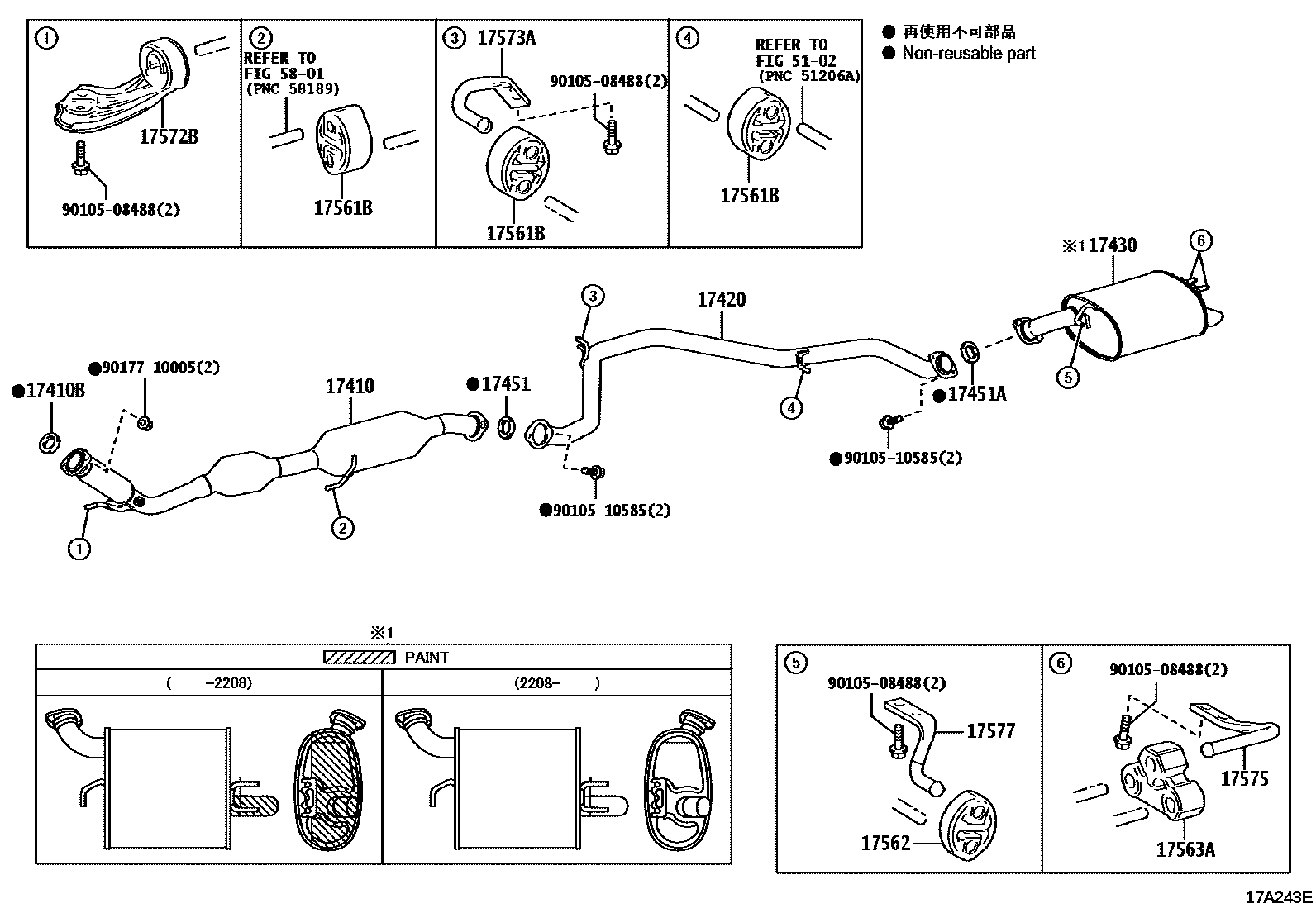

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
5102SUSPENSION CROSSMEMBER & UNDER COVER
5801FLOOR PAN & LOWER BACK PANEL
9010508488
main90105-08488
9010510585
main90105-10585
9017710005
main90177-10005
18 parts on this diagram · 1 diagram in section
