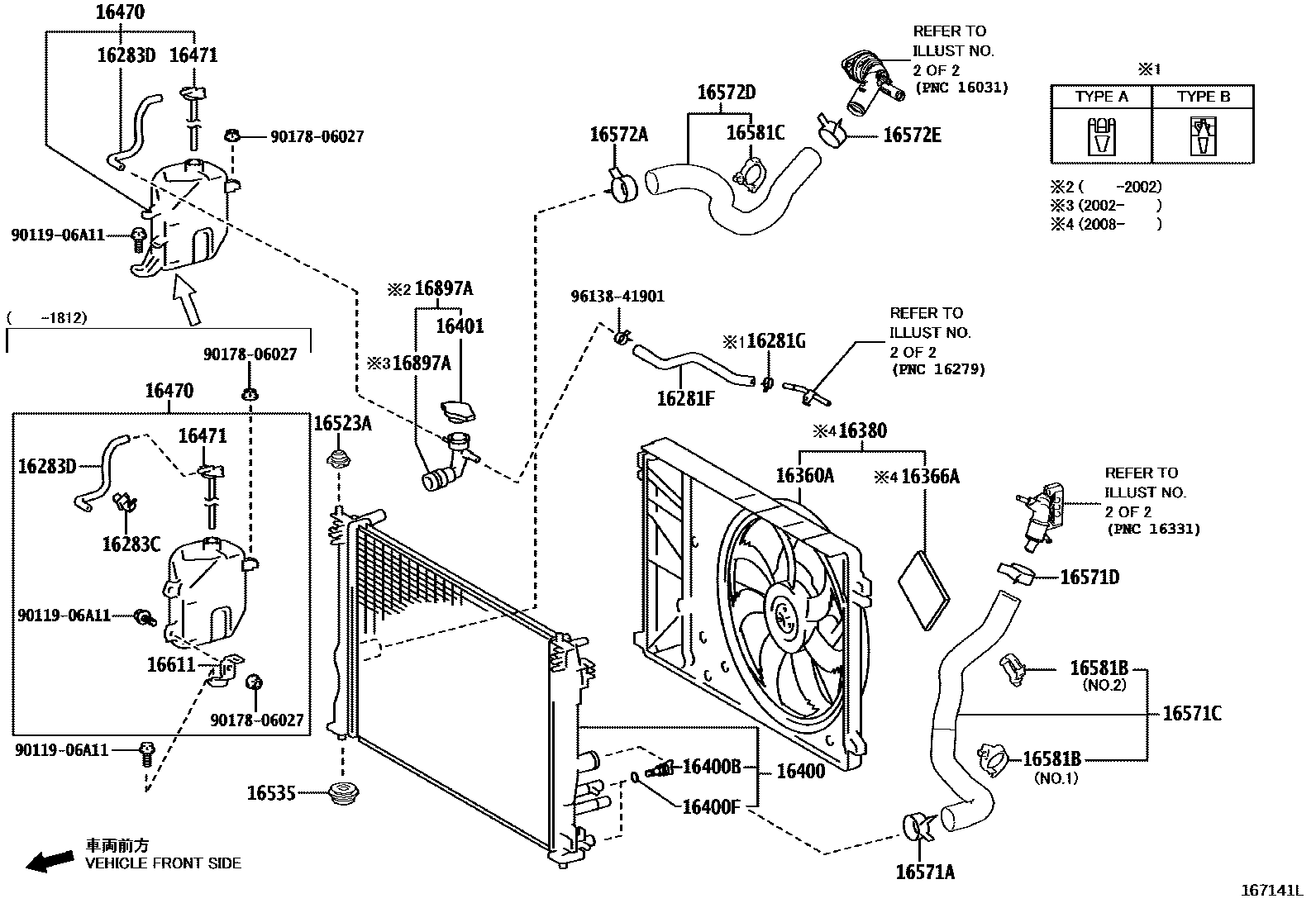

RADIATOR & WATER OUTLET

0001 1���������� 0002 1��������� 0003 1���������

16281HOSE, WATER BY-PASS, NO.4

main16281-25021iA25AFXS..AXZH1#201810-202108

main99555-10200iA25AFXS..AXZH11202108

16281FHOSE, WATER BY-PASS, NO.5

main16282-25021iA25AFXS..AXZH1#201810-202108

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-15022iA25AFXS..AXZH10201810-202001

main96138-51701iA25AFXS..AXZH1#202001-202108

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25AFXS..AXZH1#201810-202108

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main16581-25050iA25AFXS..AXZH10201810-201812

16283DHOSE, WATER BY-PASS, NO.6

main16283-25031iA25AFXS..AXZH10201810-201812

main16283-25032iA25AFXS..AXZH1#201812-202108

16360AFAN ASSY, W/MOTOR

main16360-31510iA25AFXS..AXZH1#201810-202108

16366AINSULATOR, COOLING FAN MOTOR

main16366-31510iA25AFXS..AXZH11202008-202108

16380BRACKET ASSY, FAN

main16380-31020iA25AFXS..AXZH11202008-202108

16400RADIATOR ASSY

main16400-25141iA25AFXS..AXZH1#201810-202108

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280×2iA25AFXS..AXZH10201810-202002

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050×2iA25AFXS..AXZH1#201810-202108

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFXS..AXZH1#201810-202108

16470TANK ASSY, RADIATOR RESERVE

main16470-25041iA25AFXS..AXZH10201810-201811

main16470-25042iA25AFXS..AXZH1#201812-202108

16471CAP SUB-ASSY, RESERVE TANK

main16405-25010iA25AFXS..AXZH1#201810-202108

16523ACUSHION, RADIATOR SUPPORT

main16523-25010×2iA25AFXS..AXZH11202108

main16523-38010×2iA25AFXS..AXZH10201810-202002

16535SUPPORT, RADIATOR, LOWER

main16535-20010×2iA25AFXS..AXZH1#201810-202108

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25AFXS..AXZH1#201810-202108

16571CHOSE, RADIATOR, NO.1

main16571-25031iA25AFXS..AXZH1#201810-202108

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iA25AFXS..AXZH1#201810-202108

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25AFXS..AXZH1#201810-202108

16572DHOSE, RADIATOR, NO.2

main16572-25020iA25AFXS..AXZH1#201810-202108

main16572-25021iA25AFXS..AXZH11202407

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iA25AFXS..AXZH1#201810-202108

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-25010iA25AFXS..AXZH1#201810-202108

main16581-25110iA25AFXS..AXZH1#201810-202108

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-25030iA25AFXS..AXZH1#201810-202108

16611BRACKET, RADIATOR RESERVE TANK

main16611-25010iA25AFXS..AXZH10201810-201812

16897ANECK, FILLER

main16897-25030iA25AFXS..AXZH10201810-202002

main16897-25031iA25AFXS..AXZH1#202002-202108

9011906A11

main90119-06A11

9017806027

main90178-06027

9613841901

main96138-41901

30 parts on this diagram · 3 diagrams in section
