CRANKSHAFT & PISTON

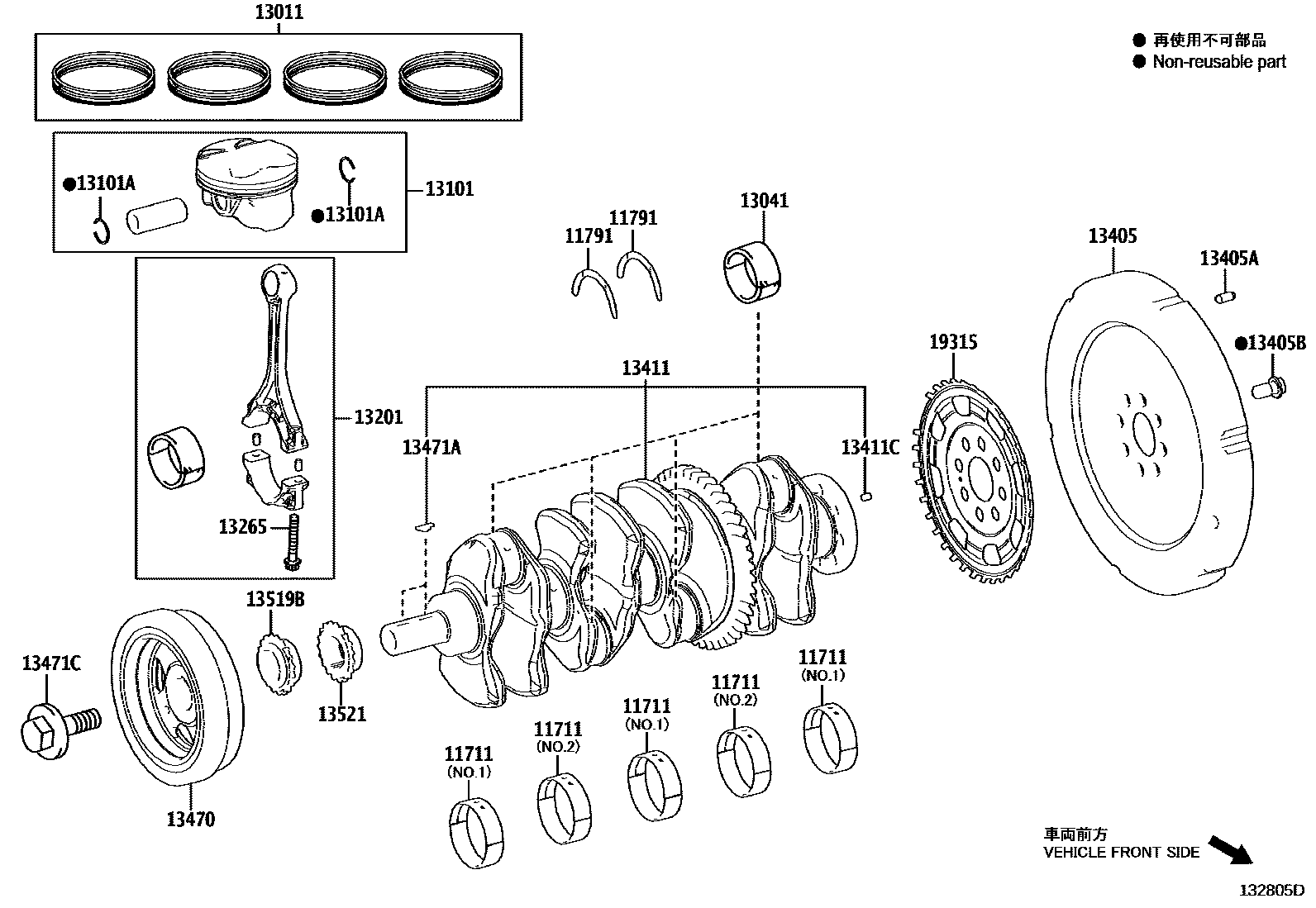

Parts diagram

11711BEARING, CRANKSHAFT

main11701-25010-01×5i201810-201906

main11701-25010-02×3i201906-202108

main11701-25010-03×3i202108-202111

main11701-25010-04×5i202111

main11701-25010-05×3i201906-202108

main11701-25020-01×2i201906-202108

main11701-25020-02×2i201906-202108

main11701-25020-03×2i201906-202108

main11701-25020-04×2i202108-202111

main11701-25020-05×2i202108-202111

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25030×2i201810-202102

main11791-25040×2i202103-202108

13011RING SET, PISTON

main13011-25080i201810-202108

13041BEARING, CONNECTING ROD

main13041-25020-01×4i202108

main13041-25020-02×4i201810-202108

main13041-25020-03×4i201810-202108

13101PISTON SUB-ASSY, W/PIN

main13101-25040×4i202108

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8i201810-202108

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4i201810-202108

main13201-29815-B0×4i201810-202108

main13201-29815-C0×4i202108

13265BOLT, CONNECTING ROD

main13265-25020×8i201810-202108

13405FLYWHEEL SUB-ASSY

main13451-25030i202108

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i202108

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8i201810-202108

13411CRANKSHAFT

main13401-25010i201810-202108

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i201810-202108

13470PULLEY ASSY, CRANKSHAFT

main13470-25020i201810-202108

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i201810-202108

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i201810-202108

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010i201810-202108

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010i201810-202108

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25010i201810-201911

main19315-25011i201912-202108
