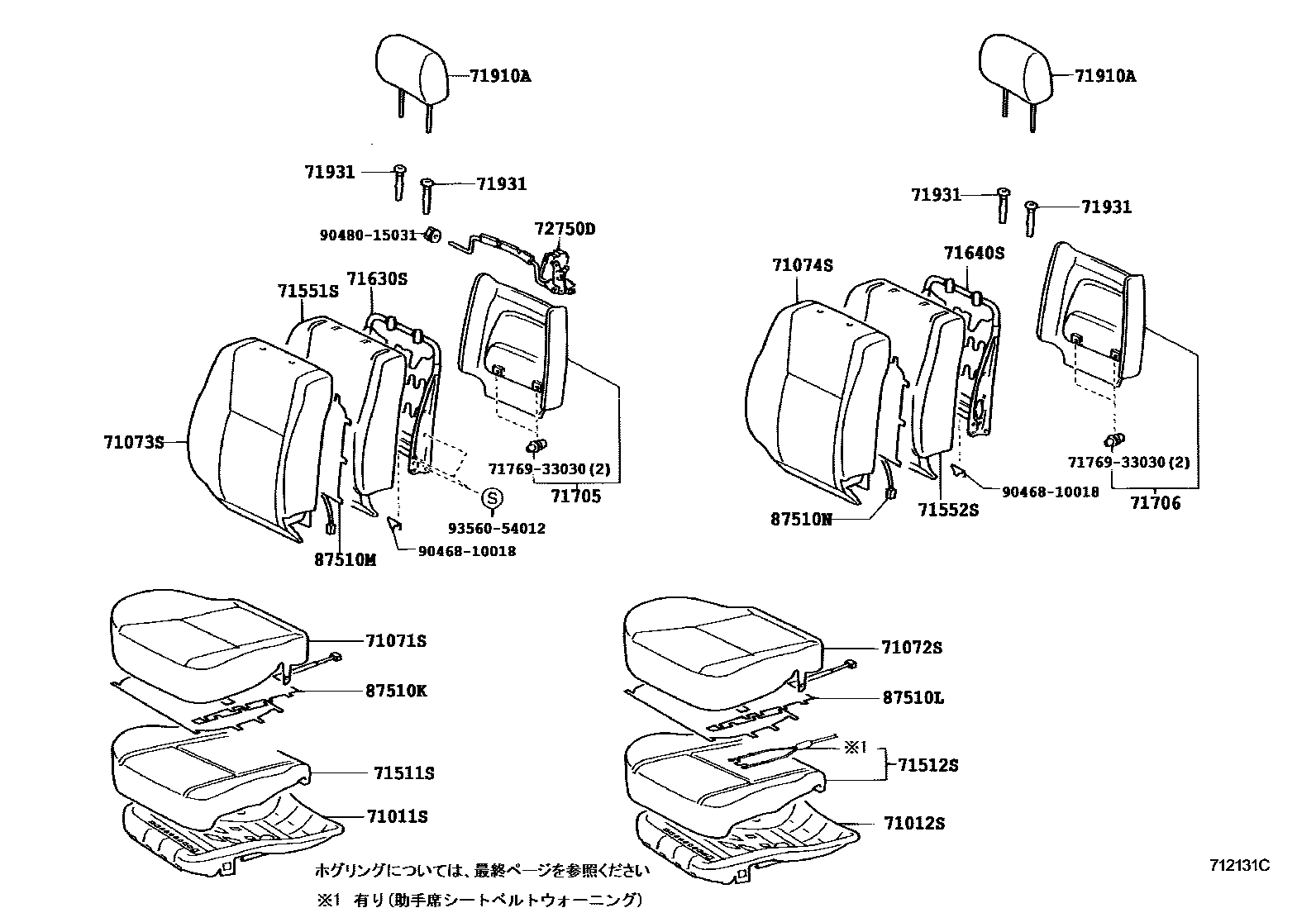

FRONT SEAT & SEAT TRACK

0001 1 0002 1��(SRS ���� �������) 0003 1������ ���-�-� & ������� ���-0004 1������ ���-�-� & ������� ����0005 1������ 0006 1�������(���� ���) 0007 1�������(����� ���) 0008 1������� ���� 0009 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-33020iMCV30200107-200406

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-33020iMCV30200107-200406

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-33B90-A0iMCV30200406-200603

main71071-33B90-C0iMCV30200406-200603

main71071-33D10-A0iMCV30200406-200603

IVORY,TRIM0#

main71071-33D10-C0iMCV30200406-200603

BLACK,TRIM2#

main71071-3T140-A1iMCV30200107-200406

IVORY,TRIM0#

main71071-3T140-C1iMCV30200107-200406

BLACK,TRIM2#

main71071-3T160-A2iMCV30200107-200406

main71071-3T160-C2iMCV30200107-200406

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-3T140-A1iMCV30..30G200307-200406

main71071-3T140-C1iMCV30..30G200307-200406

main71072-33C60-A0iMCV30200406-200603

main71072-33C60-C0iMCV30200406-200603

main71072-33C70-A0iMCV30200406-200603

main71072-33C70-C0iMCV30200406-200603

main71072-33D80-A0iMCV30..30G200406-200603

IVORY,TRIM0#

main71072-33D80-C0iMCV30..30G200406-200603

BLACK,TRIM2#

main71072-3T090-A1iMCV30200107-200307

IVORY,TRIM0#

main71072-3T090-C1iMCV30200107-200307

BLACK,TRIM2#

main71072-3T120-A2iMCV30200307-200406

main71072-3T120-C2iMCV30200107-200307

main71072-3T170-A0iMCV30200107-200307

main71072-3T170-C0iMCV30200107-200307

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-33010-A0iMCV30200307-200406

IVORY,TRIM0#

main71027-33010-C0iMCV30200107-200307

main71027-33020-A0iMCV30200107-200307

IVORY,TRIM0#

main71027-33020-C0iMCV30200107-200307

BLACK,TRIM2#

main71027-33040-A0iMCV30200307-200406

main71027-33040-C0iMCV30200307-200406

main71027-33050-A0iMCV30200107-200307

main71027-33050-C0iMCV30200107-200307

main71073-33F10-A0iMCV30200406-200603

IVORY,TRIM0#

main71073-33F10-C0iMCV30200406-200603

BLACK,TRIM2#

main71073-33F60-A0iMCV30200406-200603

main71073-33F60-C0iMCV30200406-200603

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main70169-33010-A0iMCV30..30G200307-200406

main70169-33010-C0iMCV30..30G200107-200307

main70169-33020-A0iMCV30200107-200307

IVORY,TRIM0#

main70169-33020-C0iMCV30200107-200307

BLACK,TRIM2#

main70169-33040-A0iMCV30200307-200406

main70169-33040-C0iMCV30200107-200307

main70169-33060-A0iMCV30200107-200307

main70169-33060-C0iMCV30200107-200307

main71027-33020-A0iMCV30..30G200107-200307

main71027-33020-C0iMCV30..30G200107-200307

main71027-33050-A0iMCV30200107-200307

main71027-33050-C0iMCV30200107-200307

main71074-33E90-A0iMCV30200406-200603

IVORY,TRIM0#

main71074-33E90-C0iMCV30200406-200603

BLACK,TRIM2#

main71074-33F40-A0iMCV30200406-200603

main71074-33F40-C0iMCV30200406-200603

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-33040iMCV30200406-200603

main71501-33050iMCV30200406-200603

main71511-33170iMCV30200107-200406

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71501-33010iMCV30200107-200406

main71502-33040iMCV30..30G200406-200603

main71502-33050iMCV30200406-200603

main71502-33060iMCV30200406-200603

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-33150iMCV30200107-200307

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-33150iMCV30200107-200307

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-33150iMCV30200107-200406

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-33140iMCV30200107-200406

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-33260-A0iMCV30200107-200406

IVORY,TRIM0#

main71705-33260-C0iMCV30200107-200406

BLACK,TRIM2#

main71705-33410-A0iMCV30200406-200603

main71705-33410-C0iMCV30200406-200603

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-33260-A0iMCV30200107-200406

main71705-33260-C0iMCV30200107-200406

main71705-33270-A1iMCV30200107-200406

IVORY,TRIM0#

main71705-33270-C1iMCV30200107-200406

BLACK,TRIM2#

main71705-33420-A0iMCV30200406-200603

IVORY,TRIM0#

main71705-33420-C0iMCV30200406-200603

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-33470-A0×2iMCV30200107-200406

IVORY,TRIM0#

main71910-33470-A1×2iMCV30200406-200603

IVORY,TRIM0#

main71910-33470-C0×2iMCV30200107-200406

BLACK,TRIM2#

main71910-33490-A0×2iMCV30200107-200406

main71910-33490-C0×2iMCV30200107-200406

main71910-33540-A0×2iMCV30200406-200603

main71910-33540-C0×2iMCV30200406-200603

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A0×2iMCV30200107-200406

main71930-42020-A3×2iMCV30200406-200603

main71930-42020-C0×2iMCV30200406-200603

main71931-42020-A0×2iMCV30200107-200406

main71931-42020-A3×2iMCV30200406-200603

main71931-42020-C0×2iMCV30200107-200406

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33060iMCV30200107-200406

main72750-48010iMCV30200406-200603

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-33130iMCV30200107-200406

main87510-33150iMCV30200406-200603

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-33130iMCV30200107-200406

main87510-33150iMCV30200406-200603

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-33140iMCV30200107-200406

main87530-33010iMCV30200406-200603

87510NHEATER ASSY, FRONT SEATBACK, LH

main87510-33140iMCV30200107-200406

main87530-33010iMCV30200406-200603

7176933030COVER, FRONT SEAT UNDER TRAY BRACKET

main71769-33030

9046810018

main90468-10018

9048015031

main90480-15031

9356054012

main93560-54012

25 parts on this diagram · 9 diagrams in section
