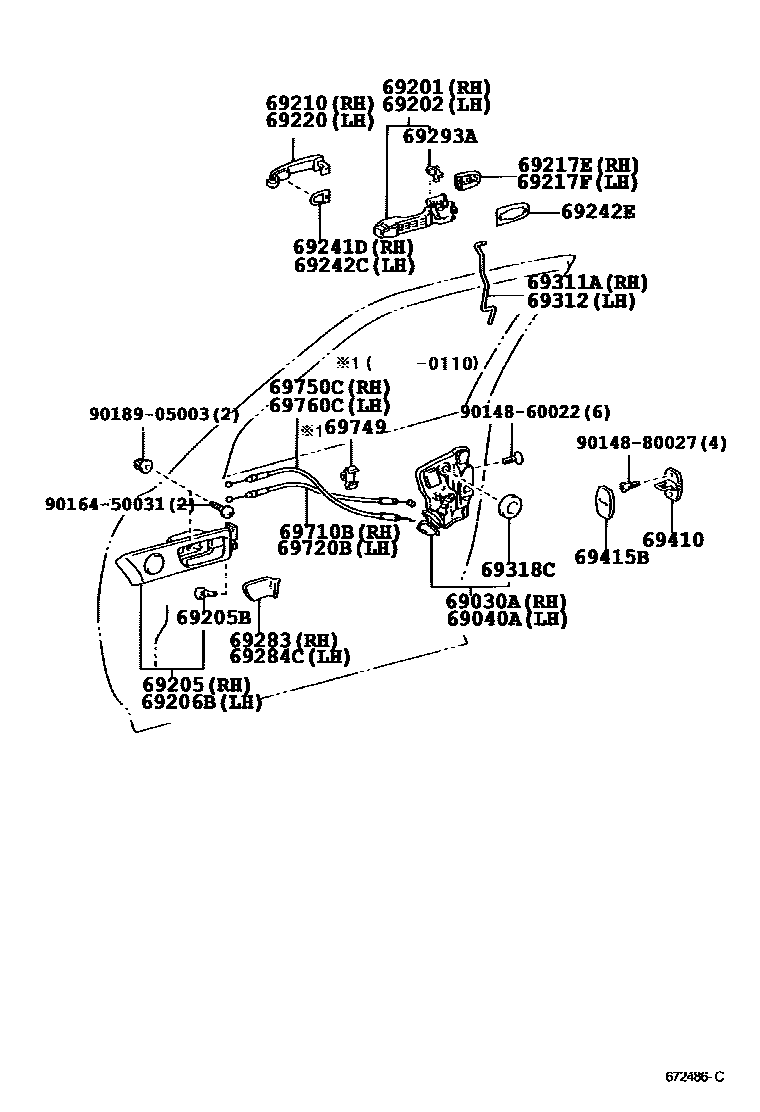

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH
69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
9014860022
main90148-60022
9014880027
main90148-80027
9016450031
main90164-50031
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section
