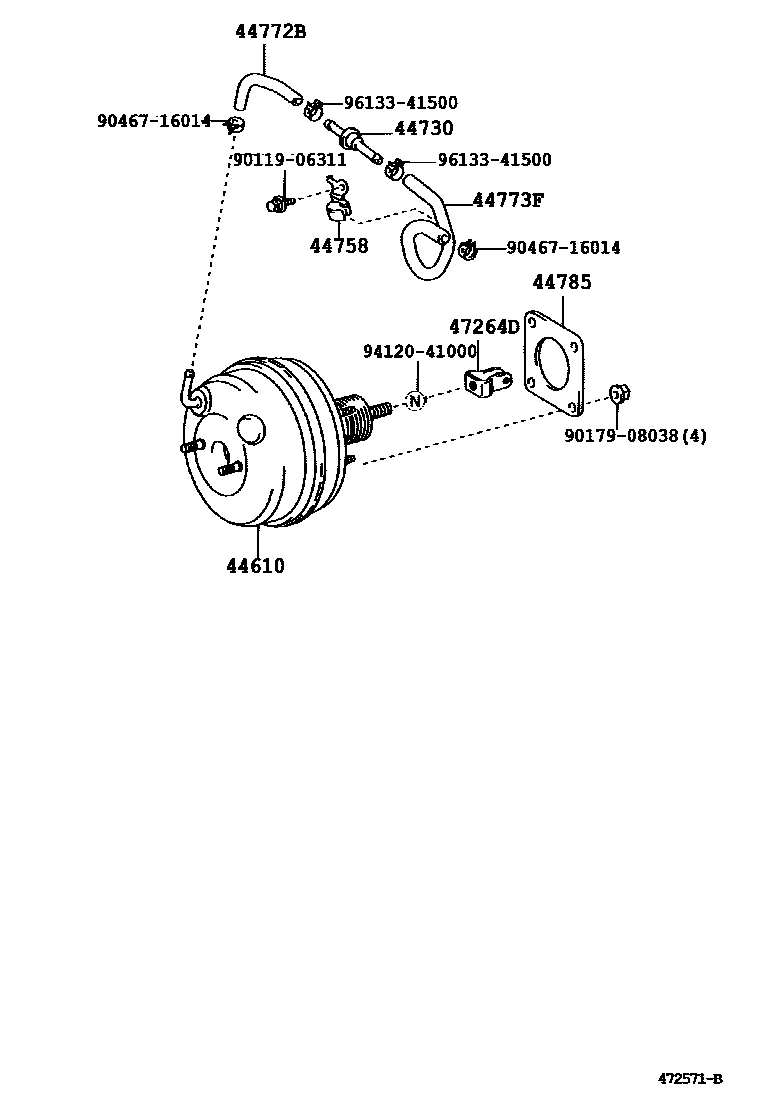

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-33730iMCV30200406

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV30200107-200406

44758BRACKET, VACUUM CHECK VALVE

main44758-33110iMCV30200107-200406

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33110iMCV30200406

44773FHOSE, UNION TO CHECK VALVE

main44773-33130iMCV30200406

44785GASKET, BRAKE BOOSTER

main44785-20020iMCV30200406

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMCV30200402-200406

main47264-63010iMCV30200107-200402

9011906311

main90119-06311

9017908038

main90179-08038

9046716014

main90467-16014

9412041000

main94120-41000

9613341500

main96133-41500

12 parts on this diagram · 1 diagram in section
