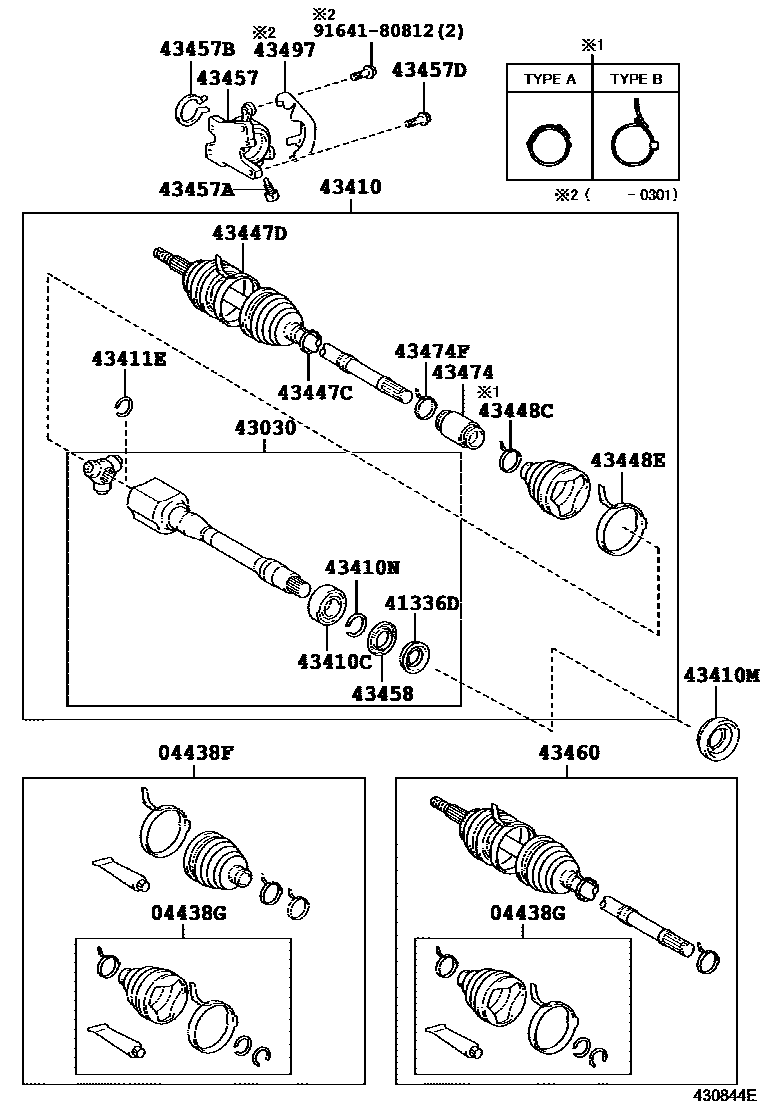

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-44050iMCV30200107-200207

main04438-44051iMCV30200207-200406

sub04438-44052

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-28040iMCV30200107-200207

main04438-28041iMCV30200207-200406

sub04438-42180

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iMCV30200107-200406

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33040iMCV30200107-200207

main43030-33041iMCV30200208-200406

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33280iMCV30200107-200406

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002iMCV30200107-200406

main90363-41003iMCV30200409

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40027iMCV30200107-200212

main90311-40028iMCV30200212-200406

main90311-40029iMCV30200511-200603

sub90311-40038

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iMCV30200107-200406

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iMCV30200107-200406

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48030iMCV30200107-200406

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-44020iMCV30200406

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iMCV30200406

main90949-01559iMCV30200204-200406

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iMCV30200203-200406

main90949-01076iMCV30200107-200203

43457BRACKET, DRIVE SHAFT BEARING

main43457-33010iMCV30200107-200406

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCV30200107-200406

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCV30200107-200406

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iMCV30200406

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iMCV30200107-200406

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39155iMCV30200107-200207

main43460-39156iMCV30200207-200406

43474DAMPER, DRIVE SHAFT

main43474-28010iMCV30200406

sub43474-28030

main43474-33020iMCV30200211-200307

main43474-48011iMCV30200107-200212

main43474-48020iMCV30200212-200406

sub43474-48080

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iMCV30200107-200406

43497INSULATOR, BEARING BRACKET HEAT

main43497-33010iMCV30200107-200301

9164180812

main91641-80812

23 parts on this diagram · 2 diagrams in section
