ALTERNATOR

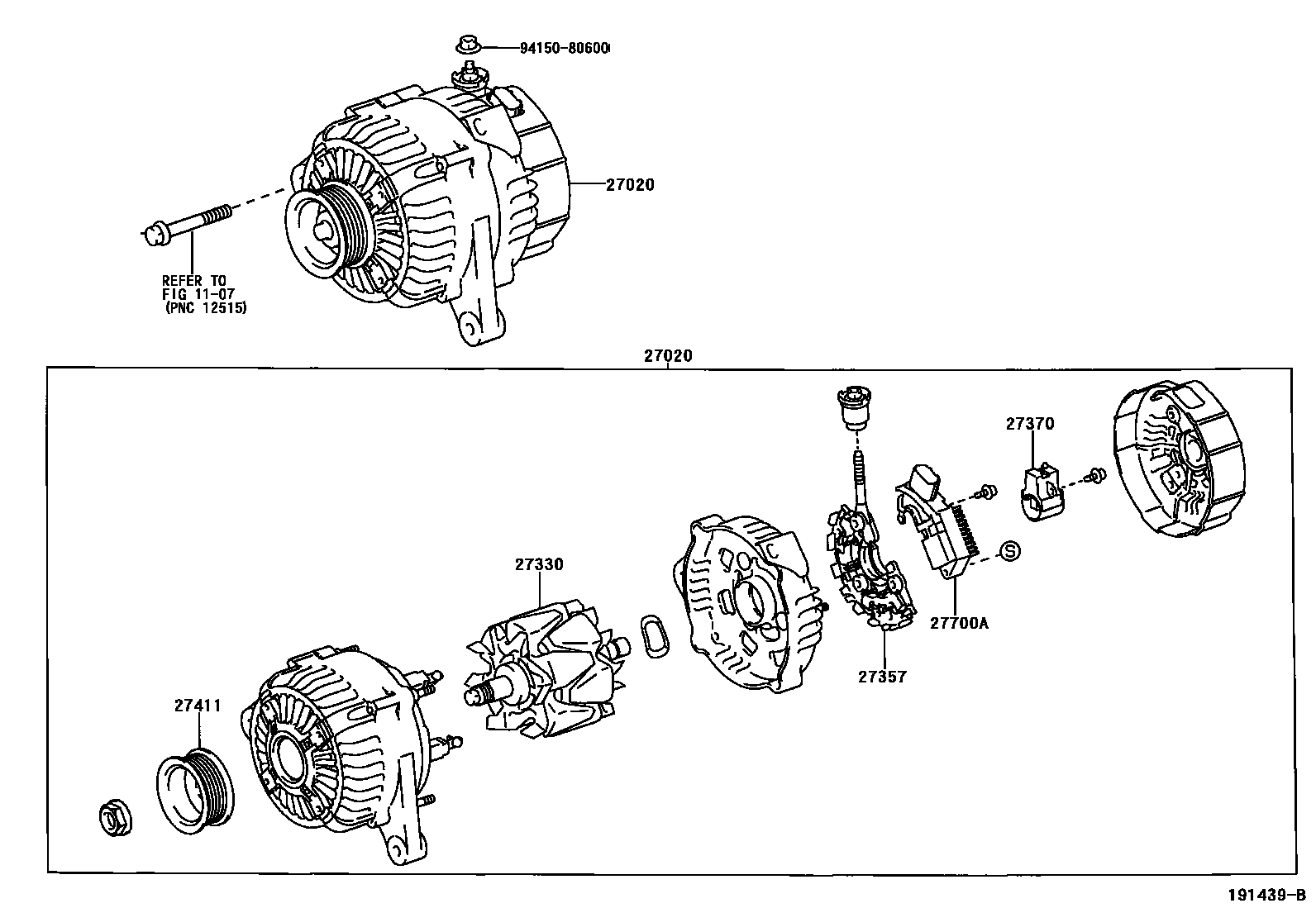

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

27020ALTERNATOR ASSY

main27060-20250i200107-200307

main27060-20270i200307-200406

27330ROTOR ASSY, ALTERNATOR

main27330-20070i200107-200307

main27330-30070i200307-200406

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70450i200107-200307

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i200307-200406

main27370-75060i200107-200307

27411PULLEY, ALTERNATOR

main27411-46080i200107-200406

27700AREGULATOR ASSY, GENERATOR

main27700-20050i200107-200307

9415080600

main94150-80600

8 parts on this diagram · 2 diagrams in section
