IGNITION COIL & SPARK PLUG / GLOW PLUG

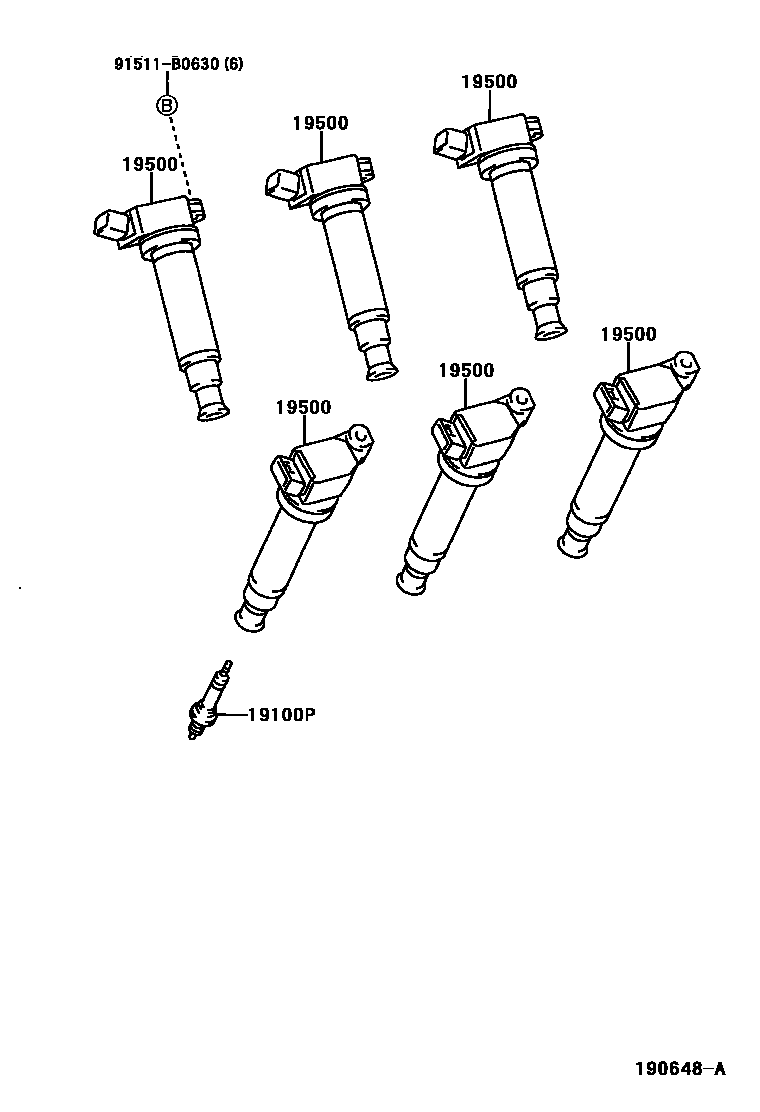

Parts diagram

19100PPLUG, SPARK

main90919-01210i200107-200603

main90919-01211i200107-200603

19500COIL ASSY, IGNITION

main90919-02234i200107-200406

91511B0630

main91511-B0630

3 parts on this diagram · 1 diagram in section
