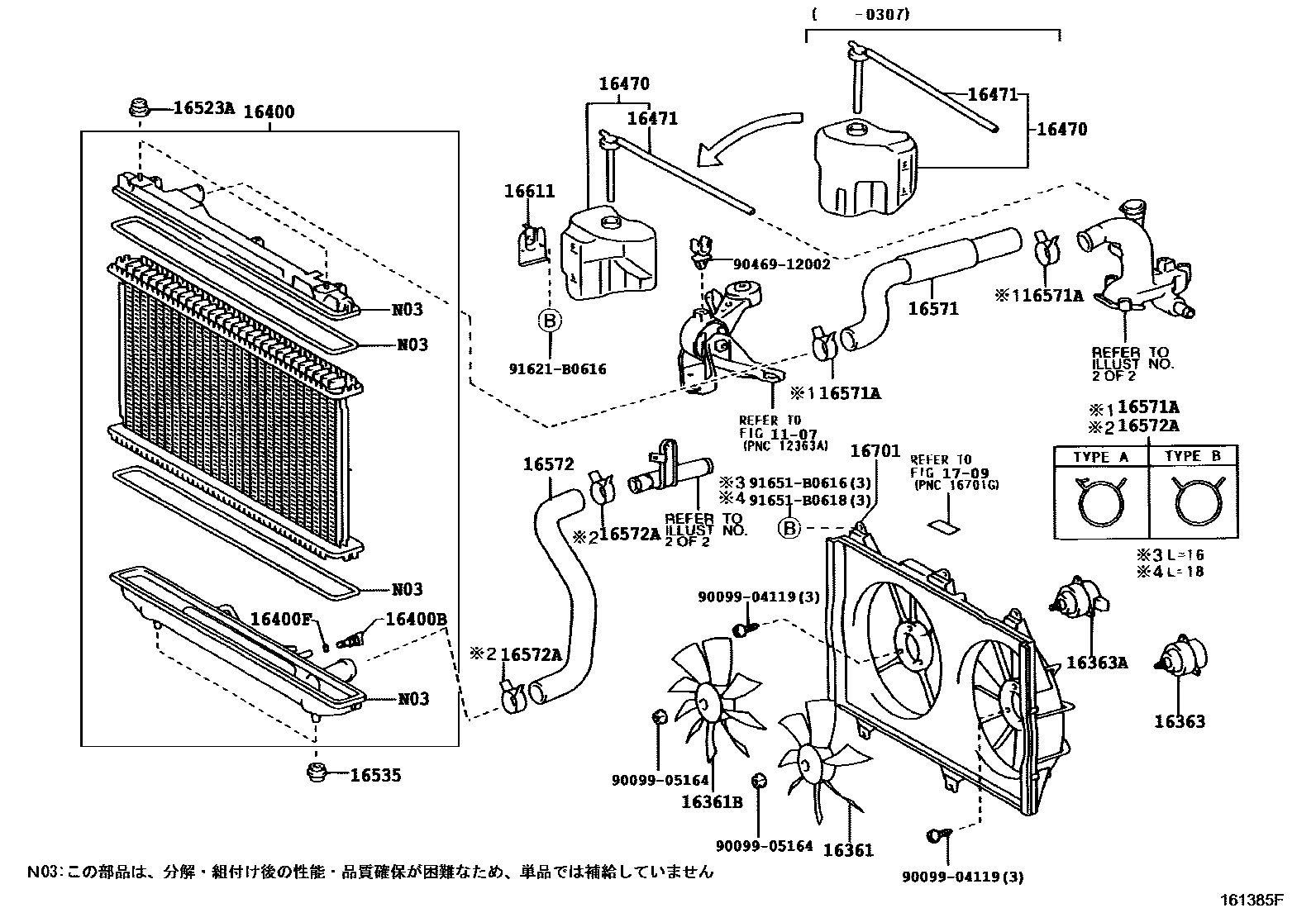

RADIATOR & WATER OUTLET

0001 1 0002 1

1107MOUNTING

→ Go to FIG 11-07

16361FAN

main16361-20110i1MZFE..MCV30200107-200401

main16361-20111i1MZFE..MCV30200401-200406

16361BFAN, NO.2

main16361-20120i1MZFE..MCV30200107-200401

main16361-20121i1MZFE..MCV30200401-200406

16363MOTOR, COOLING FAN

main16363-20140i1MZFE..MCV30200107-200305

main16363-20340i1MZFE..MCV30200305-200406

16363AMOTOR, COOLING FAN, NO.2

main16363-20240i1MZFE..MCV30200107-200305

main16363-20350i1MZFE..MCV30200305-200406

16400RADIATOR ASSY

main16400-20270i1MZFE..MCV30200107-200307

main16400-20320i1MZFE..MCV30200307-200406

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1MZFE..MCV30200406

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1MZFE..MCV30200107-200406

16470TANK ASSY, RADIATOR RESERVE

main16470-20080i1MZFE..MCV30200107-200307

main16470-20091i1MZFE..MCV30200307-200406

16471CAP SUB-ASSY, RESERVE TANK

main16405-20060i1MZFE..MCV30200107-200307

main16405-20080i1MZFE..MCV30200307-200406

16523ACUSHION, RADIATOR SUPPORT

main16523-28020×2i1MZFE..MCV30200406

16535SUPPORT, RADIATOR, LOWER

main16535-20010×2i1MZFE..MCV30200107-200406

16571HOSE, RADIATOR, INLET

main16571-20060i1MZFE..MCV30200107-200406

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001×2i1MZFE..MCV30200107-200406

main90467-37005×2i1MZFE..MCV30200406

16572HOSE, RADIATOR, OUTLET

main16572-20080i1MZFE..MCV30200107-200307

main16572-20110i1MZFE..MCV30200307-200406

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001×2i1MZFE..MCV30200107-200406

main90467-37005×2i1MZFE..MCV30200107-200406

16611BRACKET, RADIATOR RESERVE TANK

main16611-28010i1MZFE..MCV30200107-200406

16701SHROUD SUB-ASSY, FAN

main16711-20140i1MZFE..MCV30200107-200406

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9009904119

main90099-04119

9009905164

main90099-05164

9046912002

main90469-12002

91621B0616

main91621-B0616

91651B0616

main91651-B0616

91651B0618

main91651-B0618

25 parts on this diagram · 2 diagrams in section
