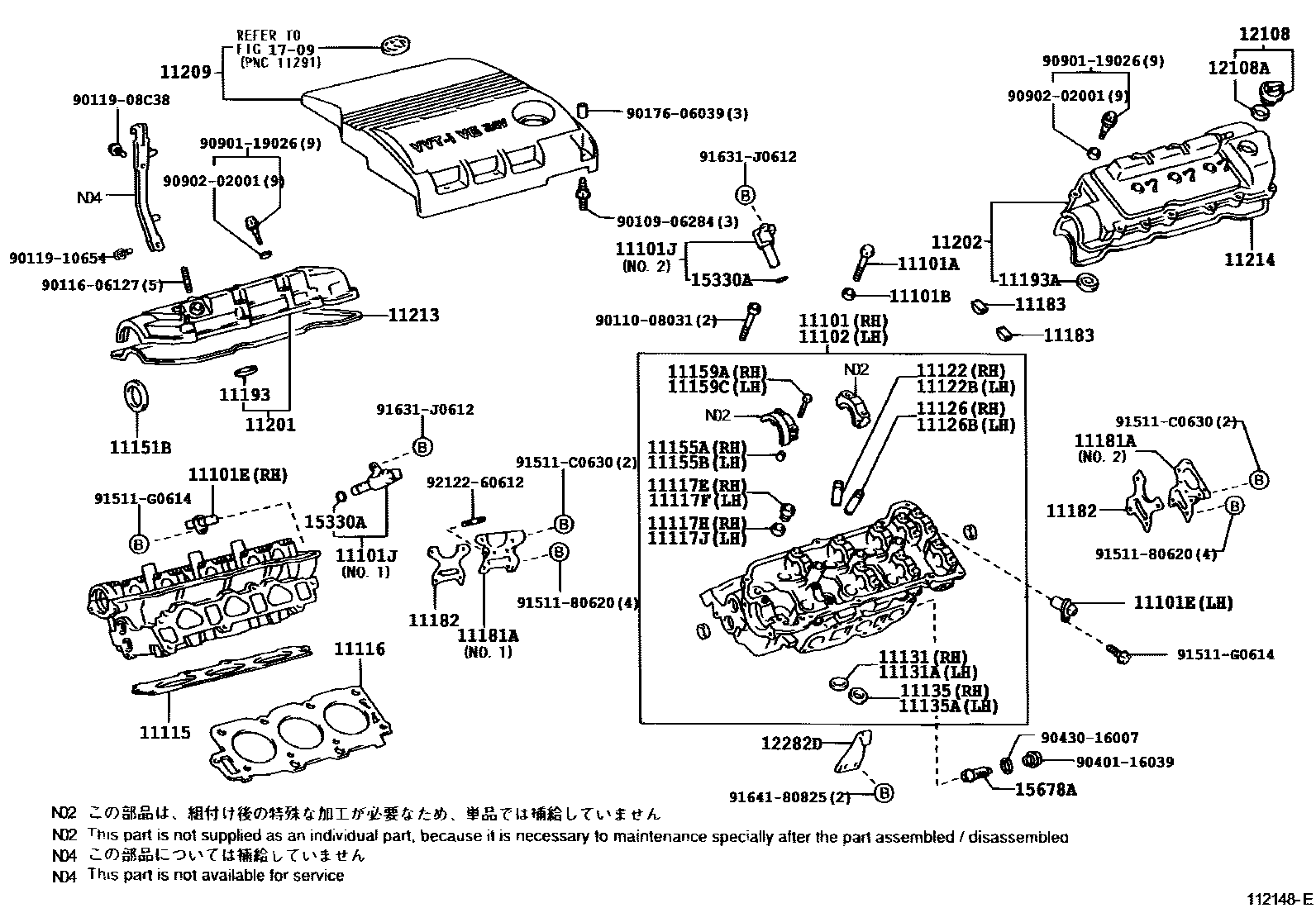

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
sub90341-24011
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
sub90341-24011
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
11131ASEAT, INTAKE VALVE, NO.2
11135SEAT, EXHAUST VALVE
11135ASEAT, EXHAUST VALVE, NO.2
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11155BPIN, RING
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181ACOVER, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11209COVER SUB-ASSY, V-BANK
sub11209-20900
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1709
9010906284
main90109-06284
9011008031
main90110-08031
9011606127
main90116-06127
9011908C38
main90119-08C38
9011910654
main90119-10654
9017606039
main90176-06039
9040116039
main90401-16039
9043016007
main90430-16007
9090119026
main90901-19026
9090202001
main90902-02001
9151180620
main91511-80620
91511C0630
main91511-C0630
91511G0614
main91511-G0614
91631J0612
main91631-J0612
9164180825
main91641-80825
9212260612
main92122-60612
57 parts on this diagram · 1 diagram in section
