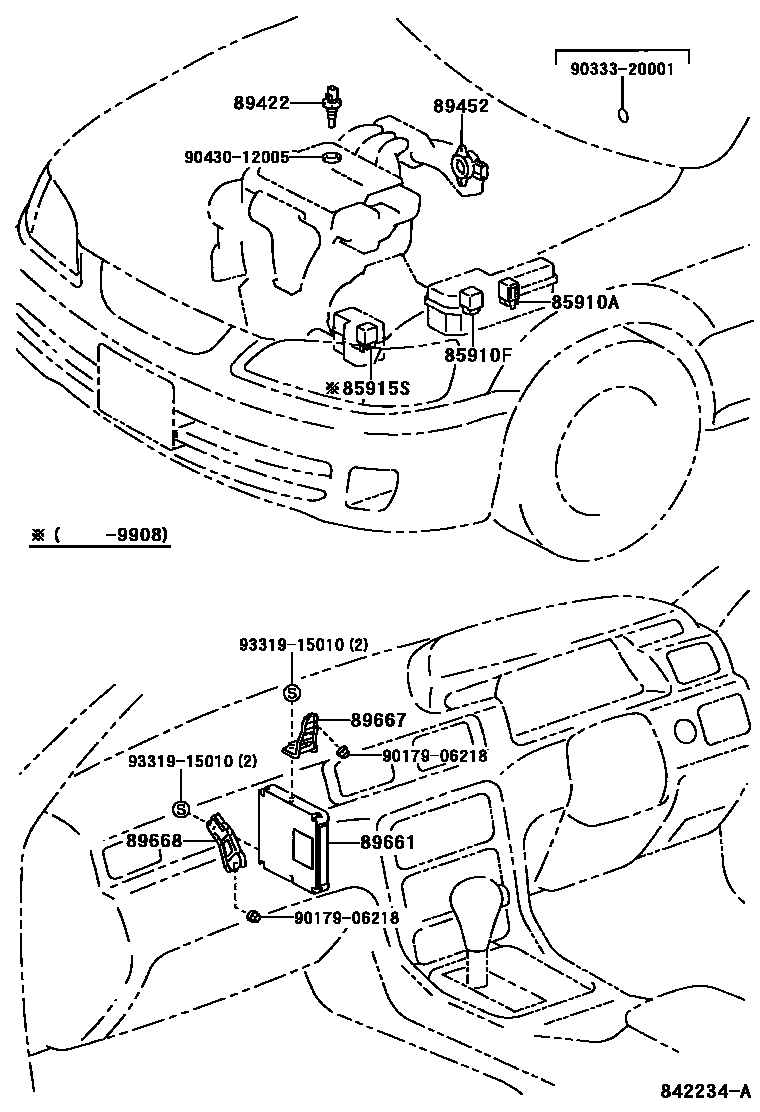

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iMCV2#199608

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iMCV2#199608

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02012iMCV20199808-199908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMCV2#199608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iMCV2#200005

main89452-33040iMCV2#199608-200005

89661COMPUTER, ENGINE CONTROL

main89661-33890iMCV20199608-199808

main89661-3T010iMCV21199608-199808

main89661-3T020iMCV21199608-199808

main89661-3T390iMCV21199808

main89661-3T430iMCV20199808-199908

main89666-33130iMCV20199908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33080iMCV2#199608-199808

main89667-33100iMCV20199808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33090iMCV2#199608-199808

main89668-33120iMCV20199808

9017906218

main90179-06218

9033320001

main90333-20001

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
