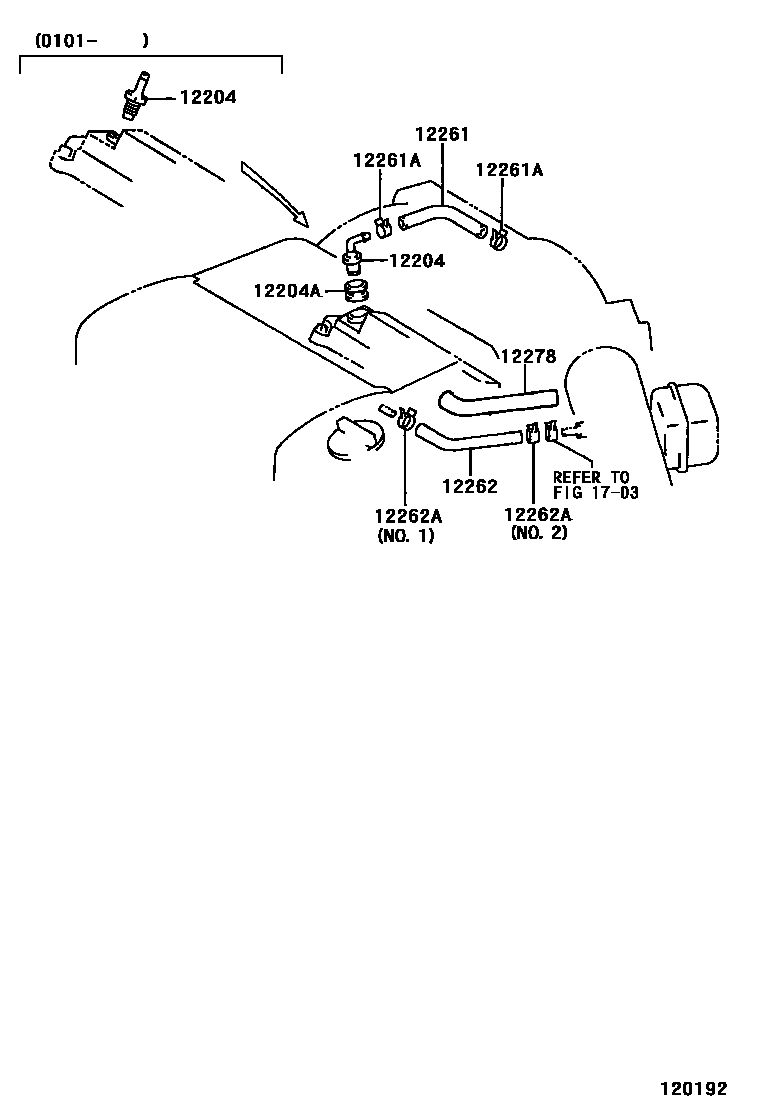

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-20010i1MZFE,2MZFE..MCV2#199608-200101

main12204-20040i1MZFE,2MZFE..MCV2#200101

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1MZFE,2MZFE..MCV2#199608-200101

12261HOSE, VENTILATION

main12261-20010i1MZFE,2MZFE..MCV2#199608-199708

sub12261-20011

main12261-20011i1MZFE,2MZFE..MCV2#199708

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i1MZFE,2MZFE..MCV2#199608

12262HOSE, VENTILATION, NO.2

main12262-20010i1MZFE,2MZFE..MCV2#199608-199709

main12262-20020i1MZFE,2MZFE..MCV2#199709

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17011i1MZFE,2MZFE..MCV2#199608-199709

sub96134-51700

main90467-17011i1MZFE,2MZFE..MCV2#199709

sub96134-51700

main90467-19022i1MZFE,2MZFE..MCV2#199709-199805

main96134-41900i1MZFE,2MZFE..MCV2#199805

12278INSULATOR, VENTILATION HOSE HEAT

main12278-20010i1MZFE,2MZFE..MCV2#199709-199808

1703

8 parts on this diagram · 1 diagram in section
