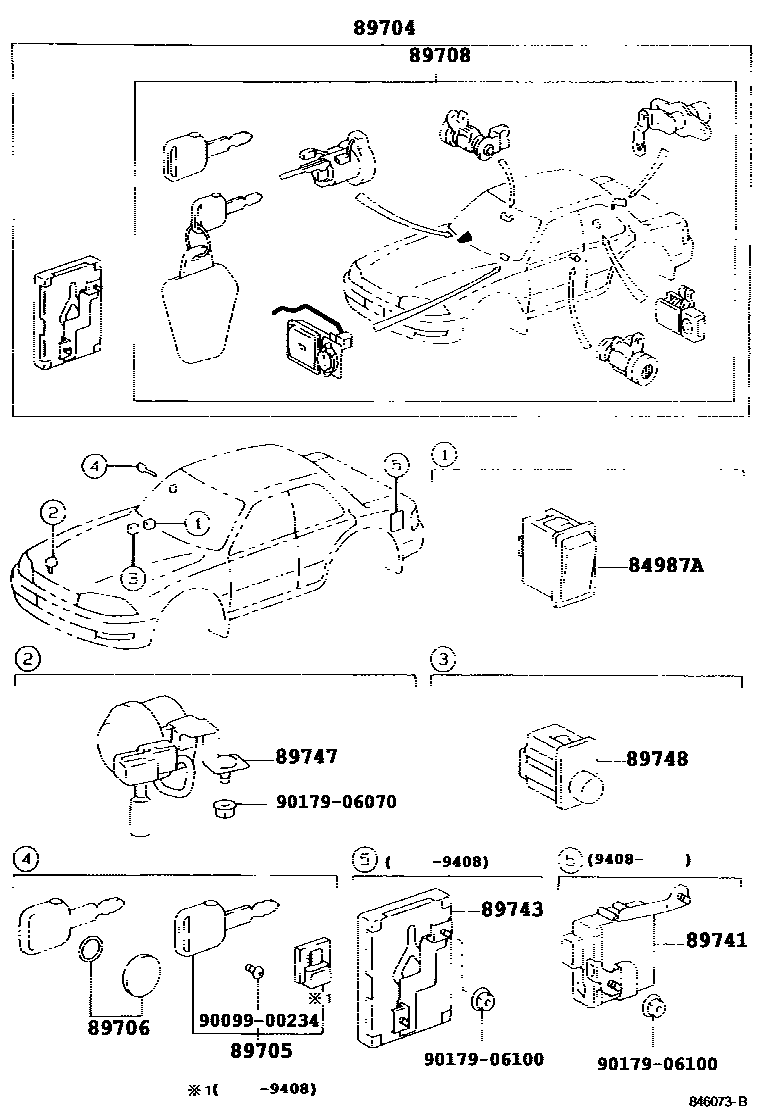

WIRELESS DOOR LOCK

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-33010-A0iVCV10199110-199308

IVORY,TRIM0#

main84987-33010-C0iVCV10199110-199308

BLACK,TRIM2#

main84987-33010-K0iVCV10199110-199308

MEDIUM TAUPE,TRIM9#

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-33030-A0iVCV10199110-199308

IVORY,TRIM0#

main89704-33030-C0iVCV10199110-199308

BLACK,TRIM2#

main89704-33030-K0iVCV10199110-199308

MEDIUM TAUPE,TRIM9#

main89704-33090-C0iVCV1#199308-199408

BLACK,TRIM2#

main89704-33090-E0iVCV1#199308-199408

OAK,TRIM4#

main89704-33090-K0iVCV1#199308-199408

TAUPE,TRIM9#

main89704-33150-A0iVCV10199408-199608

IVORY,TRIM4#

main89704-33150-C0iVCV1#199408-199608

BLACK,TRIM2#

main89704-33150-K0iVCV1#199408-199608

MD.TAUPE,TRIM9#

89705TRANSMITTER, DOOR CONTROL

main89705-12010iVCV10199110-199308

main89705-20070iVCV1#199308-199408

main89742-12060iVCV1#199408-199608

89706BATTERY SET, TRANSMITTER

main89706-50010iVCV1#199110-199608

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-33040-A0iVCV10199408-199608

IVORY,TRIM4#

main89708-33040-C0iVCV1#199408-199608

BLACK,TRIM2#

main89708-33040-K0iVCV1#199408-199608

MD.TAUPE,TRIM9#

89741RECEIVER, DOOR CONTROL

main89741-33120iVCV1#199408-199608

89743RECEIVER, DOOR CONTROL

main89743-33030iVCV10199110-199308

main89743-33070iVCV1#199308-199408

89747BUZZER, WIRELESS DOOR LOCK

main89747-33010iVCV1#199308-199608

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-33010-C0iVCV1#199308-199608

BLACK,TRIM2#

main89748-33010-E0iVCV1#199308-199408

OAK,TRIM4#

main89748-33010-K0iVCV1#199308-199608

TAUPE,TRIM9#

9009900234

main90099-00234

9017906070

main90179-06070

9017906100

main90179-06100

12 parts on this diagram · 1 diagram in section
