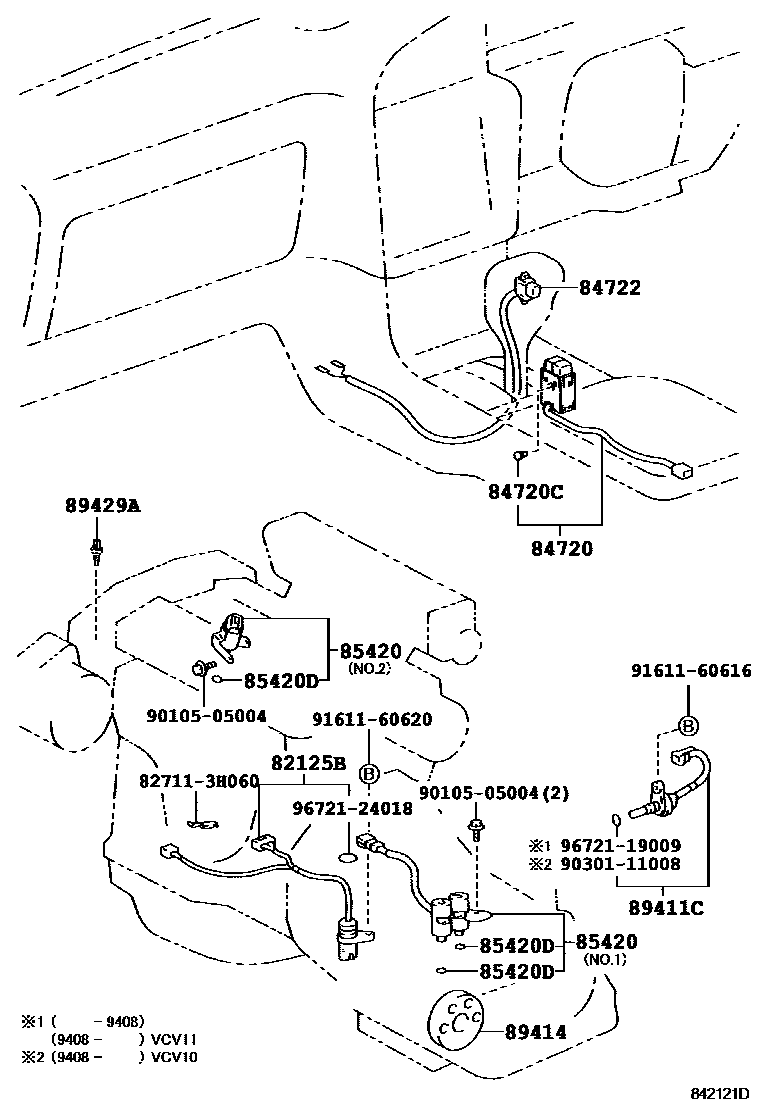

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-32050iVCV1#199205-199408

main82125-33020iVCV10199408-199608

84720SWITCH ASSY, PATTERN SELECT

main84720-33040iVCV1#199110-199608

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-09006iVCV1#199110-199608

84722SWITCH, TRANSMISSION CONTROL

main84722-33020-01iVCV1#199110-199408

BLACK,TRIM2#

main84722-33020-02iVCV1#199110-199408

TAUPE,TRIM9#

main84722-33020-05iVCV10199110-199308

GRIGE,TRIM0#

main84722-33020-C0iVCV1#199408-199608

BLACK,TRIM2#

main84722-33020-E0iVCV1#199308-199408

OAK,TRIM4#

main84722-33020-K0iVCV1#199408-199608

TAUPE,TRIM9#

85420SOLENOID ASSY, TRANSMISSION

main85420-32102iVCV11199408-199608

main85420-32120iVCV11199308-199408

main85420-33010iVCV10199408-199608

main85420-33030iVCV10199408-199608

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iVCV10199110-199205

89411CSENSOR, SPEED

main89411-32020iVCV1#199110-199408

main89411-33010iVCV10199408-199608

main89413-24010iVCV10199408-199608

89414ROTOR, SENSOR

main89414-33010iVCV1#199110-199408

89429ASENSOR, TEMPERATURE

main89429-33010iVCV1#199110-199608

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

9010505004

main90105-05004

9030111008

main90301-11008

9161160616

main91611-60616

9161160620

main91611-60620

9672119009

main96721-19009

9672124018

main96721-24018

16 parts on this diagram · 1 diagram in section
