WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE CLAMP 0004 1COWL WIRE 0005 1INSTRUMENT PANEL WIRE 0006 1DOOR WIRE,SEAT WIRE & LUGGAGE0007 1FLOOR WIRE,SEAT WIRE & LUGGAG0008 1CABLE BOND 0009 1CABLE BOND 0010 1REPAIR WIRE

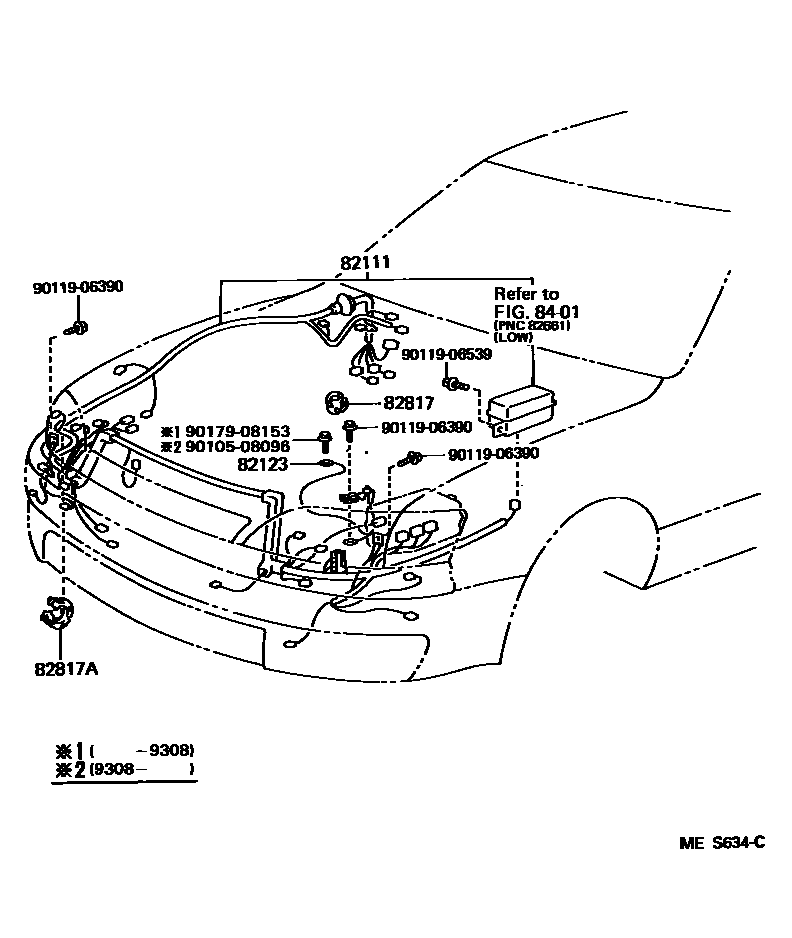

82111WIRE, ENGINE ROOM MAIN

main82111-33210iVCV10199112-199204

main82111-33211iVCV10199204-199308

main82111-33240iVCV10199110-199204

main82111-33241iVCV10199204-199308

main82111-33270iVCV10199112-199204

main82111-33271iVCV10199204-199308

main82111-33720iVCV1#199308-199408

main82111-33730iVCV1#199308-199408

main82111-33740iVCV10199308-199408

main82111-3T130iVCV1#199408-199608

main82111-3T140iVCV1#199408-199608

main82111-3T150iVCV10199408-199608

82123WIRE, ENGINE, NO.3

main82123-33010iVCV10199110-199308

main82123-33020iVCV1#199308-199608

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730iVCV1#199110-199608

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-06020iVCV1#199602-199608

main82817-2B200iVCV1#199110-199602

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508096

main90105-08096

9011906390

main90119-06390

9011906539

main90119-06539

9017908153

main90179-08153

9 parts on this diagram · 10 diagrams in section
