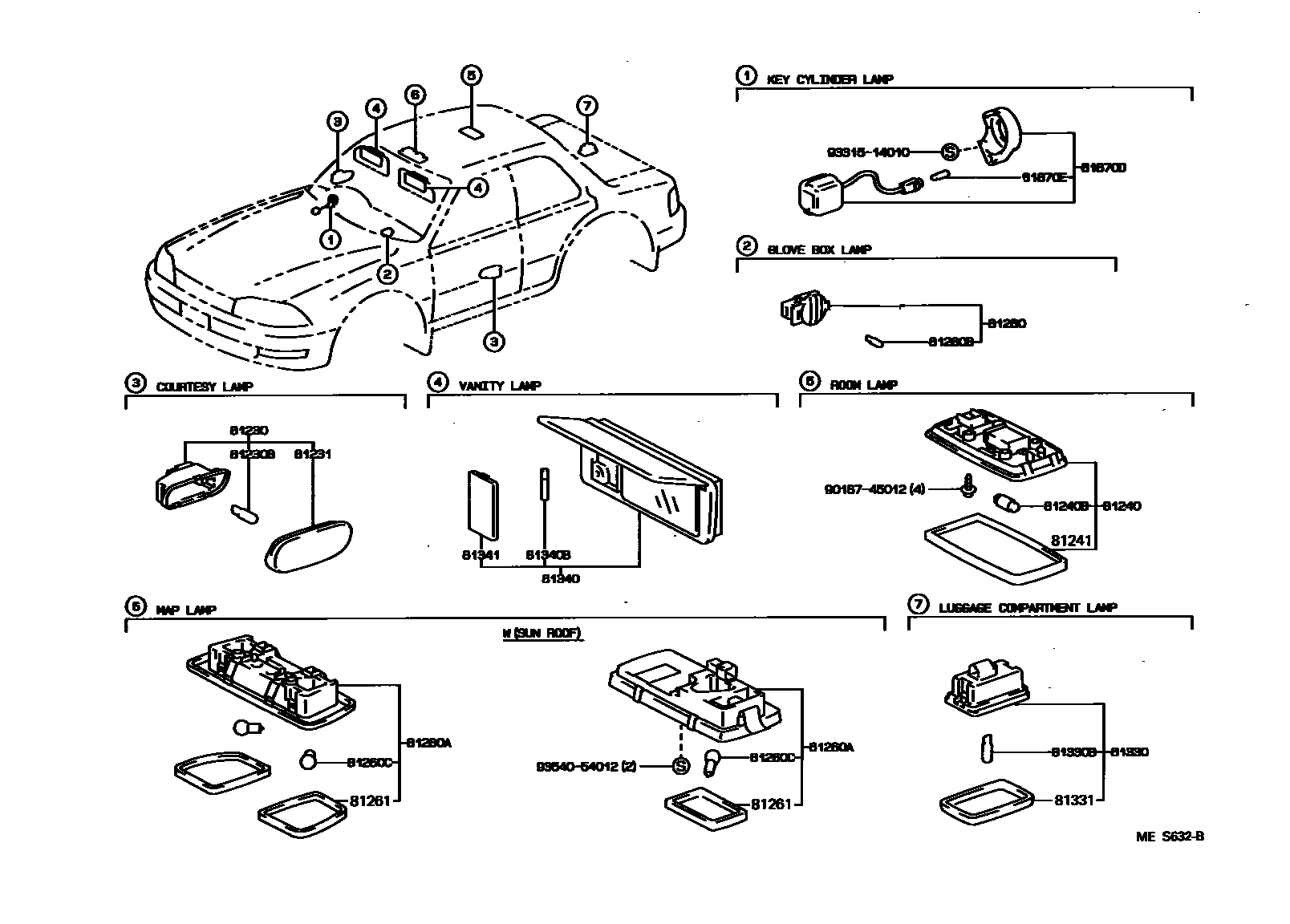

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-33010iVCV10199308-199408

main81310-33010iVCV1#199110-199608

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iVCV1#199110-199608

81231LENS, COURTESY LAMP

main81231-33010iVCV10199110-199308

main81311-33010iVCV1#199308-199608

81240LAMP ASSY, ROOM, NO.1

main81240-32031-A0iVCV10199110-199308

IVORY,TRIM0#

main81240-32031-E2iVCV1#199308-199408

LIGHT OAK,TRIM4#

main81240-32031-K1iVCV1#199110-199608

LIGHT TAUPE,TRIM9#

main81240-32031-S4iVCV1#199110-199608

MEDIUM GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iVCV1#199110-199608

81241LENS, ROOM LAMP, NO.1

main81241-32031iVCV1#199110-199608

81260LAMP ASSY, GLOVE BOX

main81260-33010iVCV10199110-199308

main81260-50010iVCV1#199308-199608

81260ALAMP ASSY, MAP

main81260-06020-A0iVCV10199204-199308

main81260-06020-B1iVCV1#199204-199608

main81260-06020-E0iVCV1#199308-199408

main81260-06020-K0iVCV1#199204-199608

main81260-32081-A0iVCV10199110-199308

IVORY,TRIM0#

main81260-32081-E1iVCV10199408-199608

LT.OAK,TRIM4#

main81260-32081-K0iVCV1#199110-199608

LIGHT TAUPE,TRIM9#

main81260-32081-S4iVCV1#199110-199608

GRAY,TRIM2#

main81260-32090-02iVCV10199110-199204

main81260-32090-08iVCV10199110-199204

main81260-32090-13iVCV10199110-199204

main81260-32090-E0iVCV1#199308-199408

main81260-32090-K1iVCV1#199206-199608

main81260-32090-S4iVCV1#199408-199608

81260BBULB(FOR GLOVE BOX)

main90981-11018iVCV10199110-199608

81260CBULB(FOR MAP LAMP)

main90981-12014×2iVCV1#199408-199608

main90981-12020×2iVCV1#199110-199608

81261LENS AND COVER, MAP LAMP

main81261-06020-A0iVCV10199204-199308

main81261-06020-B1iVCV1#199204-199608

main81261-06020-E0iVCV1#199308-199408

main81261-06020-K0iVCV1#199204-199608

main81261-32081-A0iVCV10199110-199308

IVORY,TRIM0#

main81261-32081-B1iVCV1#199110-199608

GRAY,TRIM2#

main81261-32081-E1iVCV1#199308-199408

LIGHT OAK,TRIM4#

main81261-32081-K0iVCV1#199110-199608

LIGHT TAUPE,TRIM9#

main81261-32090-02iVCV10199110-199204

main81261-32090-B0iVCV10199110-199204

main81261-32090-E0iVCV1#199308-199408

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50010iVCV1#199110-199608

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iVCV1#199110-199608

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010iVCV1#199110-199608

81340LAMP ASSY, VANITY

main81340-24030-A1iVCV10199110-199308

main81340-24030-B1iVCV1#199408-199508

LH,GRAY,GRAY,TRIM2#

main81340-24030-E1iVCV10199408-199508

LH,LIGHT OAK,LIGHT OAK,TRIM4#

main81340-24030-K0iVCV1#199110-199408

main81340-33110-B0iVCV10199408-199508

main81340-33110-E0iVCV10199308-199408

main81340-33110-K0iVCV10199408-199508

main81350-24010-01iVCV1#199110-199408

main81350-24010-02iVCV1#199110-199408

main81350-24010-10iVCV1#199408-199508

RH,GRAY,MD. GRAY,TRIM2#

main81350-24010-18iVCV10199110-199308

main81350-24010-E1iVCV10199408-199608

main81350-24010-K0iVCV1#199408-199608

main81350-33010-A0iVCV10199110-199308

main81350-33010-B0iVCV10; VCV11199408-199508

main81350-33010-E0iVCV1#199308-199408

main81350-33010-K0iVCV10; VCV11199408-199508

main81350-33020-B0iVCV10199408-199508

main81350-33020-E0iVCV10199408-199508

main81350-33020-K0iVCV10199408-199508

81340BBULB (FOR VANITY LAMP)

main90981-14007×2iVCV10199308-199408

81341LENS, VANITY LAMP

main81341-50010×2iVCV1#199110-199608

81870DLAMP ASSY, KEY CYLINDER

main81870-33020iVCV1#199110-199608

81870EBULB, KEY CYLINDER LAMP

main90981-11014iVCV1#199110-199608

9016745012

main90167-45012

9331514010

main93315-14010

9354054012

main93540-54012

22 parts on this diagram · 1 diagram in section
