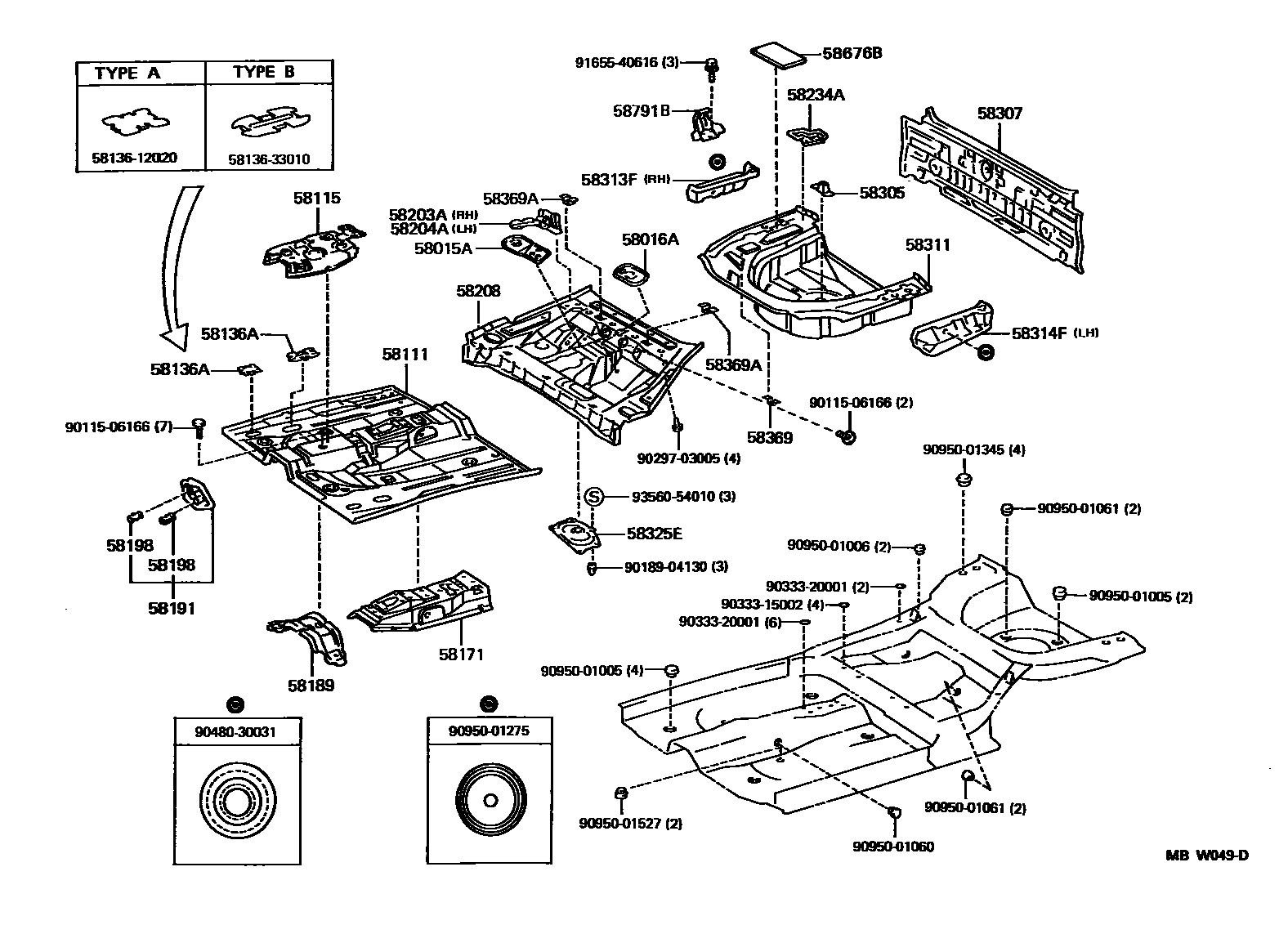

FLOOR PAN & LOWER BACK PANEL
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58198CLIP, FOOTREST
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
sub58311-06010
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58369BRACKET, INSULATOR HEAT
58369ABRACKET, FUEL TUBE, NO.3
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
58791BCARRIER, JACK
5813612020COVER, FRONT FLOOR HOLE
main58136-12020
5813633010COVER, FRONT FLOOR HOLE
main58136-33010
9011506166
main90115-06166
9018904130
main90189-04130
9029703005
main90297-03005
9033315002
main90333-15002
9033320001
main90333-20001
9048030031
main90480-30031
9095001005
main90950-01005
9095001006
main90950-01006
9095001060
main90950-01060
9095001061
main90950-01061
9095001275
main90950-01275
9095001527
main90950-01527
9095801345
main90958-01345
9165540616
main91655-40616
9356054010
main93560-54010
40 parts on this diagram · 1 diagram in section
