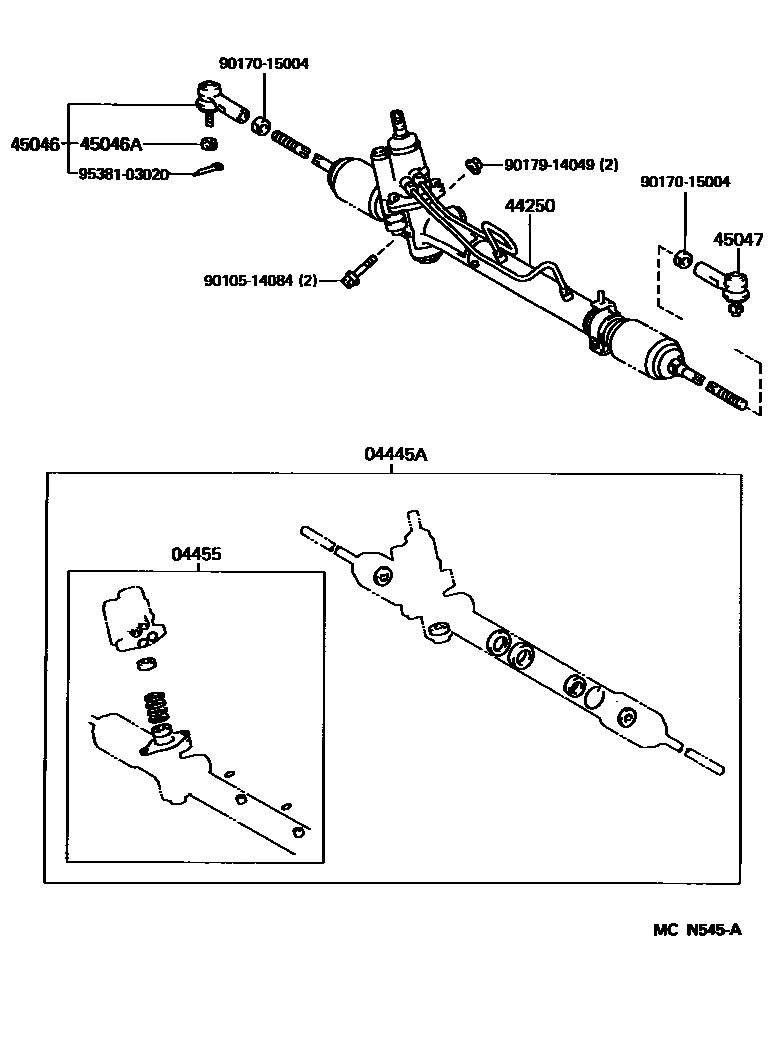

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33012iVCV11199308-199409

main04445-33021iVCV10199110-199205

sub04445-33022

main04445-33022iVCV10199205-199305

sub04445-33023

main04445-33023iVCV10199305-199409

main04445-33030iVCV11199409-199608

main04445-33040iVCV10199409-199602

sub04445-33060

main04445-33060iVCV10199602-199608

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10040iVCV10199408-199602

main04455-10050iVCV10199602-199608

main04455-33010iVCV10199110-199408

sub04455-10040

main04455-33020iVCV11199308-199608

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33090iVCV10199110-199305

sub44250-33091

main44250-33091iVCV10199305-199404

sub44250-33092

main44250-33092iVCV10199404-199409

sub44250-33093

main44250-33093iVCV10199409-199608

main44250-33120iVCV11199308-199404

sub44250-33121

main44250-33121iVCV11199404-199409

sub44250-33122

main44250-33122iVCV11199409-199608

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iVCV1#199110-199608

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iVCV1#199110-199608

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iVCV1#199110-199608

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

10 parts on this diagram · 2 diagrams in section
