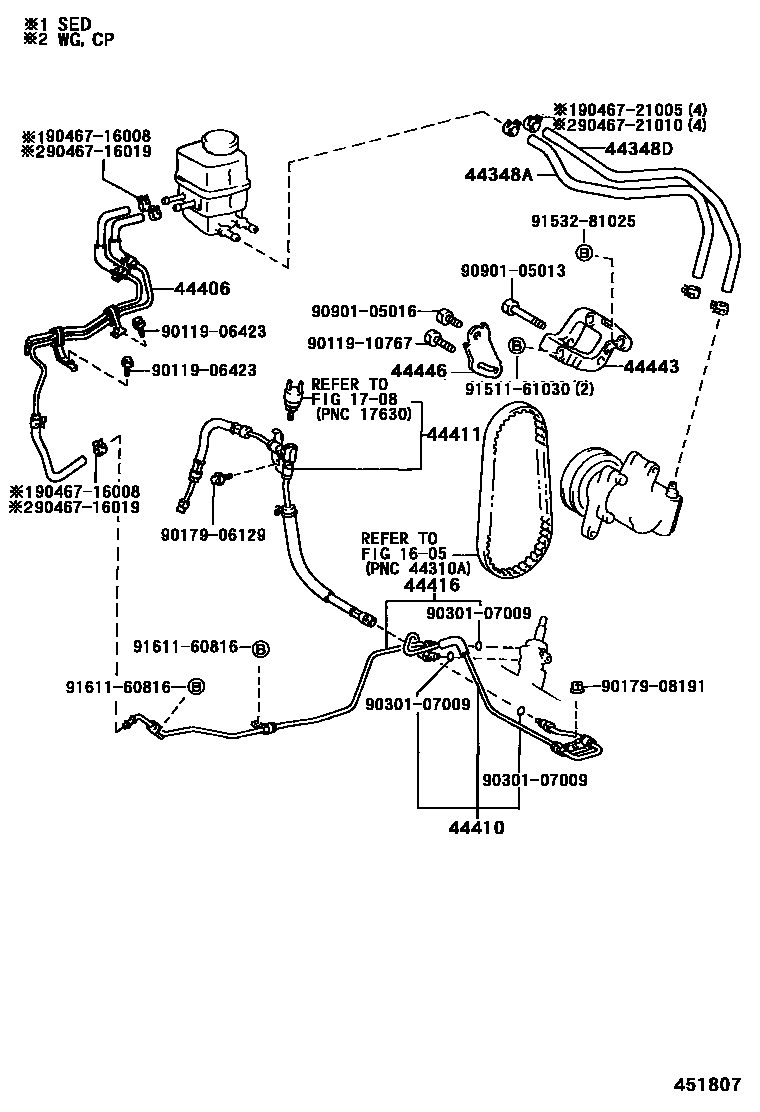

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

1708VACUUM PIPING

→ Go to FIG 17-08

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33030iVCV1#199110-199608

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-33040iVCV1#199110-199608

44406TUBE SUB-ASSY, RETURN

main44406-33010iVCV10199110-199202

main44406-33011iVCV10199202-199308

main44406-33012iVCV1#199308-199608

44410TUBE ASSY, PRESSURE FEED

main44410-33030iVCV11199308-199608

main44410-33060iVCV10199110-199608

44411HOSE, PRESSURE FEED

main44411-33010iVCV1#199110-199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33021iVCV11199308-199608

main44416-33050iVCV10199110-199211

main44416-33051iVCV10199211-199608

44443BRACKET, PUMP

main44443-32051iVCV11199308-199608

main44443-33010iVCV10199110-199608

44446STRUT, ADJUSTING

main44446-32020iVCV1#199110-199608

9011906423

main90119-06423

9011910767

main90119-10767

9017906129

main90179-06129

9017908191

main90179-08191

9030107009

main90301-07009

9046716008

main90467-16008

9046716019

main90467-16019

9046721005

main90467-21005

9046721010

main90467-21010

9090105013

main90901-05013

9090105016

main90901-05016

9151161030

main91511-61030

9153281025

main91532-81025

9161160816

main91611-60816

24 parts on this diagram · 1 diagram in section
