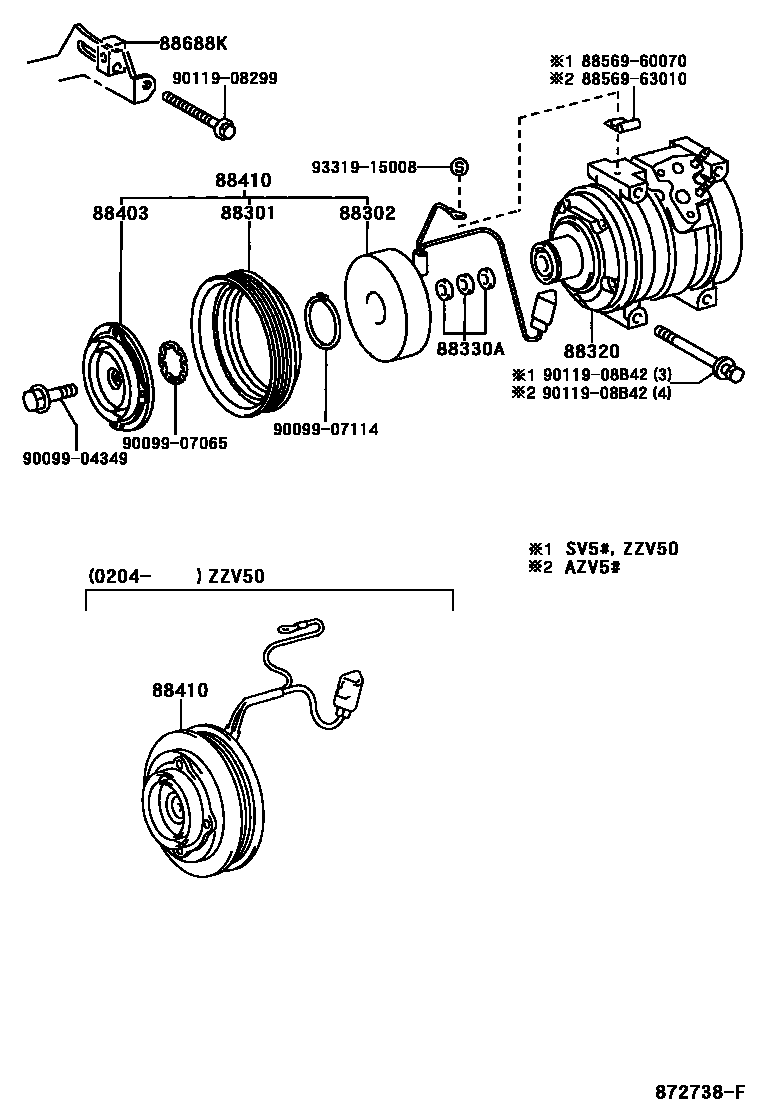

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-05010iAZV5#..SED200108

main88412-32080iSV5#..SED199806-200204

main88412-32090iZZV50..A180199806-199810

main88412-32100iZZV50..N180199806-199810

main88412-32120iZZV50199810-200204

main88412-42010iAZV5#..WG200108

main88412-48010iSV5#..WG199806-200204

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iAZV50,SV5#,ZZV50199806-200204

88320COMPRESSOR ASSY, COOLER

main88320-2B430iZZV50200204

main88320-32220iZZV50199806-199810

main88320-32230iSV5#199806-200204

main88320-32240iZZV50199810-200204

main88320-32250iAZV5#200108

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAZV5#,SV5#,ZZV50199806

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010iAZV50,SV5#,ZZV50199806-200204

88410CLUTCH ASSY, MAGNET

main88410-02110iZZV50200204

main88410-05010iAZV5#..SED200108

main88410-32160iSV5#..WG199806-200204

main88410-32170iSV5#..SED199806-200204

main88410-32180iZZV50..A180199806-199810

main88410-32190iZZV50..N180199806-199810

main88410-32200iZZV50199810-200204

main88410-42040iAZV5#..WG200108

88688KBRACKET, COOLER COMPRESSOR

main16385-64011iSV55199806-200204

main88688-2D810iSV50199806-200108

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

8856963010CLAMP (FOR COOLER RELAY)

main88569-63010

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908299

main90119-08299

9011908B42

main90119-08B42

9331915008

main93319-15008

15 parts on this diagram · 1 diagram in section
