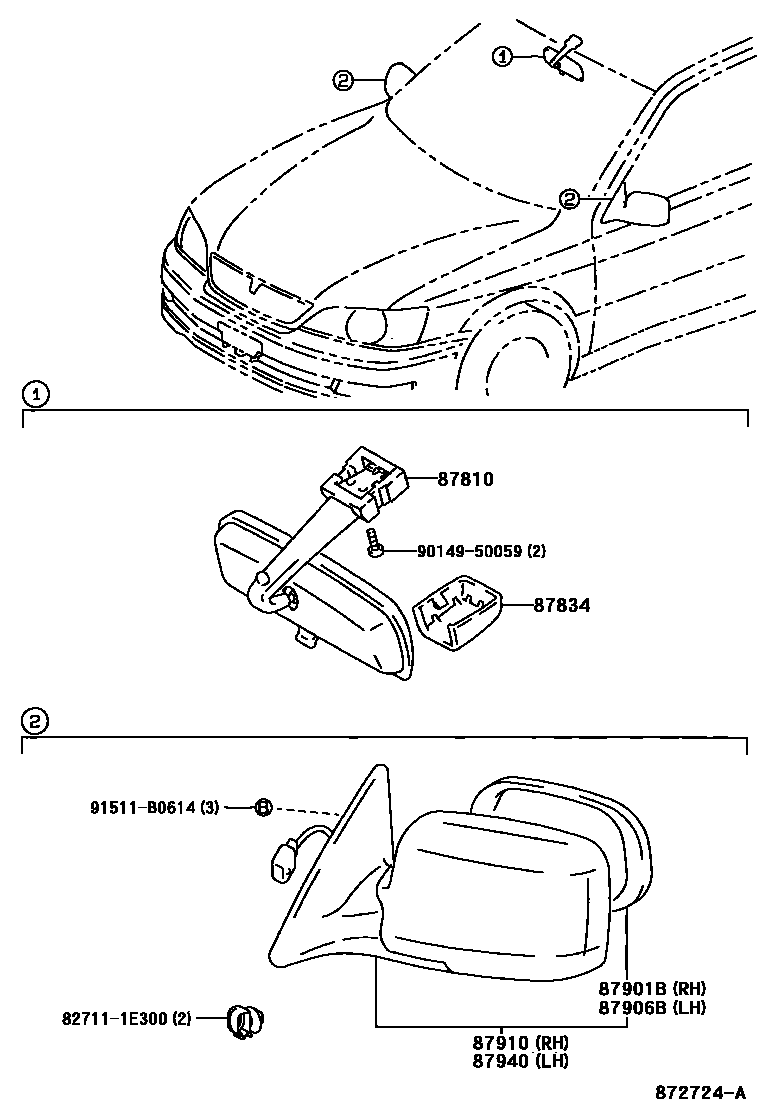

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22190-A0iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L199806-200208

IVORY,TRIM0#

main87810-22190-B5iAZV5#,SV5#,ZZV50200004

LT.GRAY,TRIM1#

main87810-22190-G0iSV5#,ZZV50199806-200004

AGATE,TRIM6#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A2iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L199806-200208

IVORY,TRIM0#

main87834-20080-B6iAZV5#,SV5#,ZZV50200004

LIGHT GRAY,TRIM1#

main87834-20080-G0iSV5#,ZZV50199806-200004

AGATE,TRIM6#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-32420iSV5#,ZZV50199806-200004

main87931-32620iAZV5#,SV5#,ZZV50200004

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-32610iSV5#,ZZV50199806-200004

main87961-32660iAZV5#,SV5#,ZZV50200004

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-32420-A0iSV5#,ZZV50199806-200004

main87910-32420-A1iSV5#,ZZV50199908-200004

main87910-32420-A1iSV5#,ZZV50199812-199907

main87910-32420-B0iSV5#,ZZV50199806-200004

main87910-32420-B1iSV5#,ZZV50199806-200004

main87910-32420-C0iSV5#,ZZV50199806-200004

main87910-32420-D0iSV5#,ZZV50199806-200004

main87910-32420-G0iSV5#,ZZV50199806-200004

main87910-32420-J0iSV5#,ZZV50199806-200004

main87910-32610-A0iSV55,ZZV50199806-200004

SUPER WHITE 2,040

main87910-32610-B0iSV55,ZZV50199806-200004

SILVER ME.GR.,1C5

main87910-32610-B1iSV55,ZZV50199806-200004

SILVER ME,199

main87910-32610-C0iSV55,ZZV50199806-200004

BLACK MC.,209

main87910-32610-D0iSV55,ZZV50199806-200004

RED MC.,3M8

main87910-32610-G0iSV55,ZZV50199806-200004

DK.GREEN MC.,6R4

main87910-32610-J0iSV55,ZZV50199806-200004

BLUE M.M.,8L5

main87910-32620-A0iAZV5#,SV5#,ZZV50200004

main87910-32620-A1iSV5#,ZZV50..N180,N200200012-200108

main87910-32620-A1iSV5#,ZZV50..A180,A200,A200G,N180,N200,N200G200004-200012

main87910-32620-A1iSV5#,ZZV50..A180,A200,A200G,N180,N200,N200G200004-200112

main87910-32620-B0iAZV50,SV5#,ZZV50200004-200204

main87910-32620-B1iAZV50,SV5#,ZZV50200004-200204

main87910-32620-B2iAZV50,SV55,ZZV50..A180S,A200S,N180E,N200E200112-200204

main87910-32620-D0iSV5#,ZZV50200004-200108

main87910-32620-E0iAZV5#,ZZV50200204

main87910-32620-G0iAZV50,SV5#,ZZV50200004-200204

main87910-32620-G1iAZV5#,ZZV50200204

main87910-32620-J0iAZV5#,SV5#,ZZV50200004

main87910-32630-A0iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

SUPER WHITE 2,040

main87910-32630-B0iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200204

SILVER ME.GR.,1C5

main87910-32630-B1iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200204

SILVER ME.,199

main87910-32630-B2iAZV55,ZZV50..A180E,A200E,N180E,N200E200112-200204

SILVER ME.,1C0

main87910-32630-D0iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200108

RED MC.,3M8

main87910-32630-E0iAZV55,ZZV50..A180E,A200E,N180E,N200E200204

BEIGE ME.,4P7

main87910-32630-G0iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200204

DARK GREEN MC.,6R4

main87910-32630-G1iAZV55,ZZV50..A180E,A200E,N180E,N200E200204

JADE GREEN M.M.,6S9

main87910-32630-J0iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

DK.BLUE M.M.,8P4

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-32610-A0iSV5#,ZZV50199806-200004

main87940-32610-A1iSV5#,ZZV50199812-199907

main87940-32610-A1iSV5#,ZZV50199908-200004

main87940-32610-B0iSV5#,ZZV50199806-200004

main87940-32610-B1iSV5#,ZZV50199806-200004

main87940-32610-C0iSV5#,ZZV50199806-200004

main87940-32610-D0iSV5#,ZZV50199806-200004

main87940-32610-G0iSV5#,ZZV50199806-200004

main87940-32610-J0iSV5#,ZZV50199806-200004

main87940-32650-A0iSV55,ZZV50199806-200004

SUPER WHITE 2,040

main87940-32650-B0iSV55,ZZV50199806-200004

SILVER ME.GR.,1C5

main87940-32650-B1iSV55,ZZV50199806-200004

SILVER ME,199

main87940-32650-C0iSV55,ZZV50199806-200004

BLACK MC.,209

main87940-32650-D0iSV55,ZZV50199806-200004

RED MC.,3M8

main87940-32650-G0iSV55,ZZV50199806-200004

DK.GREEN MC.,6R4

main87940-32650-J0iSV55,ZZV50199806-200004

BLUE M.M.,8L5

main87940-32660-A0iAZV5#,SV5#,ZZV50200004

main87940-32660-A1iSV5#,ZZV50..A180,A200,A200G,N180,N200,N200G200004-200112

main87940-32660-A1iSV5#,ZZV50..A180S,A200S,N180L,N200L200004-200012

main87940-32660-A1iSV5#,ZZV50..N180,N200200012-200108

main87940-32660-B0iAZV50,SV5#,ZZV50200004-200204

main87940-32660-B1iAZV50,SV5#,ZZV50200004-200204

main87940-32660-B2iAZV5#,ZZV50200112-200204

main87940-32660-D0iSV5#,ZZV50200004-200108

main87940-32660-E0iAZV5#,ZZV50200204

main87940-32660-G0iAZV50,SV5#,ZZV50200004-200204

main87940-32660-G1iAZV5#,ZZV50200204

main87940-32660-J0iAZV5#,SV5#,ZZV50200004

main87940-32670-A0iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

SUPER WHITE 2,040

main87940-32670-B0iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200204

SILVER ME.GR.,1C5

main87940-32670-B1iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200204

SILVER ME.,199

main87940-32670-B2iAZV55,ZZV50..A180E,A200E,N180E,N200E200112-200204

SILVER ME.,1C0

main87940-32670-D0iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200108

RED MC.,3M8

main87940-32670-E0iAZV55,ZZV50..A180E,A200E,N180E,N200E200204

BEIGE ME.,4P7

main87940-32670-G0iSV55,ZZV50..A180E,A200E,N180E,N200E200004-200204

DARK GREEN MC.,6R4

main87940-32670-G1iAZV55,ZZV50..A180E,A200E,N180E,N200E200204

JADE GREEN M.M.,6S9

main87940-32670-J0iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

DK.BLUE M.M.,8P4

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9014950059

main90149-50059

91511B0614

main91511-B0614

9 parts on this diagram · 1 diagram in section
