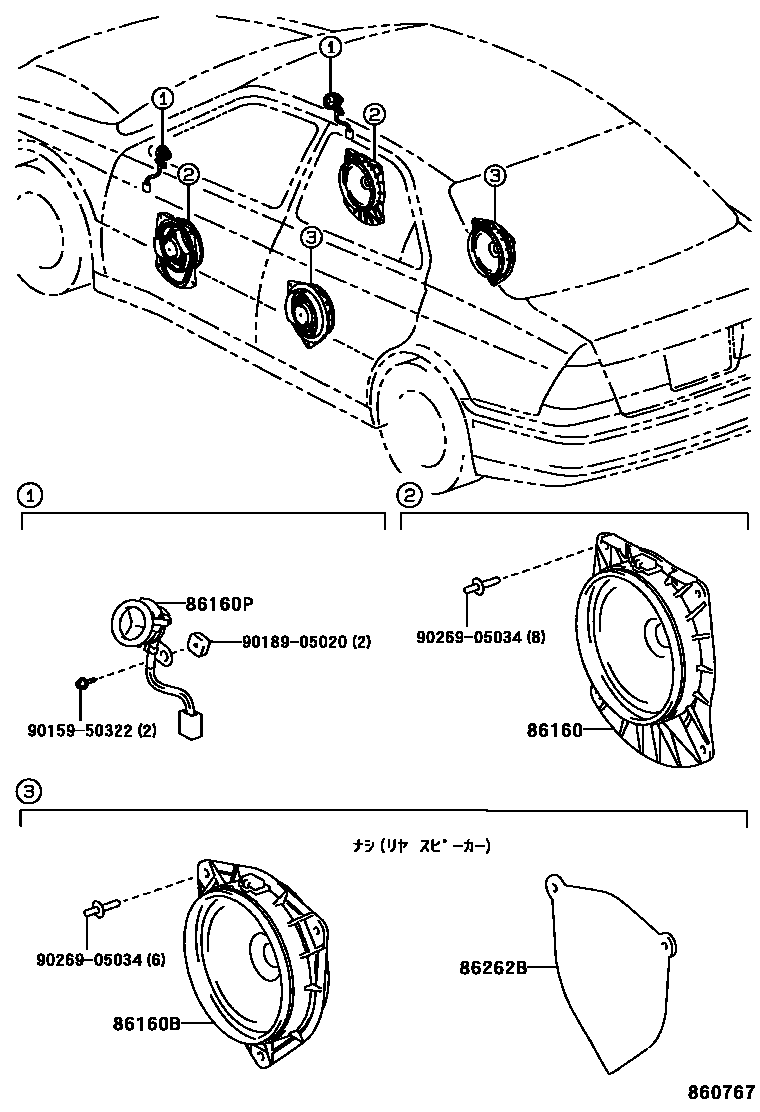

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-32480×2iAZV5#,SV5#,ZZV50199806

86160BSPEAKER ASSY, REAR

main86160-32510×2iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L199806-200112

86160PSPEAKER ASSY, FRONT NO.2

main86160-32490iAZV5#,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L200112

main86160-32500iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L199806-200112

86262BCOVER, SPEAKER, REAR

main86262-32020×2iSV55,ZZV50199806-200004

9015950322

main90159-50322

9018905020

main90189-05020

9026905034

main90269-05034

7 parts on this diagram · 1 diagram in section
