SEAT MOTOR & SEAT HEATER

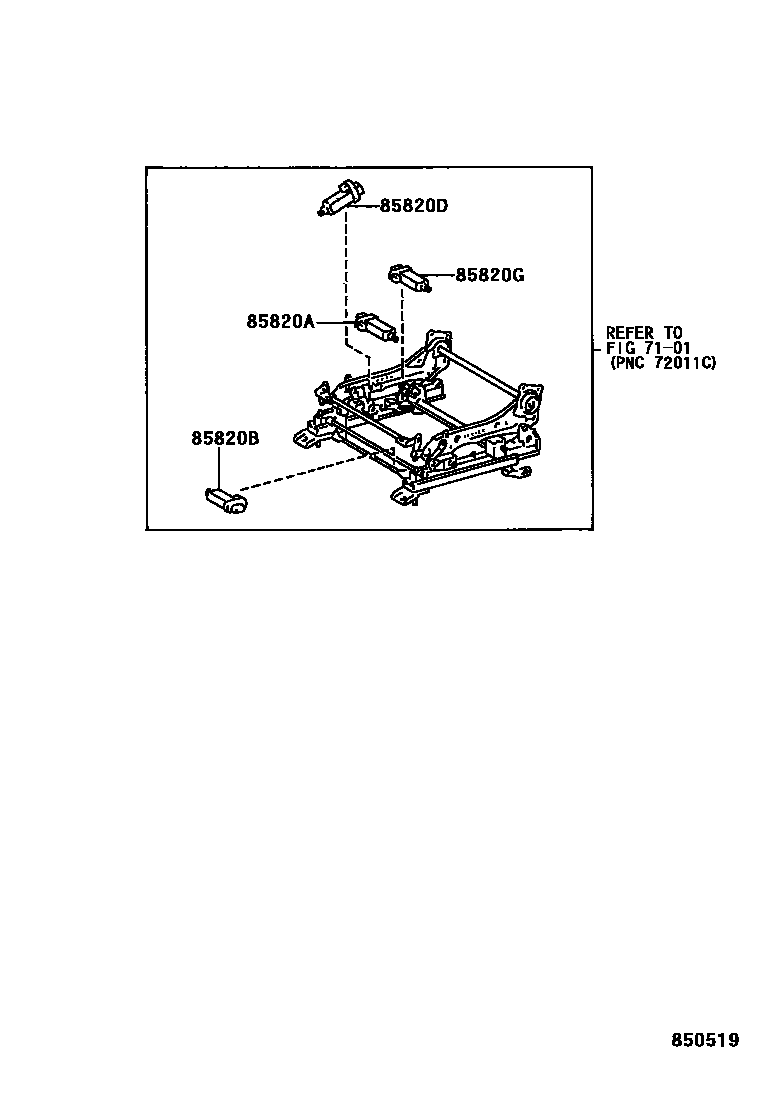

Parts diagram

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-30510i199806-200004

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-30510i199806-200004

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85820-30570i199806-200004

85820GMOTOR ASSY, POWER SEAT

main85820-30510i199806-200004

5 parts on this diagram · 1 diagram in section
