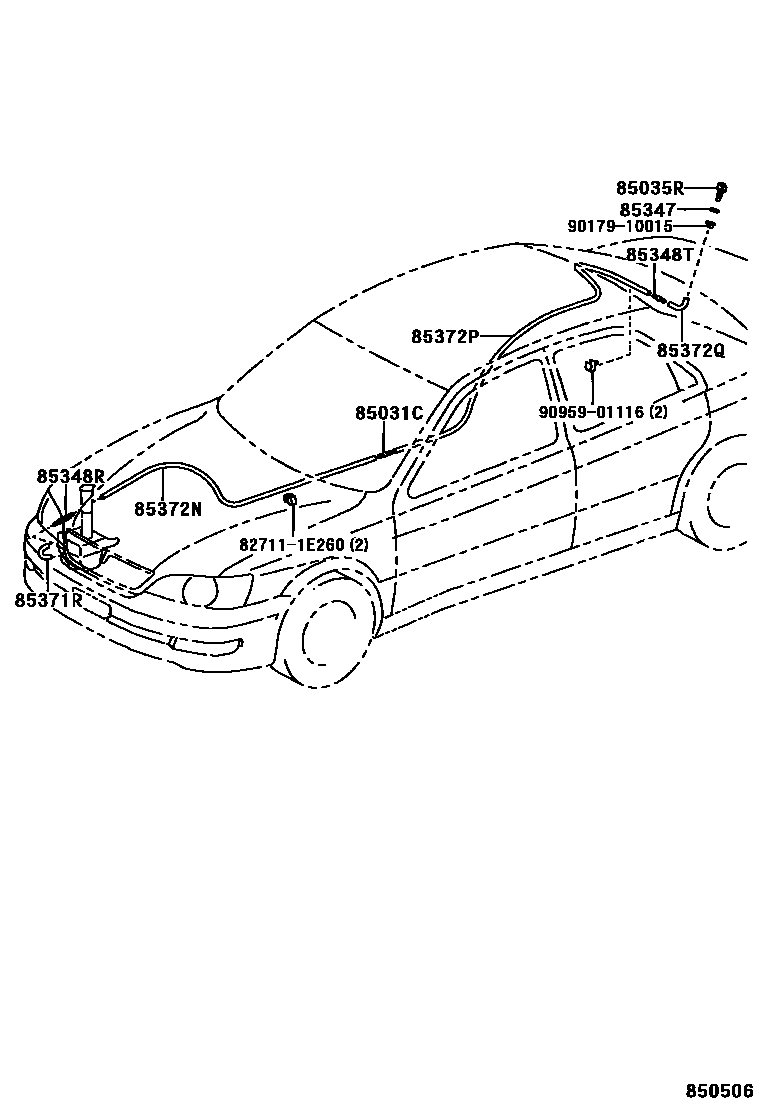

REAR WASHER

0001 1 0002 1

85031CVALVE SUB-ASSY, WASHER

main85375-12520iAZV5#,SV5#,ZZV50..SED199806

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-32050iAZV5#,SV5#,ZZV50..SED199806

sub85391-22060

main85391-32060iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G199806

main85391-32070iSV5#,ZZV50..WG199806-200004

85347PACKING, REAR WASHER

main85347-12010iAZV5#,SV5#,ZZV50..SED199806

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iAZV5#,SV5#,ZZV50..SED199806

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iAZV5#,SV5#,ZZV50..SED199806

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iSV5#,ZZV50199806-200004

main90099-33080iAZV5#,SV5#,ZZV50199806

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33589iAZV5#,SV5#,ZZV50..SED199806

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iSV5#,ZZV50..SED199806-199808

main90099-33589iAZV5#,SV5#,ZZV50..SED199808

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85374-32030iAZV5#,SV5#,ZZV50..SED199806

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9017910015

main90179-10015

9095901116

main90959-01116

12 parts on this diagram · 2 diagrams in section
