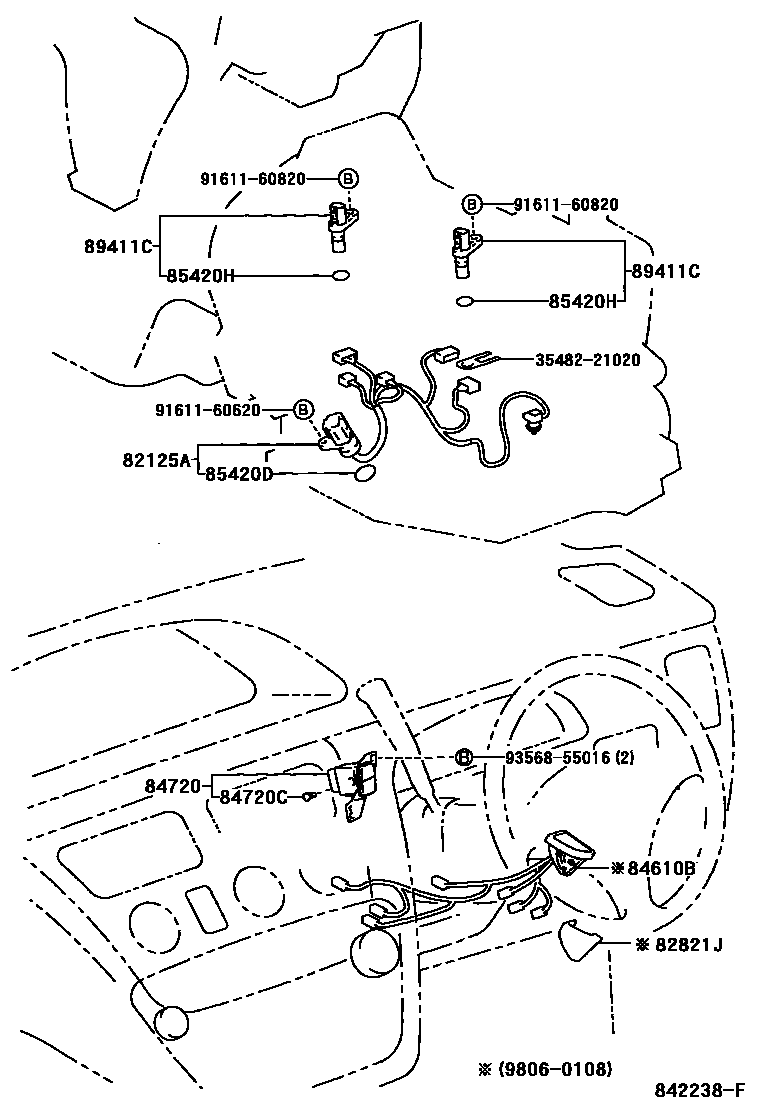

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1 0004 1

82125AWIRE, TRANSMISSION

main82125-20260iZZV50200004

main82125-21030iSV5#,ZZV50199806-200004

main82125-28180iSV55200109-200204

main82125-44010iAZV5#200108

82821JCOVER, CONNECTOR(FOR SHIFT CONTOROL SWITCH)

main82821-32220-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main82821-32220-B1iSV5#..A200S200004-200108

DK.GRAY,TRIM1#

main82821-32220-E0iSV5#..A200S200004-200108

SANDAL WOOD,TRIM0#

main82821-32220-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

84610BSWITCH ASSY, TRANSMISSION SHIFT, MAIN

main84610-32020-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main84610-32020-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

main84610-32030-B0iSV5#..A200S200004-200108

DK.GRAY,TRIM1#

main84610-32030-E0iSV5#..A200S200004-200108

SANDAL WOOD,TRIM0#

84720SWITCH ASSY, PATTERN SELECT

main84720-32090iAZV50,SV50,ZZV50199806

main84720-32100iAZV55,SV55199806

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-09007iAZV50,SV50,ZZV50199806

main90010-09008iAZV55,SV55199806

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-21009iAZV5#,SV5#,ZZV50199806

85420HRING, O(FOR SPEED SENSOR)

main90301-11008iZZV50200004

89411CSENSOR, SPEED

main89411-33010×2iSV5#,ZZV50199806-200004

main89413-24010×2iSV5#,ZZV50199806-200004

main89413-32010iZZV50200004

sub89413-32011

3548221020VALVE, GOVERNOR

main35482-21020

9161160620

main91611-60620

9161160820

main91611-60820

9356855016

main93568-55016

12 parts on this diagram · 3 diagrams in section
