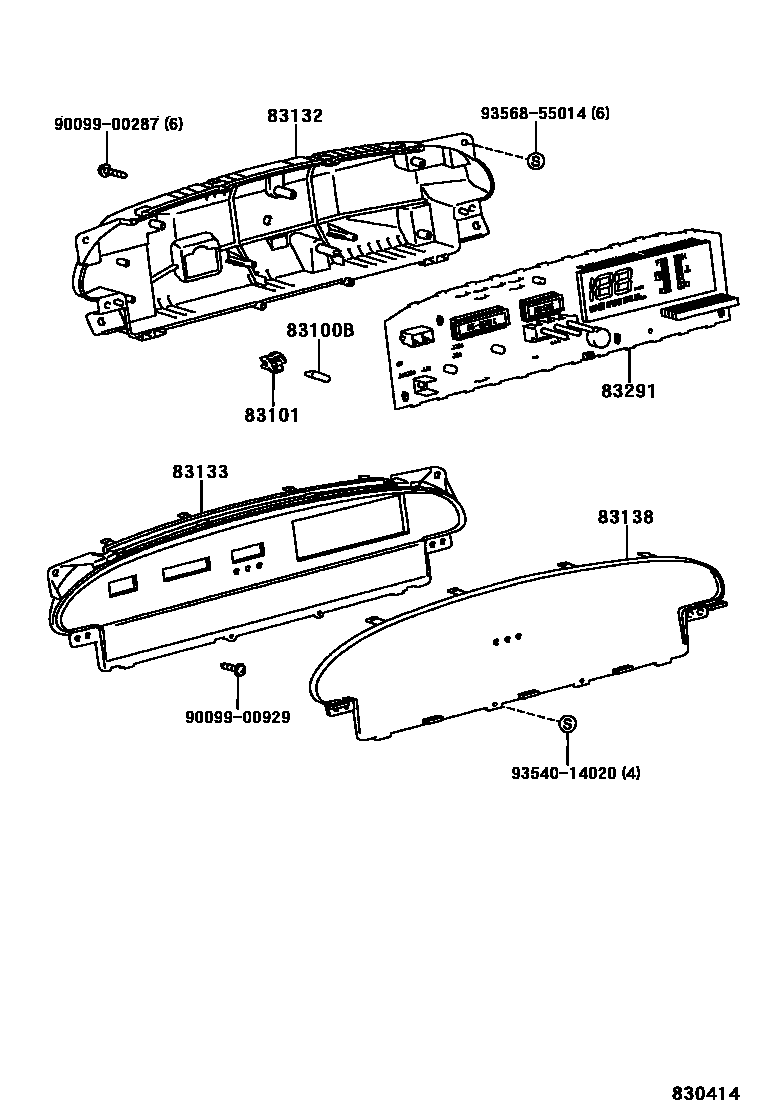

METER

0001 1 0002 1��(��������-���) 0003 1��(�����-���) 0004 1���-�����

83100BBULB, COMBINATION METER, NO.1

main90099-53009iSV5#,ZZV50199806-200004

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iSV5#,ZZV50199806-200004

83132CASE, COMBINATION METER

main83841-32010iSV5#,ZZV50199806-200004

main83841-32030iSV50,ZZV50199806-200004

main83841-32050iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E199806-200208

main83841-32100iAZV5#,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L200112

main83841-32120iAZV5#,SV55,ZZV50..A180S,A200S,N180L,N200L200108

83133PLATE, COMBINATION METER, NO.1

main83811-32010iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L199806-200112

main83811-32030iSV5#,ZZV50..A180S,A200S,N180,N180L,N200,N200L200012-200108

main83811-32050iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E199806-200208

83138GLASS, SPEEDOMETER

main83852-32010iAZV5#,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L200112

main83852-32030iSV5#,ZZV50..A180S,A200S,N180L,N200L200004-200012

main83852-32050iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E200208

83291COMPUTER, COMBINATION METER

main83291-32220iSV50,ZZV50199806-200004

main83291-32230iSV55199806-200004

main83291-32240iSV50,ZZV50199806-200004

main83291-32250iSV55199806-200004

main83291-32260iSV50,ZZV50199806-200004

main83291-32270iSV55199806-200004

main83291-32280iAZV50,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200G,N200L200112

main83291-32290iAZV55,SV55..A200,A200G,A200S,N200,N200E,N200G,N200L200112

main83291-32300iSV50,ZZV50..A180S,A200S,N180,N180L,N200,N200L200012-200108

main83291-32310iAZV55,SV55..A200S,N200L200108

main83291-32320iAZV50,SV50,ZZV50..A180,A180E,A200,N180,N180E,N200200004-200208

main83291-32330iAZV55..A200,A200E,A200S,N200,N200E200208

9009900287

main90099-00287

9009900929

main90099-00929

9354014020

main93540-14020

9356855014

main93568-55014

10 parts on this diagram · 4 diagrams in section
