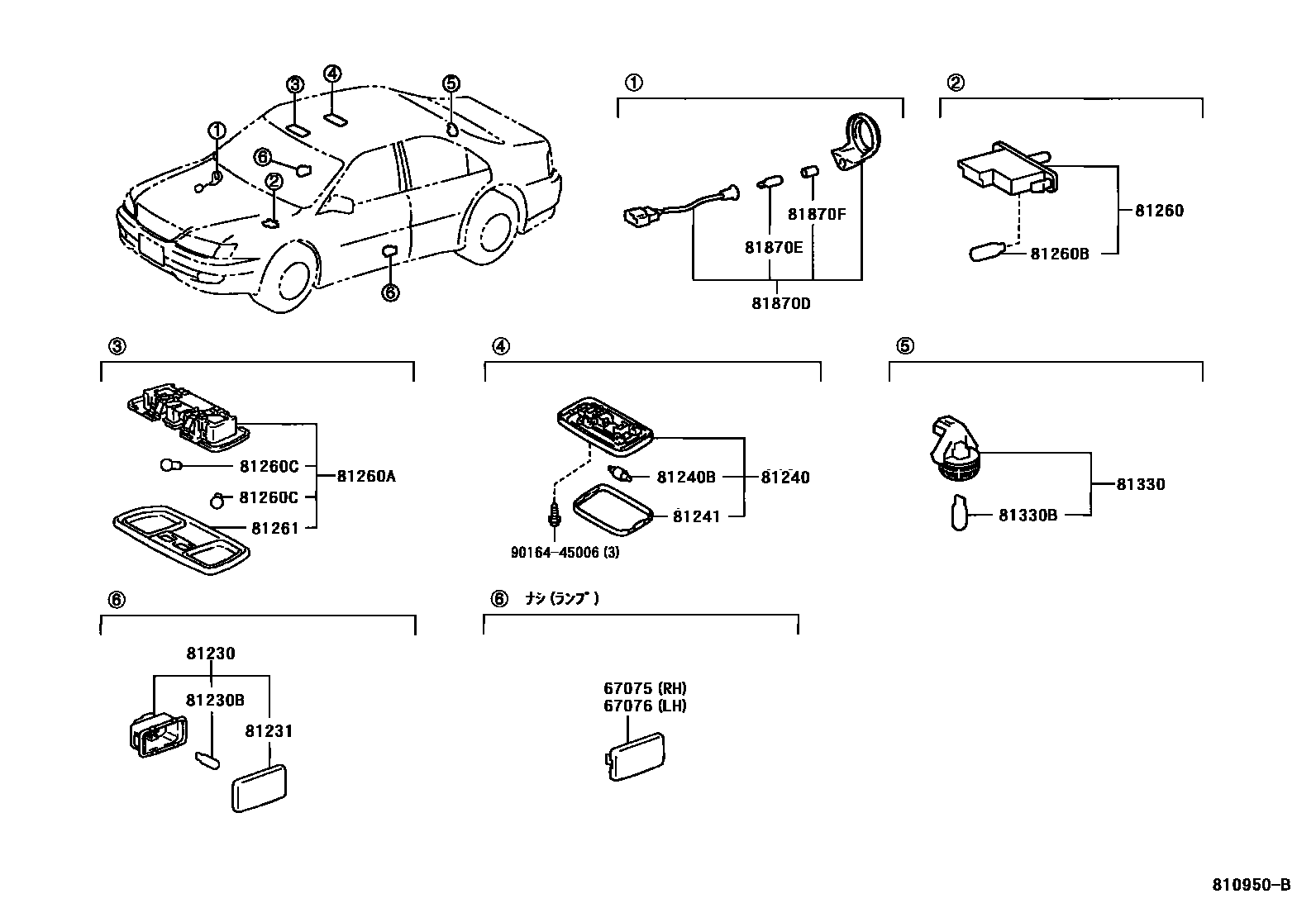

INTERIOR LAMP
67075REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH
main67665-20020iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L199806
67076REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH
main67665-20020iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L199806
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM0#
AGATE,TRIM6#
main81260-22180-A0iAZV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L200208
IVORY,TRIM0#
sub81260-22190
LT.GRAY,TRIM1#
sub81260-22190
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
main90981-12020×2iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L199806-200112
81261LENS AND COVER, MAP LAMP
main81261-32081-A2iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L200012-200112
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
AGATE,TRIM6#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
81870FCAP, KEY CYLINDER LAMP BULB
9016445006
main90164-45006
19 parts on this diagram · 2 diagrams in section
