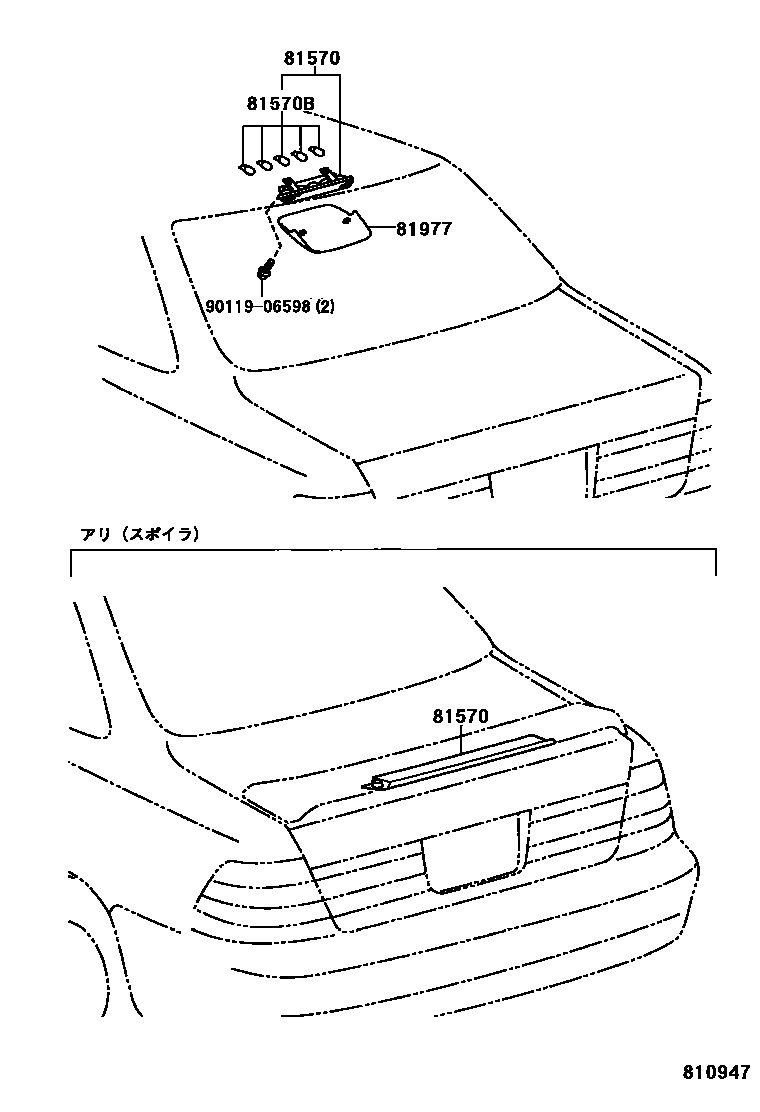

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-32150iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G199806

main81570-32160iAZV5#,SV5#,ZZV50..A180S,A200G,A200S200004

main81570-32170iSV5#,ZZV50..SED199806-200004

main81570-32180iAZV5#,SV5#,ZZV50..SED199806

81570BBULB (FOR CENTER STOP LAMP)

main99132-12050×5iAZV5#,SV5#,ZZV50..SED199806

81977COVER, CENTER STOP LAMP

main81977-32080iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G199806

main81977-32090-A0iSV5#,ZZV50..SED199806-200004

IVORY,TRIM0#

main81977-32090-A1iAZV5#,SV5#,ZZV50..SED200004

IVORY,TRIM0#

main81977-32090-B0iAZV5#,SV5#,ZZV50..SED200004

LT. GRAY,TRIM1#

main81977-32090-G0iSV5#,ZZV50..SED199806-200004

AGATE,TRIM6#

9011906598

main90119-06598

4 parts on this diagram · 2 diagrams in section
