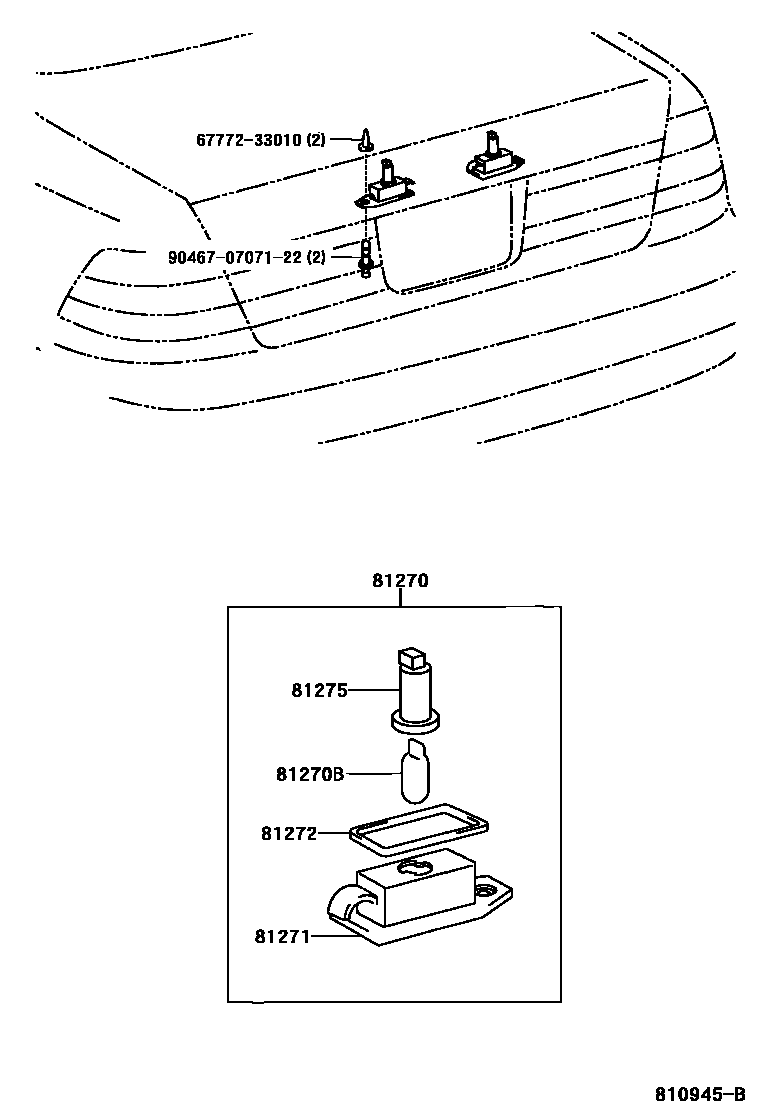

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-AA010×2iAZV5#,SV5#,ZZV50..SED199806

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iAZV5#,SV5#,ZZV50..SED; AZV5#,SV5#,ZZV50..WG199806

81271LENS, LICENSE PLATE LAMP

main81271-32250iAZV5#,SV5#,ZZV50..WG199806

main81271-AA010×2iAZV5#,SV5#,ZZV50..SED199806

81272GASKET, LICENSE PLATE LAMP LENS

main81272-AA011×2iAZV5#,SV5#,ZZV50..SED199806

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-32250iAZV5#,SV5#,ZZV50..WG199806

main81275-AA010×2iAZV5#,SV5#,ZZV50..SED199806

6777233010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-33010

904670707122

main90467-0707122

7 parts on this diagram · 2 diagrams in section
