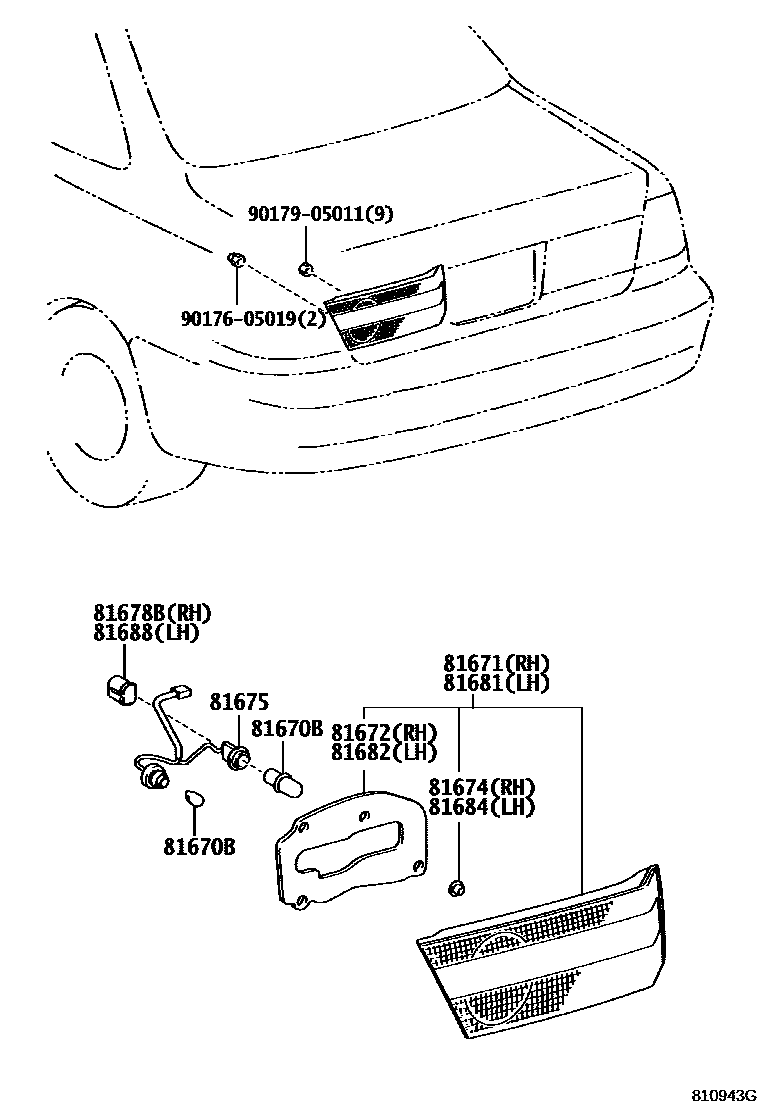

BACK UP LAMP

0001 1 0002 1

81670BBULB(FOR BACK-UP LAMP)

main90981-11039×2iSV5#,ZZV50199806-200004

main90981-11059×2iAZV5#,SV5#,ZZV50200004

main99132-12050×2iAZV5#,SV5#,ZZV50199806

81671LENS, BACK-UP LAMP, RH

main81671-32120iSV5#,ZZV50..WG199806-200004

main81671-32130iSV5#,ZZV50..SED199806-200004

main81671-32140iSV5#,ZZV50..SED199901-199912

main81671-32150iAZV5#,SV5#,ZZV50..SED200004

main81671-32160iAZV5#,SV5#,ZZV50..WG200004

81672GASKET, BACK-UP LAMP LENS, RH

main81672-32120iAZV5#,SV5#,ZZV50..WG199806

main81672-32130iAZV5#,SV5#,ZZV50..SED199806

81674GASKET, BACK-UP LAMP BODY, RH

main81554-32150iAZV5#,SV5#,ZZV50..WG199806

81675SOCKET & WIRE, BACK-UP LAMP

main81675-32120×2iAZV5#,SV5#,ZZV50..WG199806

main81675-32130×2iAZV5#,SV5#,ZZV50..SED199806

81678BPROTECTOR, BACK UP LAMP, RH

main81678-32130iAZV5#,SV5#,ZZV50..SED199806

81681LENS, BACK-UP LAMP, LH

main81681-32060iSV5#,ZZV50..WG199806-200004

main81681-32070iSV5#,ZZV50..SED199901-199912

main81681-32080iAZV5#,SV5#,ZZV50..SED200004

main81681-32120iAZV5#,SV5#,ZZV50..WG200004

main81681-32130iSV5#,ZZV50..SED199806-200004

81682GASKET, BACK UP LAMP LENS, LH

main81672-32120iAZV5#,SV5#,ZZV50..WG199806

main81672-32130iAZV5#,SV5#,ZZV50..SED199806

81684GASKET, BACK UP LAMP BODY, LH

main81554-32150iAZV5#,SV5#,ZZV50..WG199806

81688PROTECTOR, BACK UP LAMP, LH

main81678-32130iAZV5#,SV5#,ZZV50..SED199806

9017605019

main90176-05019

9017905011

main90179-05011

12 parts on this diagram · 2 diagrams in section
