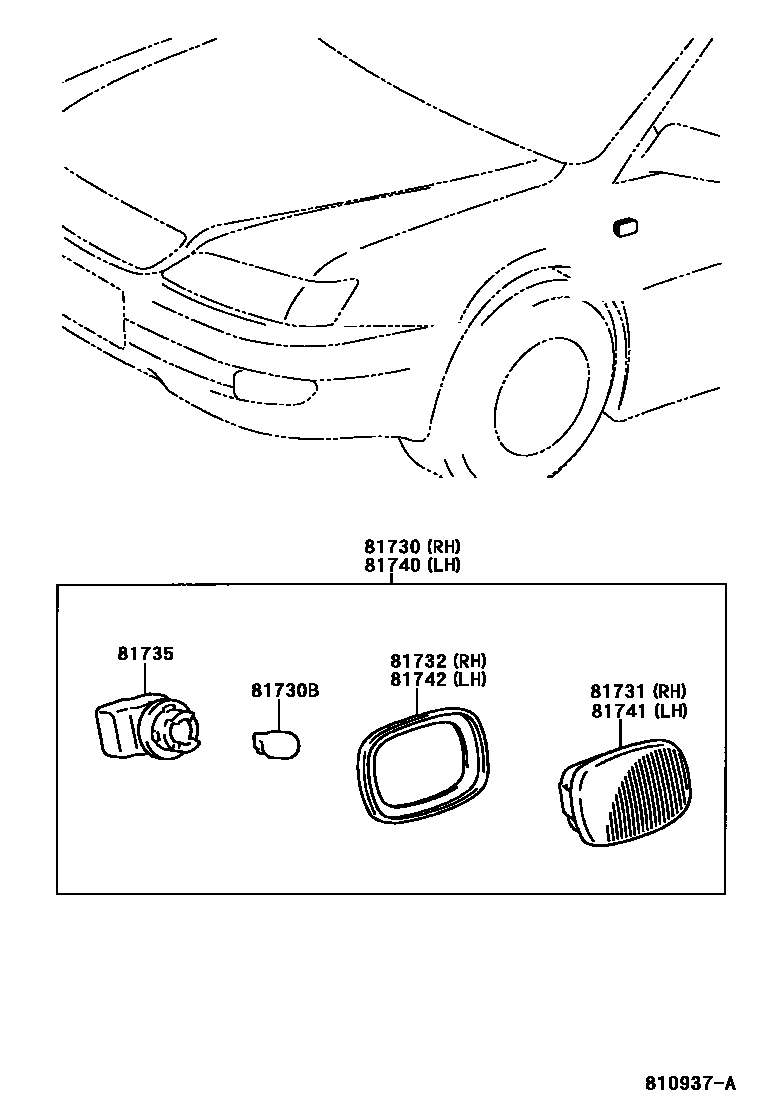

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-17051iAZV5#,SV5#,ZZV50199806

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iAZV5#,SV5#,ZZV50199806

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17051iAZV5#,SV5#,ZZV50199806

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-17050iAZV5#,SV5#,ZZV50199806

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-99012×2iAZV5#,SV5#,ZZV50199806

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-17051iAZV5#,SV5#,ZZV50199806

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-17051iAZV5#,SV5#,ZZV50199806

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-17050iAZV5#,SV5#,ZZV50199806

8 parts on this diagram · 1 diagram in section
