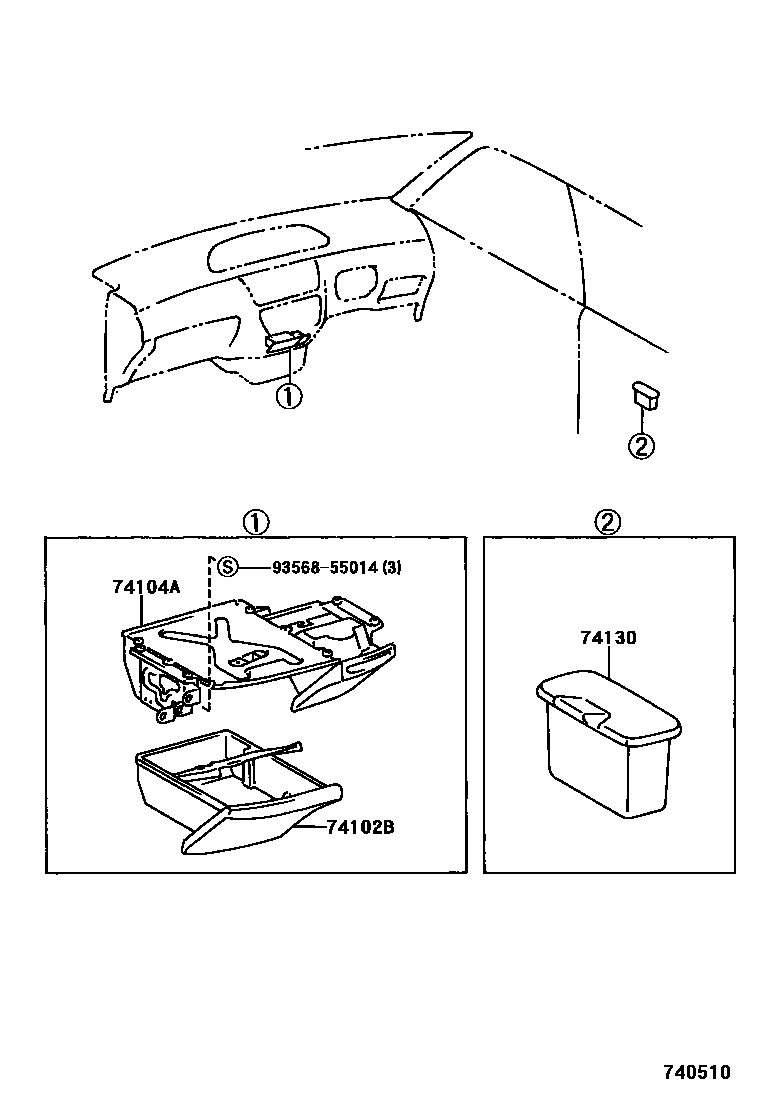

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-32090-A0iAZV50,SV5#,ZZV50199806-200112

IVORY,TRIM0#

main74102-32090-B0iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main74102-32090-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-32080-A0iAZV5#,ZZV50200208

IVORY,TRIM0#

main74104-32080-B0iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main74104-32080-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

74130RECEPTACLE ASSY, REAR ASH

main74130-32040-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main74130-32040-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

main74130-32050-A0iAZV5#,SV5#,ZZV50..A180,A200,A200G,N180,N180L,N200,N200G,N200L200004

IVORY,TRIM0#

main74130-32050-B0iAZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L200004

STONE,TRIM1#

main74130-32050-C0iAZV5#,ZZV50..A180S,A200S200208

BLACK,TRIM0#

main74130-32060-A0iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

IVORY,TRIM0#

main74130-32060-B0iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

STONE,TRIM1#

main74130-32070-C0iSV5#,ZZV50..A180S,A200S; SV5#,ZZV50..N180,N200200012-200112

main74130-32080-C0iAZV55,SV55,ZZV50..N180E,N200E200112

9356855014

main93568-55014

4 parts on this diagram · 1 diagram in section
