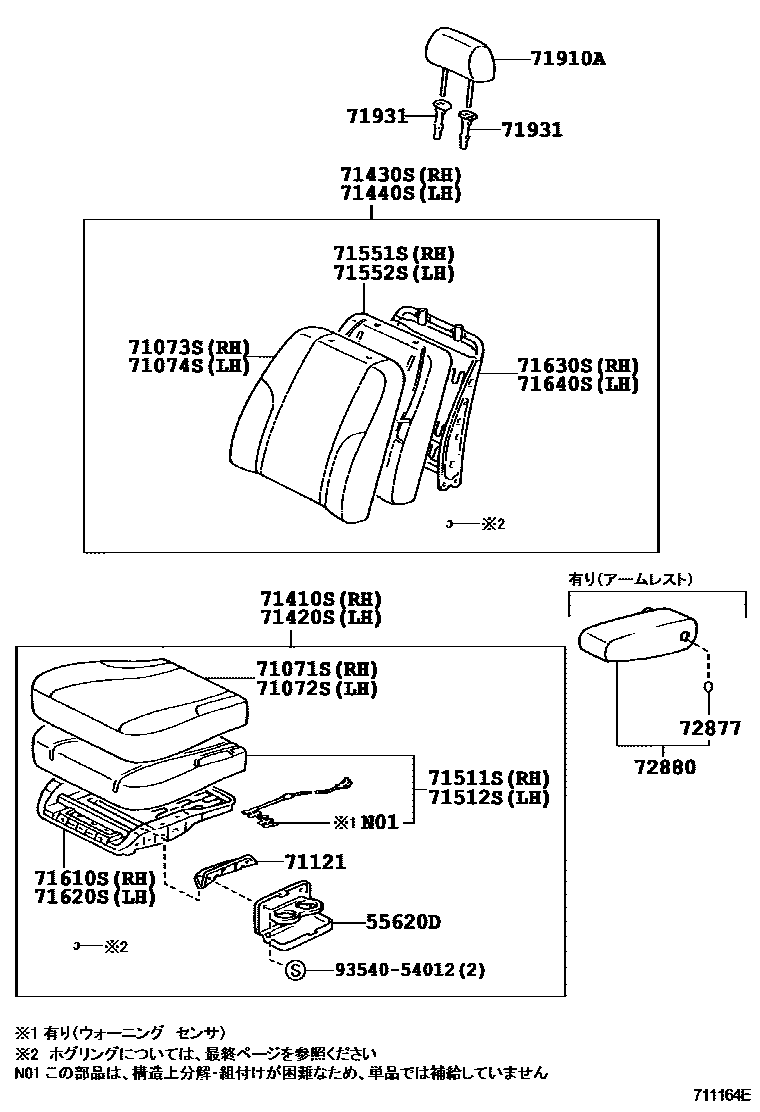

FRONT SEAT & SEAT TRACK
55620DHOLDER ASSY, FRONT SEAT CUP
IVORY,TRIM0#
STONE,TRIM1#
DK.GRAY,TRIM1#
AGATE,TRIM6#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-3H162-B4iAZV55..A200;AZV50,SV5#,ZZV50..A180,A180S,A200,A200S,N180,N180E,N200,N200E,N200L200004
71121BRACKET, FRONT SEAT CUSHION, RH
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-32200iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200G,A200S,N180,N180L,N200,N200G,N200L200208
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-32230iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L199806
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-32230iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200G,A200S,N180,N180L,N200,N200G,N200L200208
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
sub71930-60030
sub71930-60030
main71930-28040-P0×2iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200004
sub71930-60030
sub71930-60030
main71931-28050-P0×2iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200004
72877COVER, SEAT ARMREST, RH
main72877-32070-A0iAZV5#,SV55,ZZV50..A180,A200,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200112-200208
IVORY,TRIM0#
STONE,TRIM1#
DK.GRAY,TRIM1#
MIST GREEN,TRIM6#
9354054012
main93540-54012
23 parts on this diagram · 7 diagrams in section
