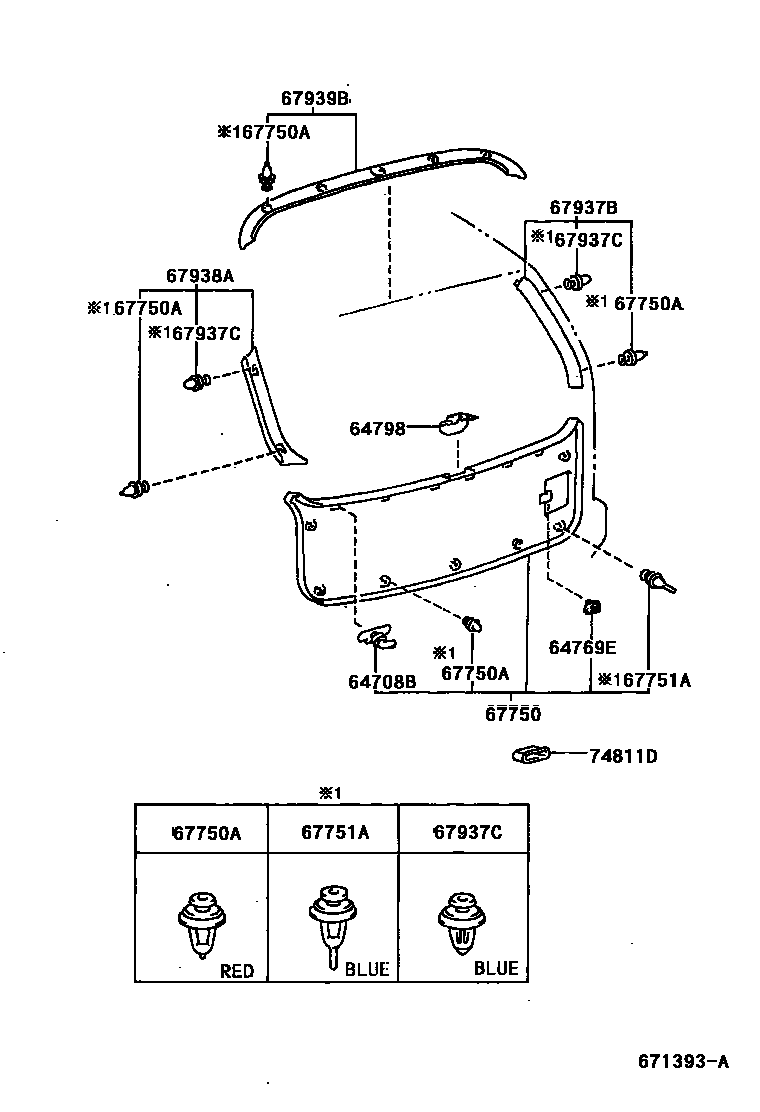

BACK DOOR PANEL & GLASS

0001 1 0002 1

64708BCLIP, BACK DOOR TRIM

main67159-32020×5iAZV5#,SV5#,ZZV50..WG199806

64769EKNOB, JACK COVER

main64769-20010-A0×2iAZV50,SV5#,ZZV50..WG199806-200112

IVORY,TRIM0#

main64769-20010-B1×2iAZV5#,SV5#,ZZV50..WG200004

STONE,TRIM1#

main64769-20010-G0×2iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

64798COVER, BACK DOOR LOCK

main64798-32010-A0iAZV50,SV5#,ZZV50..WG199806-200112

IVORY,TRIM0#

main64798-32010-B0iAZV5#,SV5#,ZZV50..WG200004

STONE,TRIM1#

main64798-32010-G0iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

67750BOARD ASSY, BACK DOOR TRIM

main67750-32030-A0iAZV50,SV5#,ZZV50..WG199806-200112

IVORY,TRIM0#

main67750-32030-B1iAZV5#,SV5#,ZZV50..WG200004

STONE,TRIM1#

main67750-32030-G0iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

67750ACLIP(FOR BACK DOOR TRIM)

main67771-12050×12iSV5#,ZZV50..WG199806-199809

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10151×2iSV5#,ZZV50..WG199806-199809

67937BGARNISH, BACK DOOR SIDE, RH

main67937-32010-A0iAZV50,SV5#,ZZV50..WG199806-200112

IVORY,TRIM0#

main67937-32010-B0iAZV5#,SV5#,ZZV50..WG200004

LT. GRAY,TRIM1#

main67937-32010-G0iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-10167×2iAZV5#,SV5#,ZZV50..WG199806

67938AGARNISH, BACK DOOR SIDE, LH

main67938-32010-A0iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G200112-200208

IVORY,TRIM0#

main67938-32010-B0iAZV5#,SV5#,ZZV50..WG200004

LT. GRAY,TRIM1#

main67938-32010-G0iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

67939BGARNISH, BACK DOOR, CENTER

main67939-32010-A0iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G200112-200208

IVORY,TRIM0#

main67939-32010-B0iAZV5#,SV5#,ZZV50..WG200004

LT. GRAY,TRIM1#

main67939-32010-G0iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

74811DHANDLE, DOOR PULL

main74811-13010-A0iAZV5#,ZZV50..WG200208

IVORY,TRIM0#

main74811-13010-B8iAZV5#,SV5#,ZZV50..WG200004

STONE,TRIM1#

main74811-13010-G0iSV5#,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

11 parts on this diagram · 2 diagrams in section
