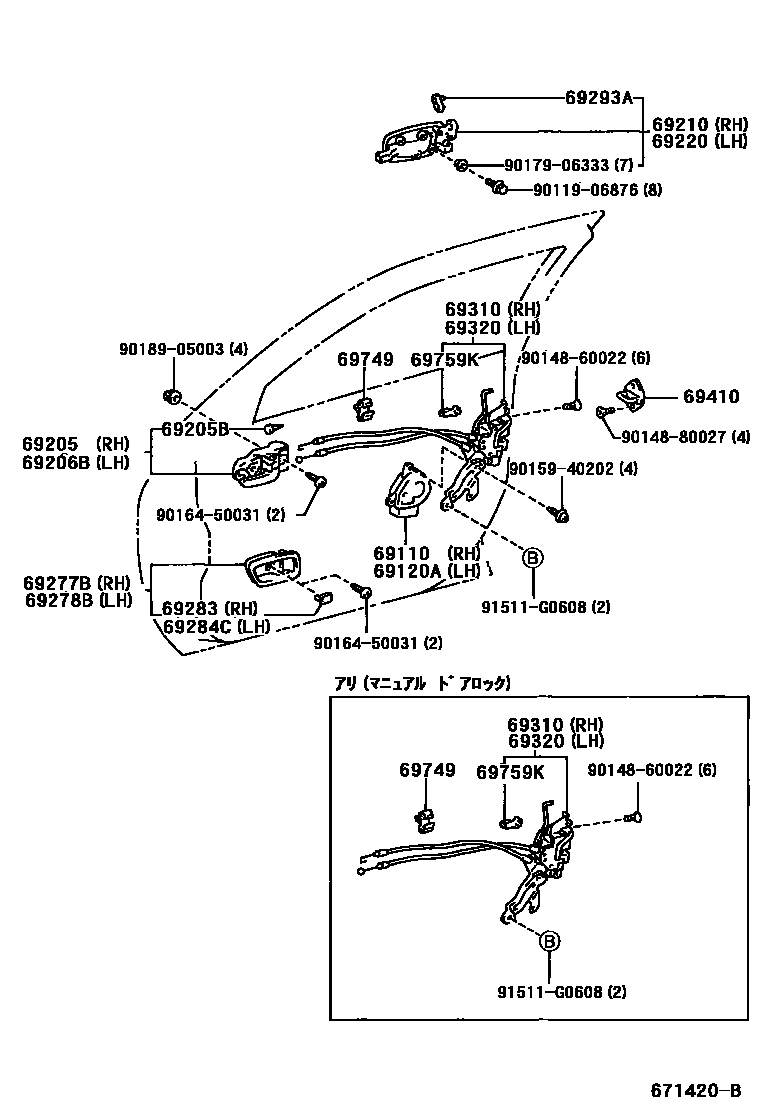

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-32020iAZV5#,SV5#,ZZV50199806

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-32020iAZV5#,SV5#,ZZV50199806

main69120-32030iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-17010-A0iAZV5#,ZZV50200208

IVORY,TRIM0#

main69205-17010-B0iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main69205-32080-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main69205-32080-G1iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iAZV5#,SV5#,ZZV50199806

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-17010-A0iAZV5#,ZZV50200208

IVORY,TRIM0#

main69206-17010-B0iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main69206-32080-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main69206-32080-G1iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32130-A0iSV5#,ZZV50199806-200004

SUPER WHITE 2,040

main69210-32130-A1iSV5#,ZZV50199812-199907

main69210-32130-B0iSV5#,ZZV50199806-200004

SILVER ME.GR.,1C5

main69210-32130-B1iSV5#,ZZV50199806-200004

SILVER ME,199

main69210-32130-C0iSV5#,ZZV50199806-200004

BLACK MC.,209

main69210-32130-D0iSV5#,ZZV50199806-200004

RED MC.,3M8

main69210-32130-G0iSV5#,ZZV50199806-200004

DK.GREEN MC.,6R4

main69210-32130-J0iSV5#,ZZV50199806-200004

BLUE M.M.,8L5

main69210-32140-A0iAZV5#,SV5#,ZZV50200004

SUPER WHITE 2,040

main69210-32140-A1iSV5#,ZZV50..A180,A200,A200G,N180,N200,N200G200004-200012

SU. WHITE PM.,051

main69210-32140-B0iAZV50,SV5#,ZZV50200004-200204

SILVER ME.GR.,1C5

main69210-32140-B1iAZV50,SV5#,ZZV50200004-200204

SILVER ME.,199

main69210-32140-B2iAZV5#,ZZV50200204

SILVER ME.,1C0

main69210-32140-D0iSV5#,ZZV50200004-200108

RED MC.,3M8

main69210-32140-E0iAZV5#,ZZV50200204

BEIGE ME.,4P7

main69210-32140-G0iAZV50,SV5#,ZZV50200004-200204

DARK GREEN MC.,6R4

main69210-32140-G1iAZV5#,ZZV50200204

JADE GREEN M.M.,6S9

main69210-32140-J0iAZV5#,SV5#,ZZV50200004

DK.BLUE M.M.,8P4

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32130-A0iSV5#,ZZV50199806-200004

SUPER WHITE 2,040

main69220-32130-A1iSV5#,ZZV50199908-200004

main69220-32130-B0iSV5#,ZZV50199806-200004

SILVER ME.GR.,1C5

main69220-32130-B1iSV5#,ZZV50199806-200004

SILVER ME,199

main69220-32130-C0iSV5#,ZZV50199806-200004

BLACK MC.,209

main69220-32130-D0iSV5#,ZZV50199806-200004

RED MC.,3M8

main69220-32130-G0iSV5#,ZZV50199806-200004

DK.GREEN MC.,6R4

main69220-32130-J0iSV5#,ZZV50199806-200004

BLUE M.M.,8L5

main69220-32140-A0iAZV5#,SV5#,ZZV50200004

SUPER WHITE 2,040

main69220-32140-A1iSV5#,ZZV50..A180,A200,A200G,N180,N200,N200G200004-200012

SU. WHITE PM.,051

main69220-32140-B0iAZV50,SV5#,ZZV50200004-200204

SILVER ME.GR.,1C5

main69220-32140-B1iAZV50,SV5#,ZZV50200004-200204

SILVER ME.,199

main69220-32140-B2iAZV5#,ZZV50200204

SILVER ME.,1C0

main69220-32140-D0iSV5#,ZZV50200004-200108

RED MC.,3M8

main69220-32140-E0iAZV5#,ZZV50200204

BEIGE ME.,4P7

main69220-32140-G0iAZV50,SV5#,ZZV50200004-200204

DARK GREEN MC.,6R4

main69220-32140-G1iAZV5#,ZZV50200204

JADE GREEN M.M.,6S9

main69220-32140-J0iAZV5#,SV5#,ZZV50200004

DK.BLUE M.M.,8P4

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-A1iAZV50,SV5#,ZZV50200004-200112

IVORY,TRIM0#

main69277-22090-B5iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main69277-30150-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main69277-30150-G2iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-A1iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200112-200208

IVORY,TRIM0#

main69278-22050-B5iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main69278-30080-A0iSV5#,ZZV50199806-200004

IVORY,TRIM0#

main69278-30080-G2iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iAZV50,SV5#,ZZV50199806-200112

IVORY,TRIM0#

main69283-30040-B8iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main69283-30040-G3iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iAZV50,SV5#,ZZV50199806-200112

IVORY,TRIM0#

main69284-30040-B8iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main69284-30040-G3iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAZV5#,SV5#,ZZV50199806

main69293-12040iAZV5#,SV5#,ZZV50199806

69310LOCK ASSY, FRONT DOOR, RH

main69310-32430iSV5#,ZZV50199806-200004

main69310-32440iSV55,ZZV50199806-200004

main69310-32450iAZV5#,SV5#,ZZV50200004

69320LOCK ASSY, FRONT DOOR, LH

main69320-32420iSV5#,ZZV50199806-200004

main69320-32430iSV55,ZZV50199806-200004

main69320-32440iAZV5#,SV5#,ZZV50200004

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iAZV5#,SV5#,ZZV50199806

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040×2iAZV5#,SV5#,ZZV50199806

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-32120×2iAZV5#,SV5#,ZZV50199806

9011906876

main90119-06876

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9016450031

main90164-50031

9017906333

main90179-06333

9018905003

main90189-05003

91511G0608

main91511-G0608

25 parts on this diagram · 1 diagram in section
