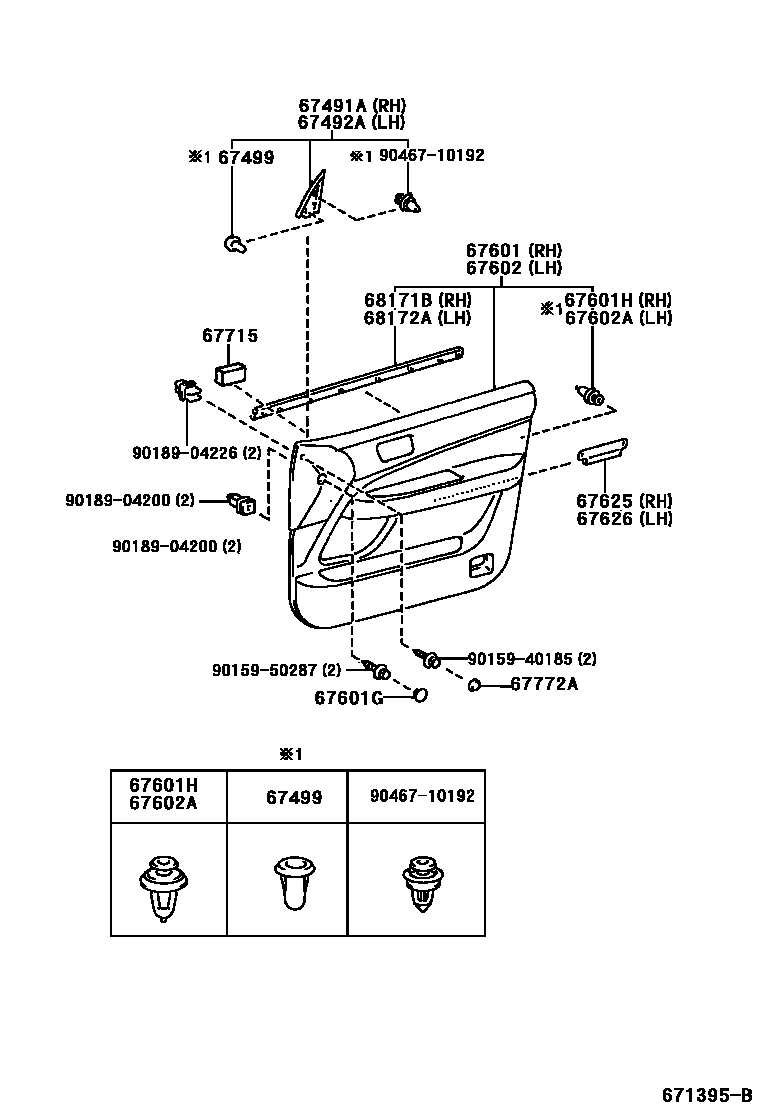

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-32150iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L199806-200112

main67491-32160iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E199806

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-32150iAZV5#,SV55,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180E,N180L,N200,N200E,N200G,N200L200112

main67492-32160iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E199806

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30020×2iAZV5#,SV5#,ZZV50199806

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-3H290-A0iSV5#,ZZV50199806-199904

main67610-3H290-G0iSV5#,ZZV50199806-199904

main67610-3H291-A0iSV5#,ZZV50199904-200004

main67610-3H291-G0iSV5#,ZZV50199904-200004

main67610-3H300-A0iSV5#,ZZV50199806-199904

main67610-3H300-G0iSV5#,ZZV50199806-199904

main67610-3H301-A0iSV5#,ZZV50199904-200004

main67610-3H301-G0iSV5#,ZZV50199904-200004

main67610-3H310-A0iSV5#199806-199904

main67610-3H310-G0iSV5#199806-199904

main67610-3H311-A0iSV5#199904-200004

main67610-3H311-A1iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67610-3H311-B0iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67610-3H311-G0iSV5#199904-200004

main67610-3H320-B1iAZV5#,SV5#,ZZV50..A180S,A200S200004

main67610-3H330-A0iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E200208

main67610-3H330-B0iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E200004

main67610-3H340-A0iAZV50,ZZV50..N180,N200200108-200112

main67610-3H340-B0iAZV5#,SV55,ZZV50..A180S,A200S200112-200208

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A1×2iAZV50,SV5#,ZZV50199806-200112

IVORY,TRIM0#

main90950-01800-B9×2iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main90950-01800-G4×2iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

67601HRETAINER, DOOR TRIM, RH

main67771-28020×3iSV5#,ZZV50199807-200108

main67771-32120×3iAZV5#,SV5#,ZZV50199807

main90467-09206×3iAZV5#,SV55,ZZV50200108

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-3H850-B1iAZV5#,SV5#,ZZV50..A180S,A200S200004

main67620-3H860-A0iAZV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N200,N200E200208

main67620-3H860-B0iAZV5#,SV5#,ZZV50..A180,A180E,A200,A200E,N180,N180E,N200,N200E200004

main67620-3H870-A0iAZV50,ZZV50..N180,N200200108-200112

main67620-3H870-B0iAZV5#,SV55,ZZV50..A180S,A200S200112-200208

main67660-32010-A0iSV5#,ZZV50199806-199904

main67660-32010-G0iSV5#,ZZV50199806-199904

main67660-32011-A0iSV5#,ZZV50199904-200004

main67660-32011-G0iSV5#,ZZV50199904-200004

main67660-32020-A0iSV5#,ZZV50199806-199904

main67660-32020-G0iSV5#,ZZV50199806-199904

main67660-32021-A0iSV5#,ZZV50199904-200004

main67660-32021-G0iSV5#,ZZV50199904-200004

main67660-32030-A0iSV5#199806-199904

main67660-32030-G0iSV5#199806-199904

main67660-32031-A0iSV5#199904-200004

main67660-32031-A1iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67660-32031-B0iAZV5#,SV5#,ZZV50..A200G,N180L,N200G,N200L200004

main67660-32031-G0iSV5#199904-200004

67602ARETAINER, DOOR TRIM, LH

main67771-28020×6iSV5#,ZZV50199806-199807

main67771-32120×3iAZV5#,SV5#,ZZV50199807

main90467-09206×3iAZV5#,SV55,ZZV50200108

67625BRACKET, FRONT DOOR TRIM, RH

main67625-44010iAZV5#,SV5#,ZZV50199806

67626BRACKET, FRONT DOOR TRIM, LH

main67625-44010iAZV5#,SV5#,ZZV50199806

67715PAD, DOOR TRIM, NO.1

main67713-32050×2iAZV5#,SV5#,ZZV50199904

sub61824-12120

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-32040-B0×2iAZV5#,SV5#,ZZV50200004

DK.GRAY,TRIM1#

main67772-32040-E0×2iAZV5#,ZZV50200208

SANDAL WOOD,TRIM0#

main67772-32040-G0×2iSV5#,ZZV50199806-200004

DK.AGATE,TRIM0#,6#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-32030iAZV5#,SV5#,ZZV50199806

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-32030iAZV5#,SV5#,ZZV50199806

9015940185

main90159-40185

9015950287

main90159-50287

9018904200

main90189-04200

9018904226

main90189-04226

9046710192

main90467-10192

19 parts on this diagram · 4 diagrams in section
