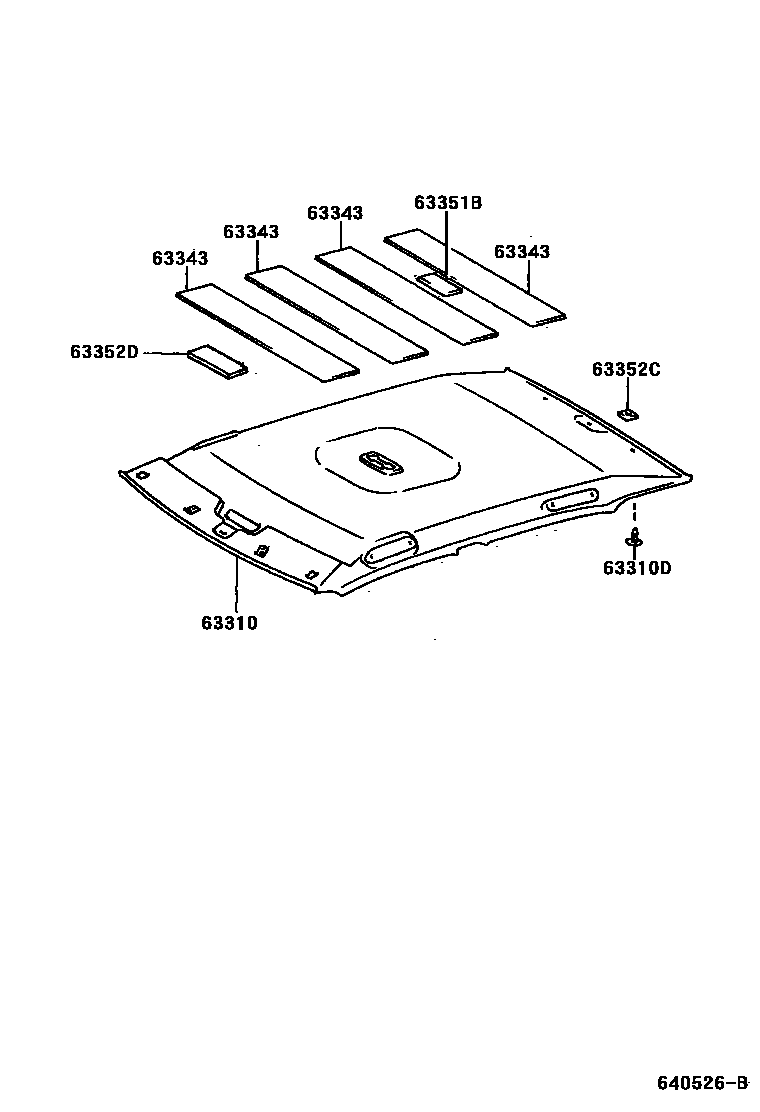

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-32510-A0iSV55,ZZV50..SED199806-200004

main63310-32510-B0iAZV55,SV55,ZZV50..N180E,N200E200004

LT. GRAY,TRIM1#

main63310-32510-G0iSV55,ZZV50..SED199806-200004

main63310-32520-A0iAZV50,SV5#,ZZV50..N180,N180L,N200,N200G,N200L199806-200112

main63310-32520-B0iAZV5#,SV5#,ZZV50..N180,N180L,N200,N200G,N200L200004

main63310-32520-G0iSV5#,ZZV50..SED199806-200004

main63310-32530-A0iSV5#,ZZV50..SED199806-200004

main63310-32530-G0iSV5#,ZZV50..SED199806-200004

main63310-32540-A0iSV55,ZZV50..WG199806-200004

IVORY,TRIM0#

main63310-32540-B0iAZV55,SV55,ZZV50..A180E,A200E200004

LT. GRAY,TRIM1#

main63310-32540-G0iSV55,ZZV50..WG199806-200004

MIST GREEN,TRIM6#

main63310-32550-A0iAZV5#,ZZV50..A180,A180S,A200,A200G,A200S200208

main63310-32550-B0iAZV5#,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004

main63310-32550-G0iSV5#,ZZV50..WG199806-200004

main63310-32560-A0iAZV50,SV55,ZZV50..A180,A200,A200G200112

main63310-32560-B0iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004

main63310-32560-G0iSV5#,ZZV50..WG199806-200004

63310DCLIP, ROOF HEADLINING

main63399-32010-A0×3iSV5#,ZZV50..SED199806-200004

main63399-32010-G0×3iSV5#,ZZV50..SED199806-200004

main90467-05021-A1×4iSV5#,ZZV50..WG199806-199810

IVORY,TRIM0#

main90467-05021-G4×2iSV5#,ZZV50..WG199806-199810

main90467-05021-P4×2iAZV50,SV5#,ZZV50..SED200004-200111

LT.GRAY,TRIM1#

main90467-05164-A0×2iAZV5#,SV55,ZZV50..WG200112

main90467-05164-B0×2iAZV5#,SV55,ZZV50..SED200111

LT.GRAY,TRIM1#

main90467-06177-A1×2iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S199810-200112

IVORY,TRIM0#

main90467-06177-B5×2iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S200004-200112

LT.GRAY,TRIM1#

main90467-06177-G0×4iSV5#,ZZV50..WG199810-200004

63343PAD, ROOF SILENCER, NO.3

main63343-32070×4iAZV5#,SV5#,ZZV50..WG199806

63351BPAD, ROOF HEADLINING

main63351-32020iAZV5#,SV5#,ZZV50..SED199806

63352CPAD, ROOF HEADLINING, END

main63352-32020iSV5#,ZZV50..SED199806-200004

63352DPAD, ROOF HEADLINING, NO.2

main63352-32010iAZV55,SV55,ZZV50..A180E,A200E,N180E,N200E200004

6 parts on this diagram · 2 diagrams in section
