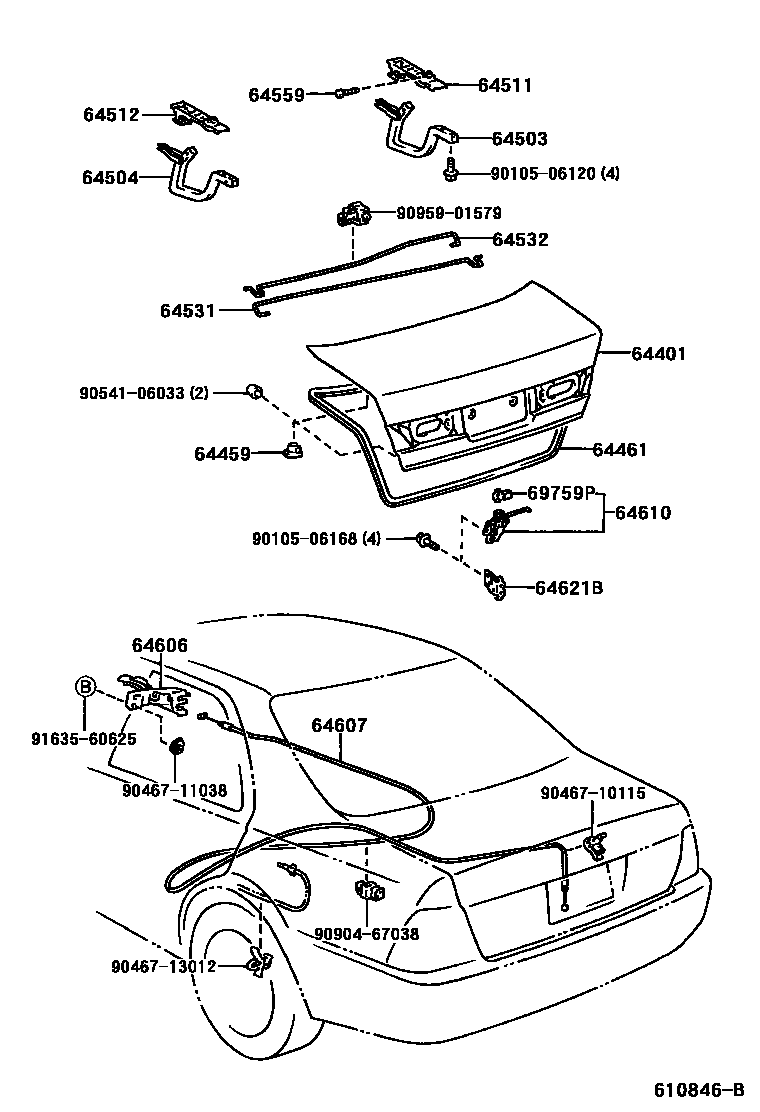

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-32730iAZV5#,SV5#,ZZV50..SED199806

main64401-32740iSV5#,ZZV50..SED199806-200004

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-32010×2iAZV5#,SV5#,ZZV50..SED199806

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-32120iAZV5#,SV5#,ZZV50..SED199806

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-32060iAZV5#,SV5#,ZZV50..SED199806

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-32060iAZV5#,SV5#,ZZV50..SED199806

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-32090iAZV5#,SV5#,ZZV50..SED199806

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-32090iAZV5#,SV5#,ZZV50..SED199806

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-32190iSV5#,ZZV50..SED199806-200004

main64531-32200iAZV5#,SV5#,ZZV50..SED199806

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-32190iSV5#,ZZV50..SED199806-200004

main64532-32200iAZV5#,SV5#,ZZV50..SED199806

64559PIN, LUGGAGE DOOR HINGE

main64559-32020×2iAZV5#,SV5#,ZZV50..SED199806

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20180iAZV5#,SV5#,ZZV50..SED199806

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-32270iAZV5#,SV5#,ZZV50..SED199806

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-32110iAZV5#,SV5#,ZZV50..SED199806

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAZV5#,SV5#,ZZV50..SED199806

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20040iAZV5#,SV5#,ZZV50..SED199806

9010506120

main90105-06120

9010506168

main90105-06168

9046710115

main90467-10115

9046711038

main90467-11038

9046713012

main90467-13012

9054106033

main90541-06033

9090467038

main90904-67038

9095901579

main90959-01579

9163560625

main91635-60625

24 parts on this diagram · 1 diagram in section
