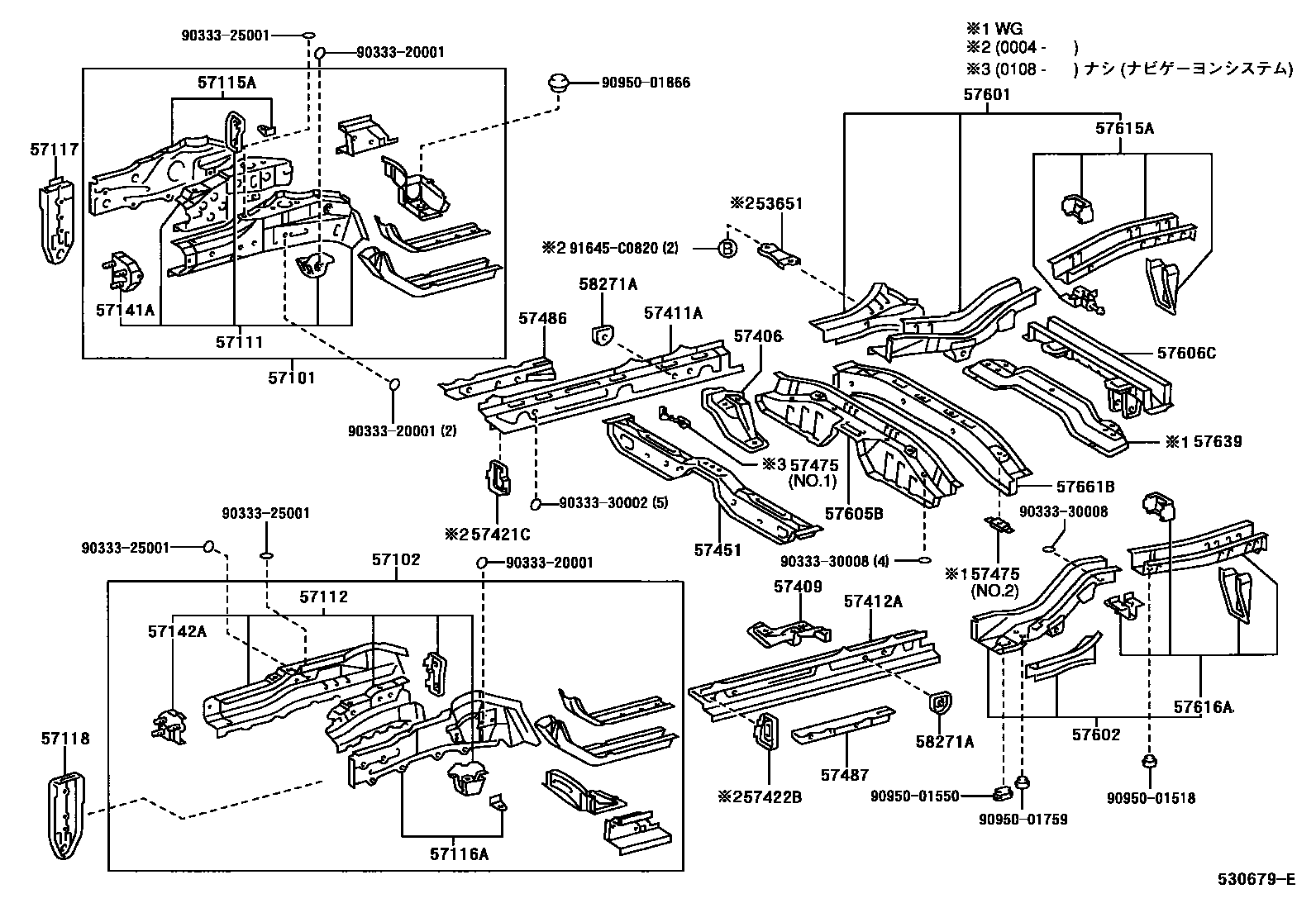

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iAZV50,SV50,ZZV50200004

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32900iSV5#199806-200004

sub90951-01001

main57101-32901iZZV50199806-200004

sub90951-01001

main57101-32902iSV5#200004-200108

main57101-32903iZZV50200004-200108

main57101-32904iAZV50,SV55200108-200109

sub90951-01001

main57101-32905iZZV50200108-200109

sub90951-01001

main57101-32906iAZV50,SV55200109-200111

main57101-32907iZZV50200109-200111

main57101-32908iAZV5#,SV55200111

main57101-32909iZZV50200111

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32900iSV5#,ZZV50199806-200004

sub52212-32021

sub90951-01002

main57102-32901iAZV50,SV5#,ZZV50200004-200109

sub52212-32021

sub90951-01002

main57102-32902iAZV50,SV55,ZZV50200109-200111

main57102-32903iAZV5#,SV55,ZZV50200111

57111MEMBER, FRONT SIDE, RH

main57111-32901iAZV50,SV5#199806-200109

sub90951-01001

main57111-32902iZZV50199806-200109

sub90951-01001

main57111-32903iAZV5#,SV55200109

main57111-32904iZZV50200109

57112MEMBER, FRONT SIDE, LH

main57112-32901iSV5#,ZZV50199806-200004

main57112-32902iAZV50,SV5#,ZZV50200004-200109

sub52212-32021

sub90951-01002

main57112-32903iAZV5#,SV55,ZZV50200109

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-32900iAZV5#,SV5#,ZZV50199806

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-32900iAZV5#,SV5#,ZZV50199806

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-32060iAZV5#,SV5#,ZZV50199806

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-32040iAZV5#,SV5#,ZZV50199806

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-32010iAZV5#,SV5#,ZZV50199806

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-32010iAZV5#,SV5#,ZZV50199806

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-32010iSV5#,ZZV50199806-200004

main57406-32020iAZV5#,SV5#,ZZV50..A180,A180E,A180S,A200,A200E,A200S,N180,N180E,N180L,N200,N200E,N200L200004

main57406-32030iAZV50,SV5#,ZZV50..A180,A180S,A200,A200G,A200S,N180,N180L,N200,N200G,N200L200004-200112

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-32010iSV5#,ZZV50199806-200004

main57409-32020iAZV5#,SV5#,ZZV50200004

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-32070iSV5#,ZZV50199806-199911

main57411-32071iAZV5#,SV5#,ZZV50199911

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-32070iSV5#,ZZV50199806-199911

main57412-32071iAZV5#,SV5#,ZZV50199911

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-32010iAZV5#,SV5#,ZZV50200004

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-32010iAZV5#,SV5#,ZZV50200004

57451MEMBER, FRONT FLOOR CROSS

main57408-32080iAZV55200204

main57451-32070iSV5#,ZZV50199806-200101

main57451-32071iAZV50,SV5#,ZZV50200101

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-20070iAZV5#,SV55,ZZV50200108

main57475-32010×4iAZV5#,SV5#,ZZV50..WG199806

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-32040iSV5#,ZZV50199806-200004

main57486-32050iSV5#,ZZV50200004-200108

main57486-32060iAZV5#,SV55,ZZV50200108

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-32030iSV5#,ZZV50199806-200004

main57487-32050iAZV5#,SV5#,ZZV50200004

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32290iSV50,ZZV50199806-200004

main57601-32300iSV55199806-200004

main57601-32320iSV50,ZZV50200004-200108

main57601-32340iSV55200004-200108

main57601-32350iAZV50,ZZV50..SED200108

main57601-32360iAZV55,SV55..SED200108

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32290iSV50,ZZV50199806-200004

main57602-32300iSV55199806-200004

main57602-32320iAZV50,ZZV50..WG200108

main57602-32340iAZV55,SV55..WG200108

main57602-32350iAZV50,ZZV50..SED200108

main57602-32360iAZV55,SV55..SED200108

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-32100iAZV50,SV50,ZZV50199806

sub57605-32101

main57605-32110iAZV55,SV55199806

sub57605-32111

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-32120iAZV50,SV50,ZZV50..SED199806

main57606-32130iAZV55,SV55..SED199806

main57606-32140iAZV50,SV50,ZZV50..WG199806

main57606-32150iAZV55,SV55..WG199806

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-32911iSV50,ZZV50199806-199911

main57615-32912iSV55199806-199911

main57615-32913iAZV50,ZZV50;AZV55,SV55..WG200108

main57615-32914iAZV55,SV55..SED200108

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-32915iSV50,ZZV50199806-199911

main57616-32916iSV55199806-199911

main57616-32917iSV55..WG;AZV50,ZZV50..A180,A180E,A180S,A200,A200G,A200S,N180,N180E,N200,N200G,N200L200108

sub57616-32923

main57616-32918iSV55199911-200108

sub57616-32925

57639MEMBER, REAR FLOOR, CENTER NO.2

main57639-32010iAZV5#,SV5#,ZZV50..WG199806

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-32010iSV5#,ZZV50..SED199806-199911

main57661-32011iAZV5#,SV5#,ZZV50..SED199911-200209

main57661-32012iAZV5#,ZZV50..SED200209

main58202-32010iAZV5#,SV5#,ZZV50..WG199806-200209

main58202-32011iAZV5#,ZZV50..WG200209

58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

main58271-32010×2iAZV5#,SV5#,ZZV50199806

9033320001

main90333-20001

9033325001

main90333-25001

9033330002

main90333-30002

9033330008

main90333-30008

9095001518

main90950-01518

9095001550

main90950-01550

9095001759

main90950-01759

9095001866

main90950-01866

91645C0820

main91645-C0820

39 parts on this diagram · 4 diagrams in section
