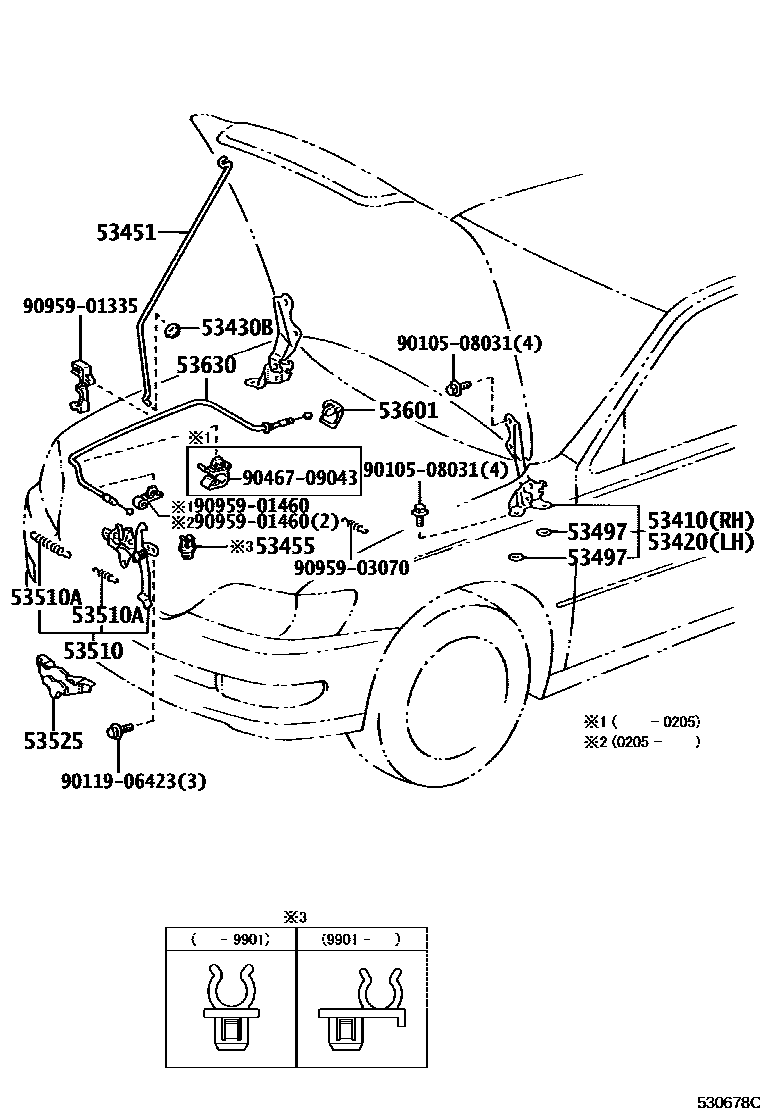

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32110iSV5#,ZZV50199806-199809

main53410-32120iAZV5#,SV5#,ZZV50199809

53420HINGE ASSY, HOOD, LH

main53420-32110iSV5#,ZZV50199806-199809

main53420-32120iAZV5#,SV5#,ZZV50199809

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15027iAZV5#,SV5#,ZZV50199806

53451ROD, HOOD SUPPORT

main53451-32070iSV5#,ZZV50199806-199901

main53451-32071iAZV5#,SV5#,ZZV50199901

53455CLAMP, HOOD SUPPORT ROD

main53455-32020iAZV5#,SV5#,ZZV50199901

main53455-33011iSV5#,ZZV50199806-199901

53497PAD, HOOD HINGE, NO.1

main53497-12050×4iAZV5#,SV5#,ZZV50199806

main53497-20070×4iAZV5#,SV5#,ZZV50200004

53510LOCK ASSY, HOOD

main53510-32160iAZV5#,SV5#,ZZV50199806

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iAZV5#,SV5#,ZZV50199806

main90506-18080iAZV5#,SV5#,ZZV50199806

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-32040iAZV5#,SV5#,ZZV50199806

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-A0iAZV5#,SV55,ZZV50..A180,A180E,A200,A200E,A200G,N180,N180E,N180L,N200,N200E,N200G,N200L200112-200208

IVORY,TRIM0#

main53611-12040-B4iAZV5#,SV5#,ZZV50200004

STONE,TRIM1#

main53611-12040-G0iSV5#,ZZV50199806-200004

MIST GREEN,TRIM6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32120iSV5#,ZZV50199806-199908

main53630-32130iAZV5#,SV5#,ZZV50199908

9010508031

main90105-08031

9011906423

main90119-06423

9046709043

main90467-09043

9095901335

main90959-01335

9095901460

main90959-01460

9095903070

main90959-03070

17 parts on this diagram · 1 diagram in section
