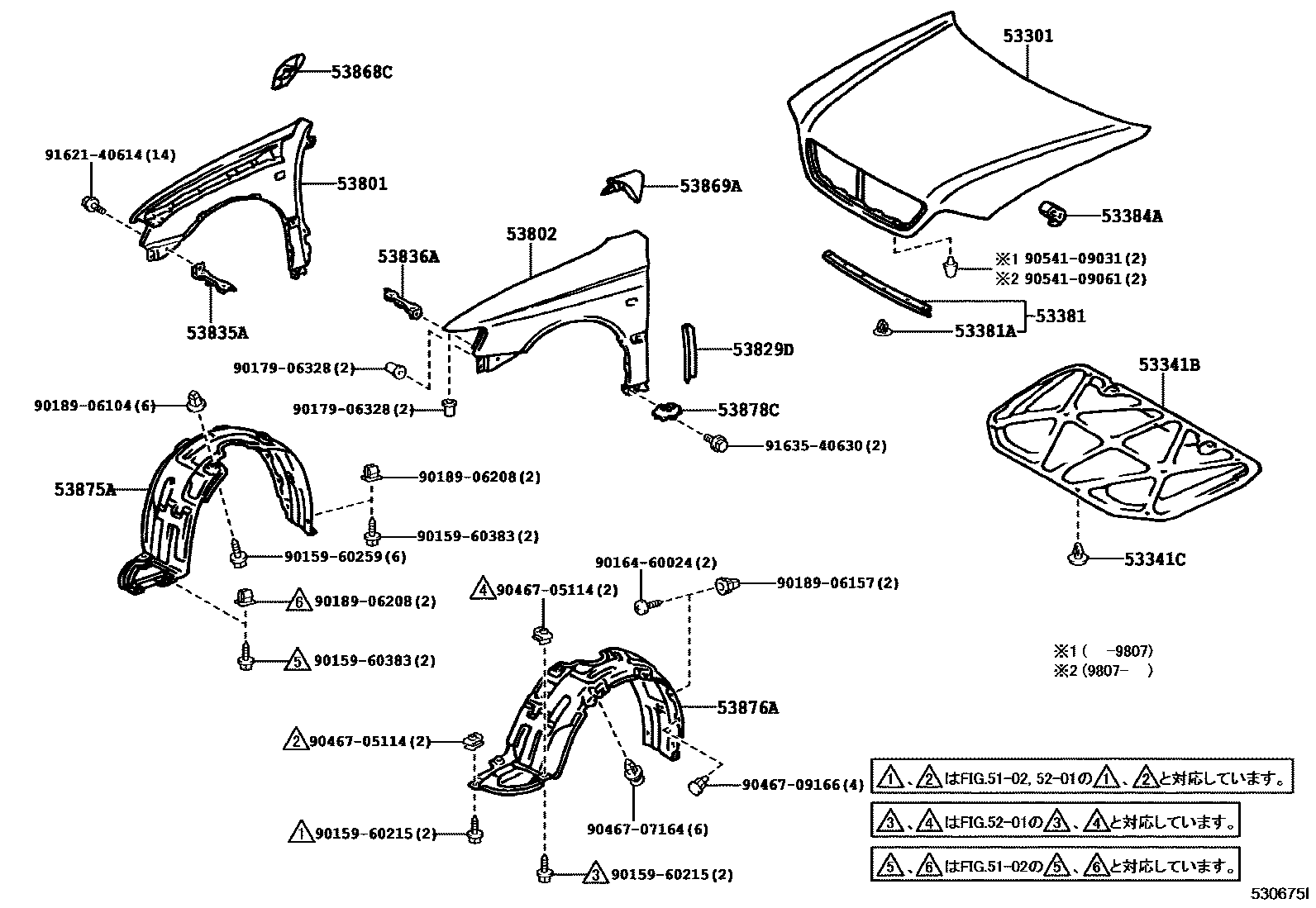

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-32170iAZV5#,SV5#,ZZV50199806

53341BINSULATOR, HOOD

main53341-32080iSV5#199806-200004

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×8iSV5#199806-200004

main90467-09050×8iAZV5#,ZZV50200304

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-32060iAZV5#,SV5#,ZZV50199806

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iAZV5#,SV5#,ZZV50199806

53384ABUMPER, FENDER TO HOOD

main53384-32020×2iAZV5#,SV5#,ZZV50199806

53801FENDER SUB-ASSY, FRONT RH

main53811-32300iAZV5#,SV5#,ZZV50199806

53802FENDER SUB-ASSY, FRONT LH

main53812-32290iAZV5#,SV5#,ZZV50199806

53829DPROTECTOR, FRONT FENDER, LOWER

main53829-32020×2iSV5#,ZZV50199806-199810

main53863-32010×2iAZV5#,SV5#,ZZV50199810

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-32060iAZV5#,SV5#,ZZV50199806

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-32020iAZV5#,SV5#,ZZV50199806

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-32010iAZV5#,SV5#,ZZV50199806

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-32010iAZV5#,SV5#,ZZV50199806

53875ALINER, FRONT FENDER, RH

main53875-32080iAZV5#,SV5#,ZZV50199806

53876ALINER, FRONT FENDER, LH

main53876-32080iAZV5#,SV5#,ZZV50199806

53878CSPACER, FRONT FENDER

main53878-32010×2iAZV5#,SV5#,ZZV50199806

9015960215

main90159-60215

9015960259

main90159-60259

9015960383

main90159-60383

9016460024

main90164-60024

9017906328

main90179-06328

9018906104

main90189-06104

9018906157

main90189-06157

9018906208

main90189-06208

9046705114

main90467-05114

9046707164

main90467-07164

9046709166

main90467-09166

9054109031

main90541-09031

9054109061

main90541-09061

9162140614

main91621-40614

9163540630

main91635-40630

31 parts on this diagram · 1 diagram in section
